Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANTUI
-
Model Number:
-
DH13-B2
-
Dimension(Long * Breadth * High):
-
4224*3380*3407mm
-
Engine Model:
-
WP6G140E22
-
Full tank:
-
238L
-
Digging depth:
-
715mm
-
Ground pressure:
-
39.9kPa
Quick Details
-
Machine Weight:
-
13400 KG
-
Dozing Capacity:
-
6.5m³
-
Marketing Type:
-
New Product
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANTUI
-
Model Number:
-
DH13-B2
-
Dimension(Long * Breadth * High):
-
4224*3380*3407mm
-
Engine Model:
-
WP6G140E22
-
Full tank:
-
238L
-
Digging depth:
-
715mm
-
Ground pressure:
-
39.9kPa

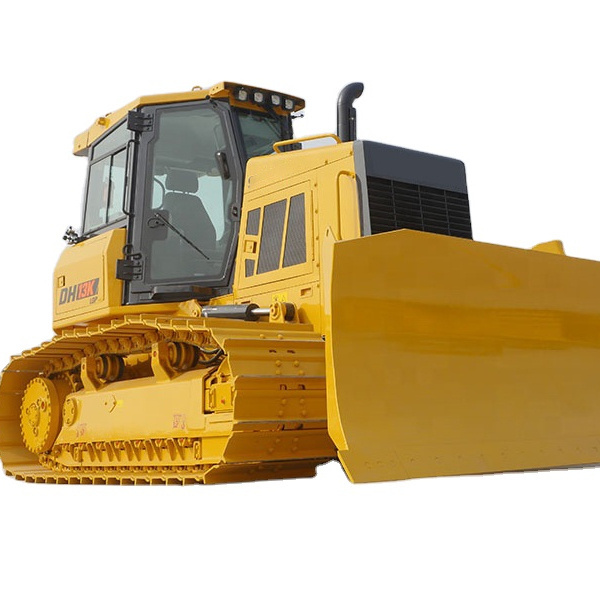

Bulldozer DH13-B2
Contact Way
Product Overview
● The installed
WP6G140E22
electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost. ● The rated power reaches
105kW
, featuring high torque reserve coefficient.
● The curves of drive system and engine are perfectly matched to achieve more extensive
high-efficiency zone and higher transmission efficiency.
high-efficiency zone and higher transmission efficiency.
● Shantui’s self-made drive system features stable performance and reliable quality and has been long proved by the market.
● The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.
● The electronic control hand and foot accelerators guarantee more accurate and comfortable operations.
● Shantui’s stable and reliable chassis system is applicable to diversified severe working conditions.
● The product features long ground length, high ground clearance, stable driving, and good trafficability.
Product Paramenters
|
Parameter name
|
DH13 B2 XL
|
DH13 B2 LGP
|
|
Performance parameters
|
|
|
|
Operating weight (Kg)
|
13400
|
13920
|
|
Ground pressure (kPa)
|
39.9
|
33.2/30.6
|
|
Engine
|
|
|
|
Engine model
|
Weichai WP6G140E22
|
Weichai WP6G140E22
|
|
Rated power/rated speed (kW/rpm)
|
105/2200
|
105/2200
|
|
Overall dimensions
|
|
|
|
Overall dimensions of machine (mm)
|
4924*3380*3047
|
4924*3380*3047
|
|
Driving performance
|
|
|
|
Forward speed (km/h)
|
0～10
|
0～10
|
|
Reversing speed (km/h)
|
0～10
|
0～10
|
|
Chassis System
|
|
|
|
Center distance of track (mm)
|
1780
|
2000
|
|
Width of track shoes (mm)
|
560
|
700/760
|
|
Ground length（mm）
|
2270
|
2270
|
|
Tank capacity
|
|
|
|
Fuel tank (L)
|
238
|
238
|
|
Working device
|
|
|
|
Blade type
|
VPAT
|
VPAT
|
|
Ripper type
|
Three-shanks
|
Three-shanks
|
