working time.
2. The design is reasonable, easy to use and maintain, and it only takes 5 minutes to replace the tool.
3. The design of thickened and straightened frame is not easy to deform.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
BBT
-
Voltage:
-
380V
-
Power:
-
7500, 7.5kw
-
Dimension(L*W*H):
-
1600*1550*1500MM
-
Weight:
-
1300
-
Product name:
-
Grain Anilox Thread Rolling Machine
-
Keyword:
-
Automatic Screw Making Machine
-
Bending material:
-
Thread Rolling Machine For Bolt Thread
-
Type:
-
Screw High Speed Screw Making Machine
-
Machining diameter:
-
5-52MM
-
Model:
-
Automatic Hydraulic Thread Rolling Machine
-
Operation system:
-
Hydraulic Thread Rolling Machine Cnc Straight
-
Color:
-
customizable
-
Item:
-
Machine Hydraulic Rebar Thread Rolling Machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Application:
-
Thread Rolling Machine
-
Marketing Type:
-
New Product 2024
-
Brand Name:
-
BBT
-
Voltage:
-
380V
-
Power:
-
7500, 7.5kw
-
Dimension(L*W*H):
-
1600*1550*1500MM
-
Weight:
-
1300
-
Product name:
-
Grain Anilox Thread Rolling Machine
-
Keyword:
-
Automatic Screw Making Machine
-
Bending material:
-
Thread Rolling Machine For Bolt Thread
-
Type:
-
Screw High Speed Screw Making Machine
-
Machining diameter:
-
5-52MM
-
Model:
-
Automatic Hydraulic Thread Rolling Machine
-
Operation system:
-
Hydraulic Thread Rolling Machine Cnc Straight
-
Color:
-
customizable
-
Item:
-
Machine Hydraulic Rebar Thread Rolling Machine
Wholesale Steel Bolt Machinery, Automatic Hydraulic Thread Rolling Machine, Cnc Straight Grain Anilox Thread Rolling Machine
Product Overview

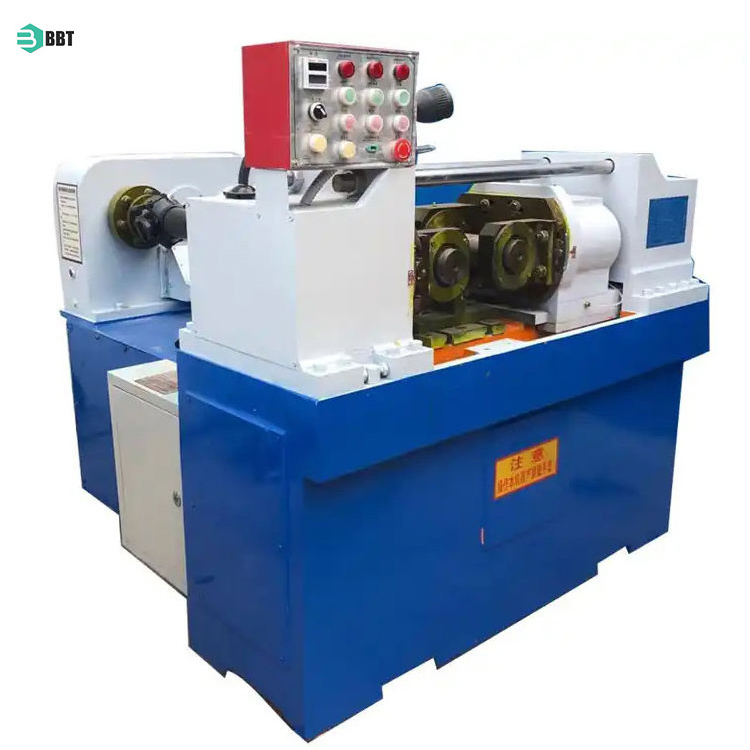

Hydraulic thread rolling machine
The steel bar thread rolling machine is mainly used for the straight thread head with reinforcement in construction projects, and is the key equipment for connecting steel bars. In addition, it is suitable for rolling threads on round bars, anchors, or other equivalent materials.
Our Advantages
1. High configuration of pure copper wire motor, more energetic output, good heat dissipation, long
working time.
2. The design is reasonable, easy to use and maintain, and it only takes 5 minutes to replace the tool.
3. The design of thickened and straightened frame is not easy to deform.
working time.
2. The design is reasonable, easy to use and maintain, and it only takes 5 minutes to replace the tool.
3. The design of thickened and straightened frame is not easy to deform.
Product Paramenters
|
Model型号
|
185
|
200
|
280
|
|
Maximum rolling pressure
最大滚压力 |
180KN
|
220KN
|
360KN
|
|
Maximum processing diameter
最大加工直径
|
5-52MM
|
5-64MM
|
10-80MM
|
|
Pitch range
螺距范围 |
0.5-6MM
|
0.5-8MM
|
1-10MM
|
|
Thread roller bore diameter
滚丝轮孔径 |
54MM
|
75MM
|
75MM
|
|
Maximum width of thread rolling wheel
滚丝轮最大宽度 |
50-100MM
|
50-150MM
|
50-150MM
|
|
Maximum diameter of thread rolling wheels
滚丝轮最大直径 |
120-170MM
|
170-210MM
|
170-220MM
|
|
Spindle center distance
主轴中心距 |
170-260MM
|
170-300MM
|
170-330MM
|
|
Number of spindle revolutions
主轴转数
|
37/46/63/79/MIN
|
16/26/38/55/90/MIN
|
0-50/MIN
|
|
Hydraulic power
滚压功率 |
7.5KW
|
11KW
|
15KW
|
|
Hydraulic power
滚压功率 |
3.0KW
|
3.0KW
|
5.5KW
|
|
Cooling power
冷却功率 |
0.12KW
|
0.09KW
|
0.12KW
|
|
Dimensions
外形尺寸 |
1600*1550*1500MM
|
1650*1600*1550MM
|
1850*1600*1550MM
|
Products Description
