Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
LAIEN MACHINE
-
Model Number:
-
LE
-
Weight (KG):
-
22000
-
Power (kW):
-
22
-
Name:
-
Full automatic Gabion stone cage box machine
-
Galvanized wire diameter:
-
1.8-3.5mm
-
Max net breadth:
-
4300mm or 5300mm
-
No of twisting:
-
3 or 5
-
Twisting:
-
165/195/225/252mesh/min
-
Main shaft ratary speed:
-
25
-
Motor Power:
-
22kw
-
Machine Weight:
-
22T
-
Mesh hole size:
-
60x80mm,80x100mm,100x120mm,120x150mm
-
Material:
-
Quality gabion wire mesh netting machine
Quick Details
-
Wire Diameter (mm):
-
1.8 - 3.8 mm
-
Marketing Type:
-
New Product 2024
-
Production Capacity:
-
195-255m/h
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
LAIEN MACHINE
-
Model Number:
-
LE
-
Weight (KG):
-
22000
-
Power (kW):
-
22
-
Name:
-
Full automatic Gabion stone cage box machine
-
Galvanized wire diameter:
-
1.8-3.5mm
-
Max net breadth:
-
4300mm or 5300mm
-
No of twisting:
-
3 or 5
-
Twisting:
-
165/195/225/252mesh/min
-
Main shaft ratary speed:
-
25
-
Motor Power:
-
22kw
-
Machine Weight:
-
22T
-
Mesh hole size:
-
60x80mm,80x100mm,100x120mm,120x150mm
-
Material:
-
Quality gabion wire mesh netting machine

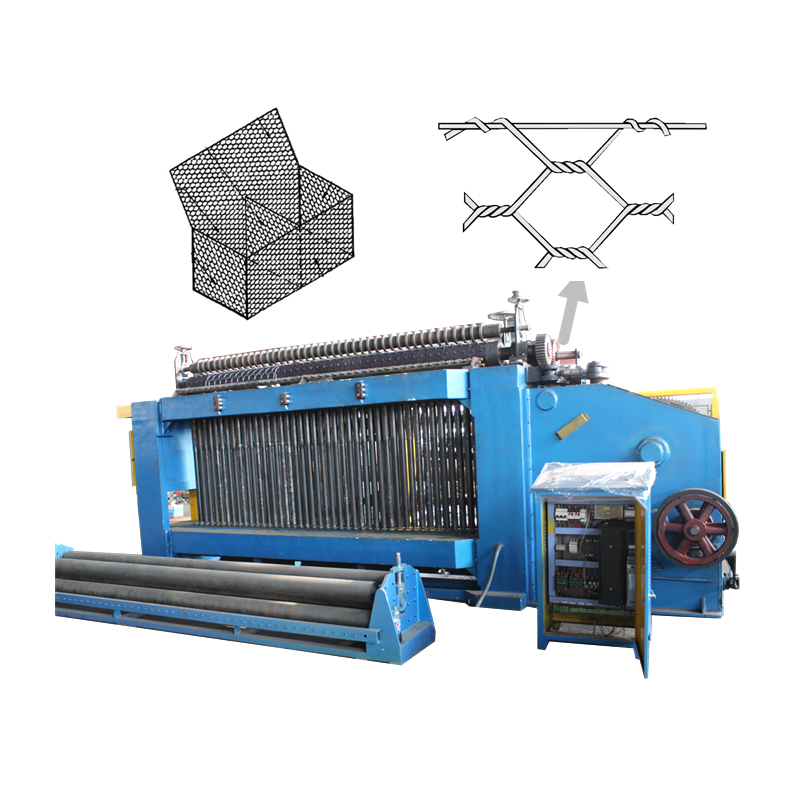

FULL AUTOMATIC GALVANIZED GABION MESH MAKING MACHINE
Gabion mesh machine, also called heavy duty hexagonal wire mesh machine or gabion basket machine, Stone cage machine, Gabion box machine, is to produce the hexagonal wire mesh for reinforcement stone box
| TYPE | Mesh Size (mm) | Max.Width (mm) | Wire Diameter (mm) | Motor Power (kW) | Theoretical Speed (m/H) | Dimension (mm) | Weight (kg) |
| WL06008003 | 60x80 | 3300 | 1.6-3.0 | 15 | 165 | 6200x1400x2400 | 15000 |
| WL08010003 | 80x100 | 3300 | 1.6-3.0 | 15 | 195 | 6200x1400x2400 | 15000 |
| WL10012003 | 100x120 | 3300 | 1.6-3.2 | 15 | 225 | 6200x1400x2400 | 15000 |
| WL12015003 | 120x150 |
3300 |
1.6-3.5 | 15 | 255 | 6200x1400x2400 | 15000 |
| WL06008004 | 60x80 | 4500 | 1.6-3.0 | 22 | 165 | 7200x1400x2400 | 16500 |
| WL08010004 | 80x100 | 4500 | 1.6-3.0 | 22 | 195 | 7200x1400x2400 | 16500 |
| WL10012004 | 100x120 | 4500 | 1.6-3.2 | 22 | 225 | 7200x1400x2400 | 16500 |
| WL12015004 | 120x150 | 4500 | 1.6-3.5 | 22 | 255 | 7200x1400x2400 | 16500 |
| WL06008005 | 60x80 | 5300 | 1.6-3.0 | 30 | 165 | 8200x1400x2400 | 18500 |
| WL08010005 | 80x100 | 5300 | 1.6-3.0 | 30 | 195 | 8200x1400x2400 | 18500 |
| WL10012005 | 100x120 | 5300 | 1.6-3.2 | 30 | 225 | 8200x1400x2400 | 18500 |
| WL12015005 | 120x150 | 5300 | 1.6-3.5 | 30 | 255 | 8200x1400x2400 | 18500 |
1. I t has the function of frequency control of motor speed according to different of wire diameter.
2. It has buffer function when speed increase or decrease in very short time.
3. It can count output every day or every year
4. It can save about 30% energy.
The product has widely purpose, with its good corrosion resistance and oxidation resistance, serves well as strengthen, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries
