Product name:
-
10mA/5V Fluxgate Sensor
-
Type:
-
Customized
-
Application:
-
Power control
-
input current:
-
20mA
-
linearity:
-
±0.5 ( T=25℃)%
-
Output signal:
-
analog
-
Working temperature:
-
-20 - +80
-
Current Drain:
-
≤18mA
-
Precision:
-
±1.0%
-
best price:
-
kindly contact us

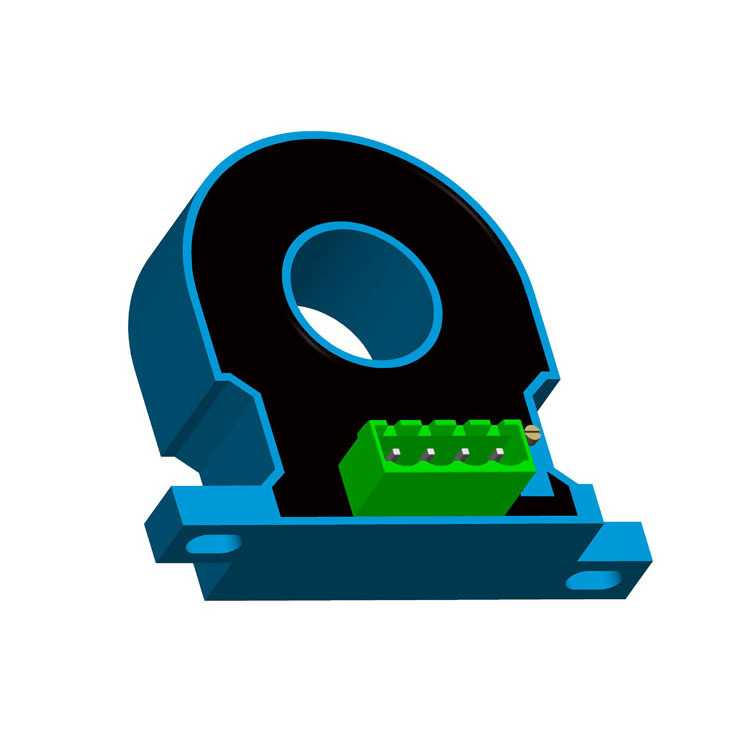

best price high precision DC charging pile leakage current 20mA/5V Fluxgate Sensor
Description:
This is new type of Fluxgate Current Sensor; it’s based on the principle of magnetic modulation. It can be
used for measurement of DC leakage current, provides security for DC operating systems
Primary and secondary isolation, pressure and safety.
Used in dual power supply systems, the power supply and output voltage can be customized according to customer needs.
Feature:
Various type for choose and OEM
Beautiful and small weight . Easy to install.
Flame retardan (UL94- V0). Environmental protection(EU RoHS)
Advantage:
High precision, Low loss during insertion.
Fast reaction, Strong overload capability
Good linearity, Strong anti-interference ability
low null offset, low temperature drift
Use:
Communication base station equipment
New energy equipment, DC charging pile
Communication power, Switching power
Welding machine power supply, Instrumentation
Medical equipment, Rail transit
Industrial measurement, Power control
Specification:
|
Model Parameter |
FCVD-63S02 |
FCVD-63S03 |
FCVD-63S04 |
FCVD-63S05 |
FCVD-63S06 |
Unit |
||
|
Ipn |
Rated input current |
10 |
20 |
30 |
50 |
100 |
500 |
mA |
|
Ip |
Measuring current range |
20 |
40 |
60 |
100 |
200 |
1000 |
mA |
|
Vsn |
Rated output voltage |
5 |
VDC |
|||||
|
Rm |
Load Resistance |
≥10kΩ |
kΩ |
|||||
|
Vc |
Power Voltage |
±12~±15 |
V |
|||||
|
Ic |
Current consumption |
≤18 |
mA |
|||||
|
Vd |
Insulation withstand voltage |
3 (50Hz/min) |
kV |
|||||
|
Vo |
Null offset voltage |
≤50 |
mV |
|||||
|
VoT |
Offset voltage temperature drift |
≤±1 |
mV/℃ |
|||||
|
εl |
linearity |
±0.5 ( T=25℃) |
% |
|||||
|
X |
% |
|||||||
|
Tr |
Reaction timer |
≤20 |
µS |
|||||
|
Ta |
Working temperature |
-20~+80 |
℃ |
|||||
|
Ts |
Storage temperature |
-40~+85 |
℃ |
|||||
Size:
Operation diagram
:
Instructions for use:
1. Connect the current according to the calibration direction of the circuit diagram, pay attention to the direction of current.
2. Connect the wire according to the function pin definition of the calibration in the structure diagram.
