Quick Details
-
Model Number:
-
TP03053
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
0.75hp
-
Cable Length:
-
1.2m
-
Power:
-
600w
-
Usage:
-
Water
-
Pressure:
-
High Pressure
-
Theory:
-
Jet Pump
-
Certificate:
-
CE, GS, EMC, RoHS
-
Color:
-
Yellow, Red, Blue, Green
-
Quality System:
-
ISO9001:2000
-
OEM Service:
-
Accepted
-
Thermal Protector:
-
Yes
-
Material:
-
Plastic
-
Warranty:
-
12 Months
Quick Details
-
Application:
-
Irrigation and Agriculture, Water Distribution
-
Voltage:
-
110v-240v
-
Brand Name:
-
TRUPOW or OEM
-
Model Number:
-
TP03053
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
0.75hp
-
Cable Length:
-
1.2m
-
Power:
-
600w
-
Usage:
-
Water
-
Pressure:
-
High Pressure
-
Theory:
-
Jet Pump
-
Certificate:
-
CE, GS, EMC, RoHS
-
Color:
-
Yellow, Red, Blue, Green
-
Quality System:
-
ISO9001:2000
-
OEM Service:
-
Accepted
-
Thermal Protector:
-
Yes
-
Material:
-
Plastic
-
Warranty:
-
12 Months

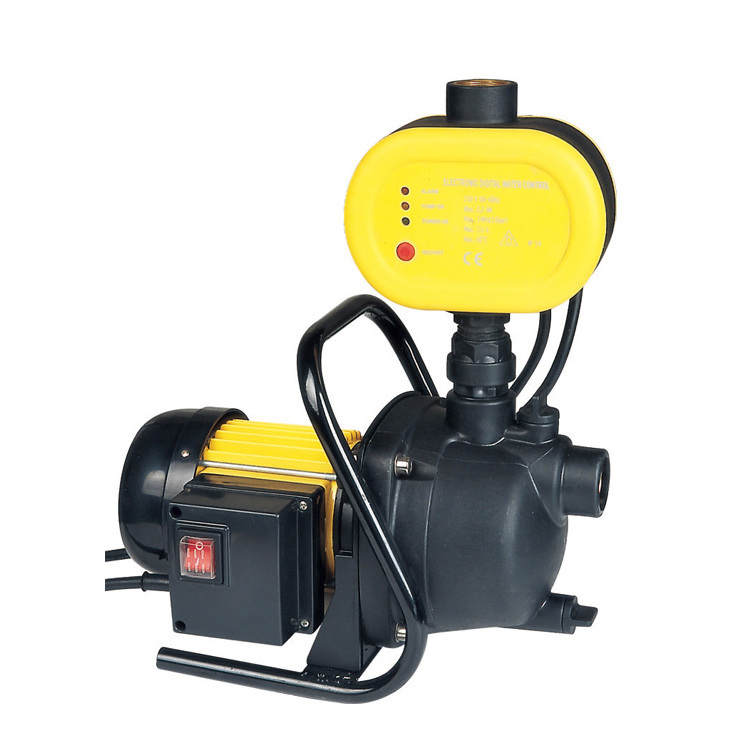

600w Powerful Automatic Garden Pressure Water Pump With Electronic Switch IPX4
I t is ideal for conveyance of clean water. They are particularly suitable for domestic applications such as supply water from well, pool, etc, the automatic distribution of water by surge tanks and pressure switch ,gardening, and increasing of water pressure.
This pump shall not be used to convey abrasive materials, silt materials, slurry, or other viscous materials, and shall not be suitable for long time continuous operation (e.g. cyclic running in filter of swimming pond or act as industrial equipment).
Features
Garden Pump With Pressure Controller
Build-in overload motor protector with automatic reset
With auto digital electronic switch
Protection IPX4
Pump Head: PP
Impeller: PP/brass if request
Shaft with rotor: 45# Carbon Steel/Stainless steel if request
Liquid temperature: Up to 35°C
Dry-running of pump shall be prohibited.
Specifications
|
MODEL
|
POWER
(W)
|
MAX HEAD
(M)
|
MAX FLOW
(L/H)
|
MAX SUC. DEPTH
(M)
|
MAX PRE.
(BAR)
|
CABLE AND LENGTH
(M)
|
QTY/20”CTN
(PC)
|
|
TP03053
|
600
|
35
|
2800
|
7
|
2/3
|
H07RN-F3G1.0mm2X1.2m
|
1050
|
|
TP03054
|
800
|
40
|
3200
|
8
|
2/3
|
H07RN-F3G1.0mm2X1.2m
|
1050
|
|
TP03055
|
1000
|
44
|
3500
|
8
|
2/3
|
H07RN-F3G1.0mm2X1.2m
|
1050
|
|
TP03056
|
1200
|
48
|
3800
|
8
|
2.5/4
|
H07RN-F3G1.0mm2X1.2m
|
1050
|
