Quick Details
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
6500x3200x3200
-
Weight:
-
5500 kg, 5500KG
-
Function:
-
multi- usage in many field
-
Dimension:
-
5600*3200*2100mm
-
Feature:
-
Easy Operation
-
Quality:
-
relible
-
Advantage:
-
Higher Efficiency
-
Number of hammers:
-
64
-
Hammers thickness:
-
9.53mm
-
Tub width at flare:
-
3.2m
Quick Details
-
Max. Capacity:
-
15 ton/h
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
gengze
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
6500x3200x3200
-
Weight:
-
5500 kg, 5500KG
-
Function:
-
multi- usage in many field
-
Dimension:
-
5600*3200*2100mm
-
Feature:
-
Easy Operation
-
Quality:
-
relible
-
Advantage:
-
Higher Efficiency
-
Number of hammers:
-
64
-
Hammers thickness:
-
9.53mm
-
Tub width at flare:
-
3.2m
|

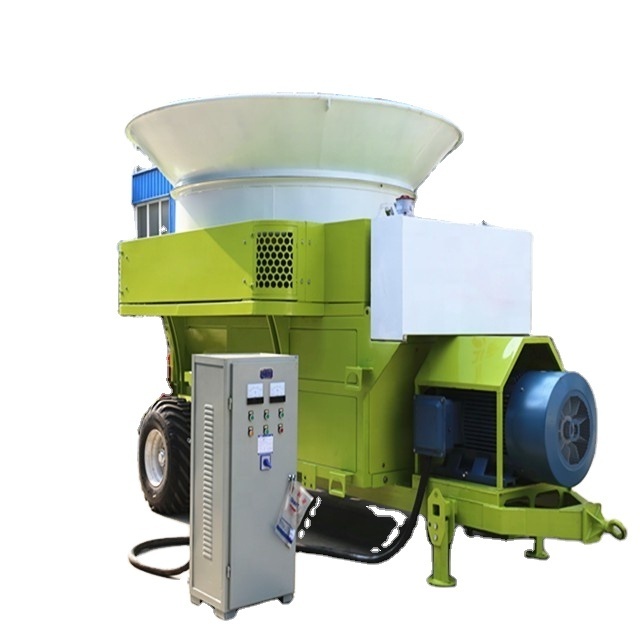

Part name
|
Technical parameters
|
|
Rotor pulverizer
|
Fly hammer: wear-resisting alloy material; Fly hammer shaft: high strength alloy steel;Bearing: SKF
|
|
combined power
|
driven by tracotr:90-180 HP; motor driven:90-150 kw.
|
|
Matching tractor power output shaft speed
|
1000/ r-min
|
|
Screen mesh
|
thickness:6 mm; diameter of hole :6 mm-125 mm.
|
|
Drum
|
thickness:3 mm; Transmission mode: chain type; Drive mode: hydraulic motor drive.
|
|
Screw pusher
|
Type: bicolumn symmetric; Transmission mode: chain type; Drive mode: hydraulic motor drive .
|
|
discharging conveyor
|
Type: folding hydraulic drive; Maximum lifting height: 4.19 m; Belt: high quality multi - layer bonding high strength; Maximum lifting height: 4.19 m.
|
|
grindalbe material
|
Corn kernels (high water content), corn cobs, Forage, straw, yanmai grass, alfalfa, corn straw, rape stem, wheat straw, weeds and so on.
|
|
grinded length
|
3-20 cm
|
|
Shattered type
|
Garden bale, square bale, loose pasture
|
|
Transport size
|
6500x3200x3200 mm
|
We, Dalian GENGZE agricultural equipment manufacturing Co.,Ltd, founded in 2017, lie in Dalian city, PR .China. We have got a total investment of 50 million RMB with a total area of 40,000squre meters. We are industrial and trading integrated company that specializes in manufacturing agricultural and husbandry equipment. We have got the well- established team of oversea sale and experienced installation, which have gained a high evaluation. we also have got independent import and export license.
We have decided to introduce the advanced technology of treating livestock's manure and grinding hay and straw from Europe, cooperate with a famous agricultural equipment manufacturer in Europe and supply the ready products to husbandry and dairy industry in China' domestic market. We are trying our best to explore international market by more competitive price with higher working performance.
we warmly welcome all friends to visit our working plant and we firmly believe that the common benefits in the busIness would be found, if the cooperation effected.
