MT0 MT1 MT2 Live Center Morse Taper MTB Thread Machine Tools CNC Lathe Rotary Center Turning center Accessories top thimble mohs

MT0 MT1 MT2 Live Center Morse Taper MTB Thread Machine Tools CNC Lathe Rotary Center Turning center Accessories top thimble mohs

FOB Reference Price: Get Latest Price

≥1 Pieces

US $7.82

≥50 Pieces

US $7.36

≥100 Pieces

US $6.95

≥1000 Pieces

US $6.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Core Components:: Tool holder

Product name:: MT2 MT3 MT4 MT5 center top

Type:: Top center

Material:: Alloy Tool Steel

Specification:: MT2 MT3 MT4 MT5

Hardness:: HRC55-60°

MT2 working load/speed:: 160kg-60kg (100-3300rpm/r)

MT3 working load/speed:: 280kg-128kg (100-3000rpm/r)

MT4 working load/speed:: 520kg-200kg (100-2800rpm/r)

Quick Details

Place of Origin:: Guangdong, China

Weight (KG):: 0.65

Brand Name:: MAIAM

Core Components:: Tool holder

Product name:: MT2 MT3 MT4 MT5 center top

Type:: Top center

Material:: Alloy Tool Steel

Specification:: MT2 MT3 MT4 MT5

Hardness:: HRC55-60°

MT2 working load/speed:: 160kg-60kg (100-3300rpm/r)

MT3 working load/speed:: 280kg-128kg (100-3000rpm/r)

MT4 working load/speed:: 520kg-200kg (100-2800rpm/r)

Products Description

Product Info：

Product name: MT2 MT3 MT4 MT5 center top
Type: Live center
Material : Alloy Tool Steel
Specification : MT2 MT3 MT4 MT5
Hardness : HRC55-60°

Bearing load and speed description:
MT2 working load/speed: 160kg-60kg (100-3300rpm/r)
MT3 working load/speed: 280kg-128kg (100-3000rpm/r)
MT4 working load/speed: 520kg-200kg (100-2800rpm/r)
MT5 working load/speed: 1180kg-280kg (100-2700rpm/r)
(The load is inversely proportional to the speed, the faster the speed, the smaller the load)

(Note: For more parameters, please contact for consultation)

Product Paramenters

This dimension drawing is manual measurement, so there may be errors. I hope to get your understanding.

If the size deviation is too large, it is usually marked incorrectly.

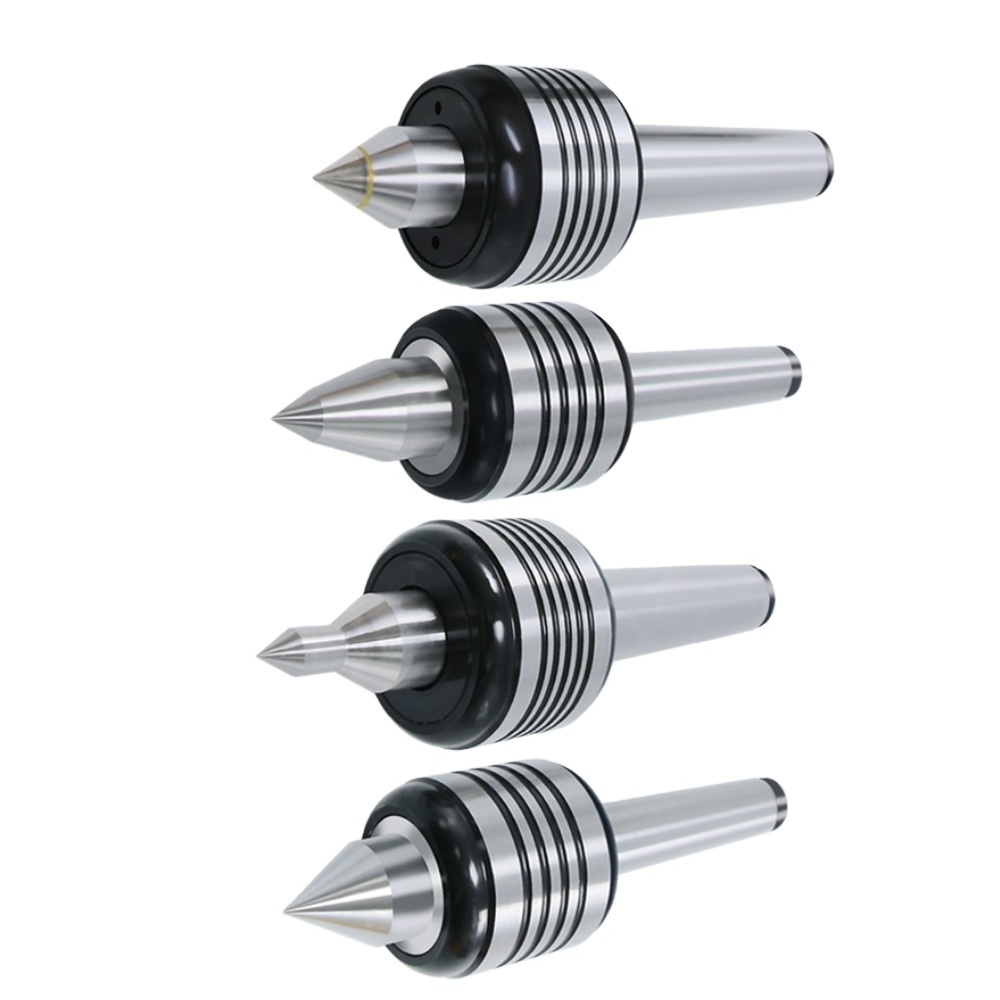

H001 Top Center (Alloy Top Center)

H001 top center, also known as "alloy top center", means that the top surface is made of tungsten steel hard alloy material, which has higher hardness and wear resistance, and the overall performance is more stable.

H002 Top Center (Taper center)

H002 top center, also known as "taper top", means that the top part adopts double taper design.

H003 Top Center (thin head center)

H003 top center, also known as "thin head top", means that the top part is reduced to make the top smaller and thinner. (as the picture shows)

H004 Top Center (Standard center)

H004 top center, also known as "standard top center", refers to the product in the standard (universal) form, which is the
original type of top.

Details Images

MT0 MT1 MT2 MT3 MT4 MT5 CNC Live center, High Qualty is More Guaranteed.

Strict selection of materials, High hardness

Made of high-quality alloy steel, Hardness after heat treatment HRC55°~HRC58° Has high rigidity and high wear resistance

Dust-proof design, Smooth rotation

There is a sealing device at the front gland, Prevent cutting fluid and dust from entering, Extended service life
It uses needle bearings, Thrust ball bearing Combination with deep groove ball bearing Stable and smooth high-speed rotation.

Speed and load

The lubricating oil is easy to evaporate in the state of high-speed internal rotation, which affects the rotation and regular oil injection, which can reduce the bearing load and effectively protect the bearing

Complete model, Transportation Guarantee

A variety of types for you to choose from, various angles and taper shanks to meet your machining needs.
Provide you with transportation guarantee and shopping guarantee, so that you can shop without trouble.

Product packaging

There are many models and specifications, and the display is limited. Different types of products have different packaging, which can be used as packaging reference. If the quantity you need is large, we can design the package you need according to your requirements.
