Quick Details
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Everfar
-
Model Number:
-
KFE200
-
weight 0.6kg:
-
outline 86*110*56mm
Quick Details
-
Usage:
-
current
-
Phase:
-
Single
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Everfar
-
Model Number:
-
KFE200
-
weight 0.6kg:
-
outline 86*110*56mm
Everfar CA86/60 300/5A cl.1 5VA Max cable50mm,busbar50*10mm low voltage Measurement current Transformer
Fixing system: Busbar support mounting, metallic bracket panel mounting, by an accessory directly to cable by
MEASURING TRANSFORMERS
A range of (12 frames) compact design plastic case current transformer It's volume is much smaller than genera model, integral hinged plate terminal cover, DIN rail mounting all makes this series CT match the requiremens
-These transformers are used for measuring current from 5A to 4000A, second current 5A/1A, cl. 1-cl02s. Busbar
dimensions from omm to 30X100mm
Features
Three built in fixing methods: panel/din rail/busbar
Built in hinged terminal cover
Compact design
Primary current from 5A to 3000A
Description

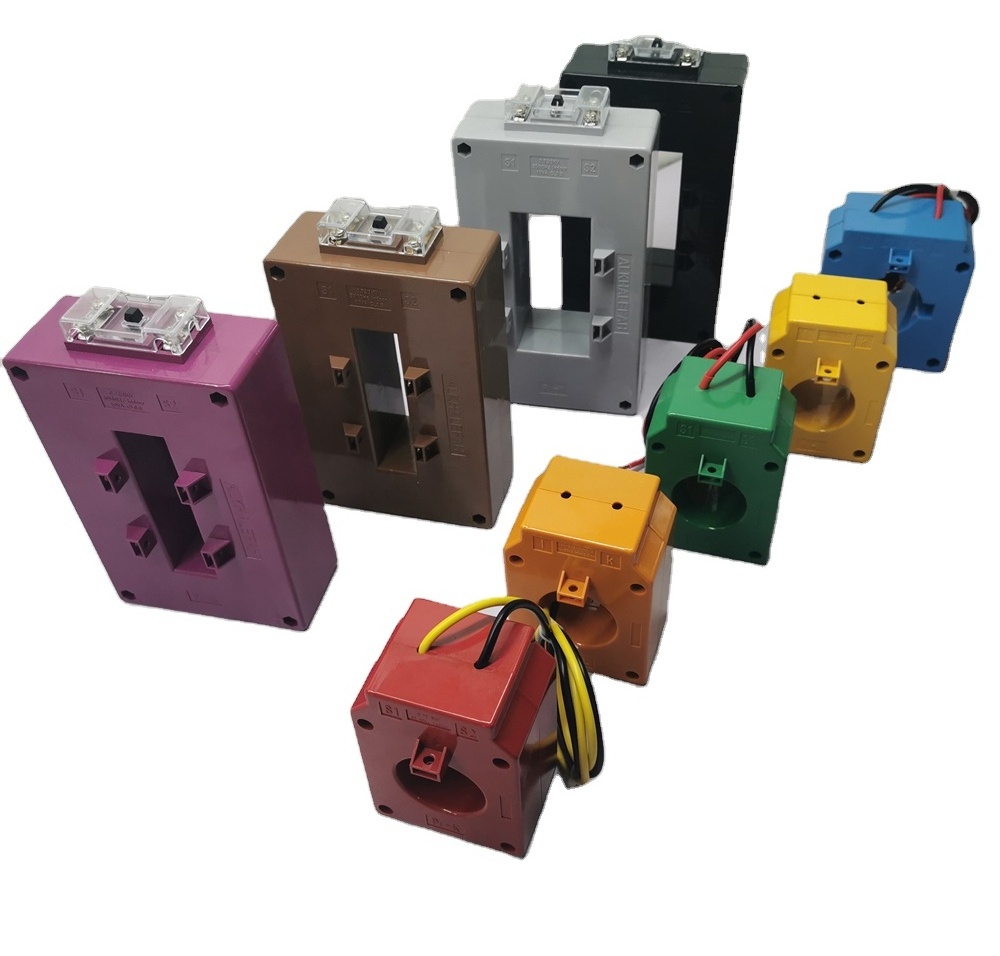

A range of compact plastic case current transformer.
Its volume is much smaller than general model.
Its integral hinged plate terminal cover and din rail mounting all make MES CT match requirements in space
limited panels.
Specifications
| Rated frequency | 50/60Hz |
| Rated test voltage | 3Kv AC (1 min) |
| Rated short-time thermal current (Ith) | 60In |
| 60In Rated dynamic current (Idyn) | 2.5Ith |
| Rated voltage (Um) | 0.72Kv AC |
| Continuous overload (Id) | 1.2In |
| Operating temperature | .-10 degree to 50 degree |
| Housing self-extinguishing class | VO |
| Safety factor | FS 5 |
| Secondary current | 5A/1A |
Standard
IEC60044-1 GB1208-2006
| Model | Primary / Secondary | Busbar Hole Dimensions(mm) | Rated Burden (VA) | Accuracy Class | Rated Voltage |
| CA-62/B | 5/5A~150/5A | busbar | 1.5~2.5 | 0.5 /1.0 | 0.72KV(AC) |
| CA-45/14 | 5/5A~60/5A | Φ=14mm | 1~2.5 | 0.5/1.0 | 0.72KV(AC) |
| CA-62/20 | 30/5A~200/5A | Φ=20mm | 1.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| CA-62/30 | 30/5A~200/5A | Φ=30mm | 1.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| CA-62/40 | 60/5A~300/5A | Φ=40mm | 2.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| CA-74/50 | 300/5A~600/5A | Φ=50mm | 2.5~5 | 0.5/1.0 | 0.72KV(AC) |
| CA-80/30 | 30/5A~200/5A | Φ=30mm | 2.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| CA-80/40 | 100/5A~500/5A | Φ=40mm | 2.5~10 | 0.5/1.0 | 0.72KV(AC) |
| CA-86/60 | 250/5A~1000/5A | Φ=60mm | 3.75~15 | 0.5/1.0 | 0.72KV(AC) |
| CA-100/60 | 400/5A~1600/5A | Φ=60mm | 3.75~20 | 0.5/1.0 | 0.72KV(AC) |
| CA-104/80 | 600/5A~2000/5A | Φ=80mm | 10~20 | 0.5/1.0 | 0.72KV(AC) |
| CA-140/100 | 800/5A~3000/5A | Φ=100mm | 15~25 | 0.5/1.0 | 0.72KV(AC) |
CE Certification
