Quick Details
-
Application:
-
Office Building
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Model Number:
-
DL-60 automatic door closer
-
Item name:
-
automatic door closer
-
Material:
-
Aluminum alloy
-
Door Weight:
-
50~65KG
-
Door Width:
-
1000mm
-
Finish:
-
Electrostatic paint
-
Speed adjustment:
-
Two stages of adjustable speed
-
Temperature:
-
-40°C~80°C, -60°C~80°C
-
Function:
-
90° hold-open and Automatic (Factory default is Automatic)
-
Dimensions:
-
175x65x40mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Office Building
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Model Number:
-
DL-60 automatic door closer
-
Item name:
-
automatic door closer
-
Material:
-
Aluminum alloy
-
Door Weight:
-
50~65KG
-
Door Width:
-
1000mm
-
Finish:
-
Electrostatic paint
-
Speed adjustment:
-
Two stages of adjustable speed
-
Temperature:
-
-40°C~80°C, -60°C~80°C
-
Function:
-
90° hold-open and Automatic (Factory default is Automatic)
-
Dimensions:
-
175x65x40mm
Hot selling products
Door Closer for Automatically door close gently automatic door closer
We are a professional supplier of high-quality access controllers at a competitive price.
Here are our main categories below:_
- Access Control Panel
- Standalone Access Controller(keypad/smart card/fingerprint)
- Facial & Fingerprint Time Attendance and Access Control
- Electric Magnetic lock / Bolt lock / Strike lock/Cabinet lock
- RFID Card Reader
- Exit Push Button and other accessories etc.

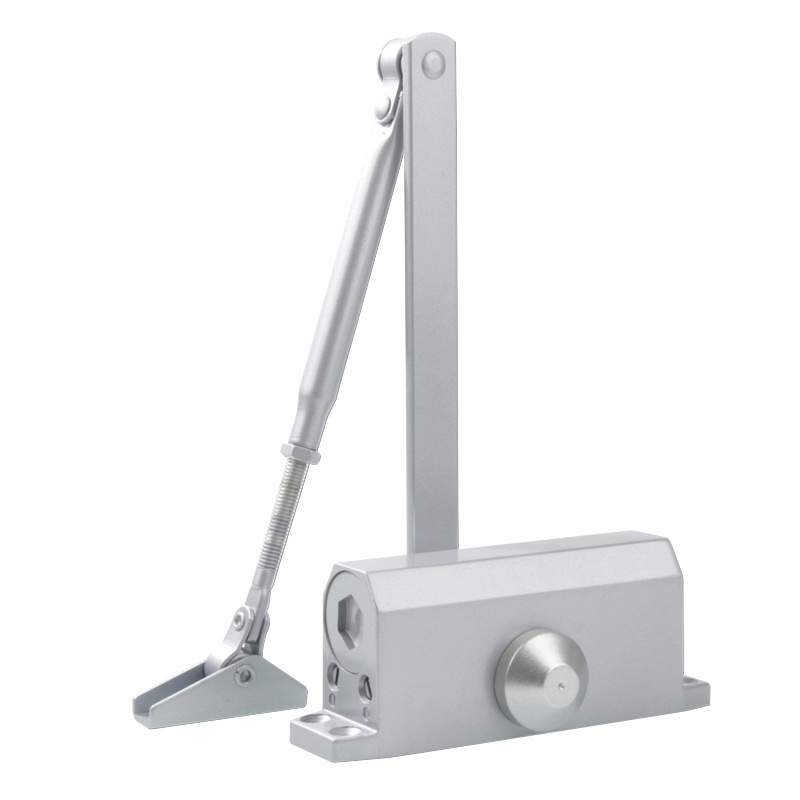

Now show you the door closer as follow~
Application:
The door closer is only suitable for one-way casement doors and is generally not used for frameless glass doors.
Functional:
A. Economic type door closer of residential and commercial
B. Performance standard: QB/T 2698-2013
C. Two speed control valve,adjusting closing speed and latching speed
D. ADC12 environmental production of aluminum alloy casting body
Product Details:
1. Cycle test: up to 500,000 cycles
2. Hydraulic oil: low-temperature resistance to -45℃
3. Rocker arm: made of good quality carbon steel material, not easily deformed or broken
4. Surface: double painted with anti-corrosion material, 96 hours corrosion resistance
5. Power Size EN4/5
6. Positioning Function Optional
7. Back-check function Optional
8. Manufactured under strict observation of EN1154 standard
9. Precise sealed, preventing oil leakage
10. High quality die-casting aluminum alloy, protected with two-layer bright paint.
11. Two hydraulic press valves controlling two stage doors closing automatically.
12. It can be installed on the door plate or installed on the doorframe.
|
Specification |
|
|
Material |
Aluminum alloy |
|
Door Weight |
50~65KG |
|
Door Width |
1000mm |
|
Finish |
Electrostatic paint |
|
Speed adjustment |
Two stages of adjustable speed |
|
Temperature |
-40°C~80°C, -60°C~80°C |
|
Function |
90° hold-open and Automatic (Factory default is Automatic) |
|
Warranty |
300000 times; 500000 times |
|
Dimensions |
175x65x40mm |
