Small Battery Electrode Disc Hole Punching Coin Cell Stamping Machine For 2032 Battery

Small Battery Electrode Disc Hole Punching Coin Cell Stamping Machine For 2032 Battery

FOB Reference Price: Get Latest Price

≥1 Sets

US $700

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: LN

Weight (T):: 0.01 T

Model Number:: LN-CP60

Motor Power (kw):: 0 kw

Major structural material:: Cr Plated Steel

Cutting Die:: Optional 3 - 24mm customized dies are available upon request

Certification:: CE

Quick Details

Machine Type:: N/A

Return Force (kN):: 1 kN

Place of Origin:: China

Brand Name:: LN

Weight (T):: 0.01 T

Model Number:: LN-CP60

Motor Power (kw):: 0 kw

Major structural material:: Cr Plated Steel

Cutting Die:: Optional 3 - 24mm customized dies are available upon request

Certification:: CE

Small Battery Electrode Disc Hole Punching Coin Cell Stamping Machine For 2032 Battery

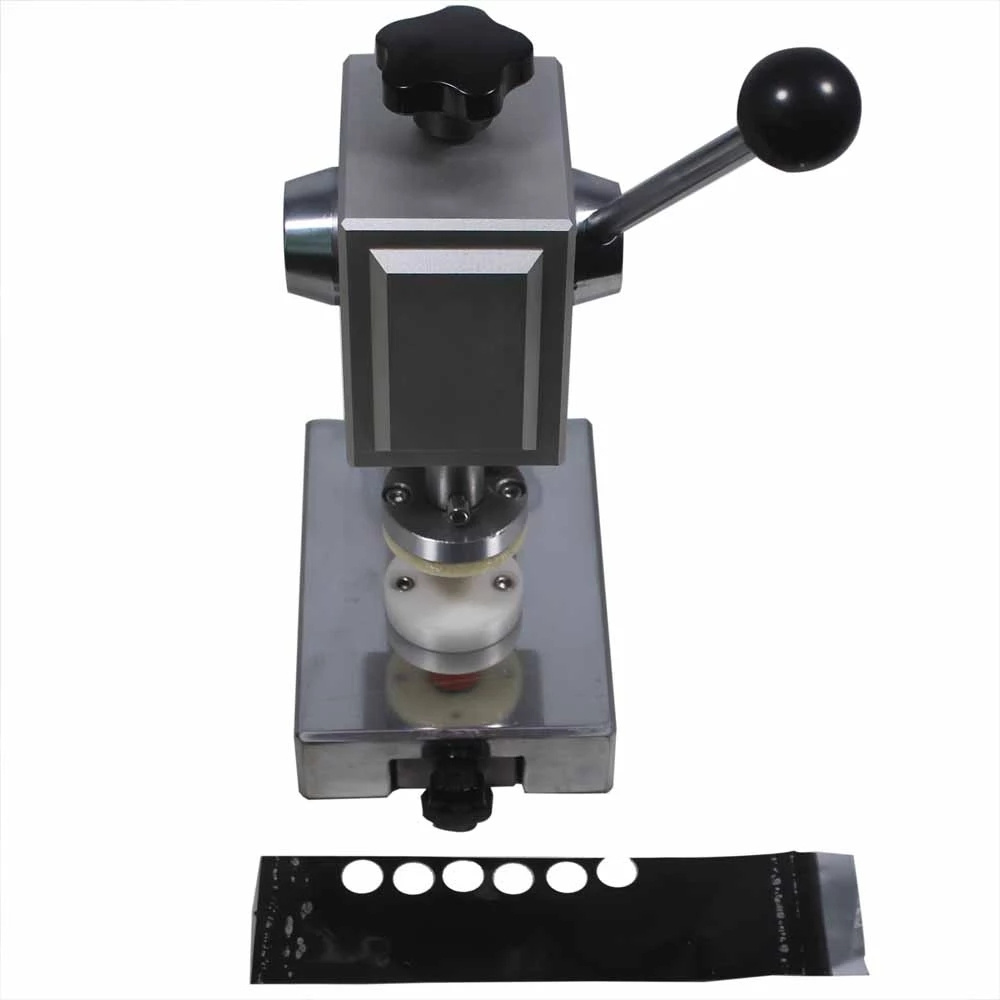

LN-CP60 is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box with a transition chamber diameter larger than 230mm . This tool is manually operated and is designed for cutting round discs from a thin metal sheet/foil (< 0.5 mm) or separator film (<30um) . The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researchers as well as TEM sample preparation.

Structure	Major structural material: Cr Plated Steel
Cutting Die	Optional 3 - 24mm customized dies are available upon request
Product Dimensions	L110×W150×H235mm Compact size which can be put into glovebox through air lock chamber
Warranty	Two years limited manufacturer warranty with lifetime support.
Application Notes	1. If you are going to make CR2016, CR2025 or/and CR2032 coin cell batteries, you will need at least three cutting dies: 16mm (for negative side case, which is 16.5mm in diameter). 19mm (for positive side case, which is 20mm in diameter). 20 mm (for separator to fully separate the electrodes in both negative and positive cases). 2. For CR2450 coin cells, a 20mm cutting die can be used for cutting electrode discs and the 24mm cutting die can be used for cutting either electrode discs or separator discs (the 24mm cutting die can be purchased as optional die). 3. Separator discs must be large enough to fully separate the positive and negative electrodes to avoid short-circuit inside the coin cells 4. Warning: You must pay great attention to install die or change die from one size to another. The tolerance of precision die is very little. Please contact us if you have any question.
Compliance	CE Certified
Net Weight	6 kg
