Quick Details
-
Gear:
-
CVT
-
Max power::
-
19kw(25.84HP) 26N/M
-
Color:
-
Optional
-
Suspension:
-
Front Independent Suspension
-
Warranty:
-
2 years
-
fuel tank:
-
13 liter
-
Transmission:
-
Shaft
-
Brakes:
-
Front disc brake& rear hydraulic brake
Quick Details
-
Tire Size:
-
24inch
-
Dimension:
-
3900x1260x2030mm
-
Engine::
-
300cc water cooled, 4 stroke, EFI
-
Gear:
-
CVT
-
Max power::
-
19kw(25.84HP) 26N/M
-
Color:
-
Optional
-
Suspension:
-
Front Independent Suspension
-
Warranty:
-
2 years
-
fuel tank:
-
13 liter
-
Transmission:
-
Shaft
-
Brakes:
-
Front disc brake& rear hydraulic brake
Product Description

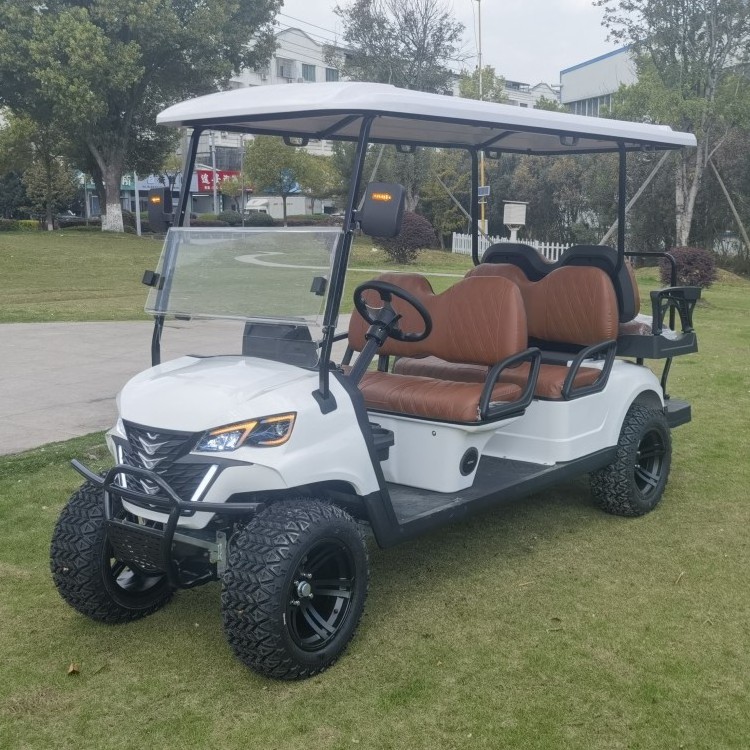

6 seaters gasoline or battery powered golf carts with electronic P park
This 4+2 seater golf cart come with 24inch off road,with several alloy shape and size for choice, the colors can be made as per reqeust, we can make it with electric or gasoline power for your choice, the gasoline have been
EPA
certified,drive option we offer is rear wheel and four wheel drive,
all parts we used are trustable that well tested before
all parts we used are trustable that well tested before
Specification
Led head and day lights
Led head and day lights, led front and rear turning signals, brake lights,tail lights
Front indepedent suspension
Front comfortable independent suspension,rear heavy duty leaf spring with absober
Cvt gear
only three gear for gasoline power: one forward, one neutral, one backward
JINGHANG ELECTRIC GOLF CARTS
Domestic famous brand powerful 5kw AC motor and chilwee brand maintenance fee gel battery which enable quality of our electric golf carts very trustable
JINGHANG GASOLINE POWER GOLF CARTS
As the creator of the golf carts with gasoline power in china in 2005 and so far the only factory able to make golf carts with gasoline power in china, our gasoline golf carts have passed EPA test and are producing according to EPA standard, the features of our gasoline golf carts are durable and powerful that with max power up to 25.84hp,it is total a different driving experience that drive it with so big power
|
Specifications of Electric power
|
|
Specifications of Gasoline power
|
value
|
||
|
Item No.
|
JHGFO-E4-2S
|
Item No.
|
JHGFO-G4-2S
|
||
|
Condition
|
Brand new
|
Condition
|
Brand new
|
||
|
Motor
|
Powerful 5kw AC motor
|
Engine
|
300cc vertical,4- stroke, water cool, sohc-4 walve, Electronic Fuel Injection
|
||
|
Battery:
|
Chilwee brand 48v(6cells 8v) 150ah maintenance fee gel
|
Max power&Torque
|
19KW(25.84hp)/6500rmp 26N.m
|
||
|
Controller
|
48v 400ah
|
Gear
|
CVT(F-N-R)
|
||
|
Charger
|
48v 25ah
|
Transimission
|
Shaft
|
||
|
Driving Mileage
|
up to 80kms
|
Driving Mileage
|
≥300km
|
||
|
Brake
|
Front disc brake& Rear hydraulic brake and pedal park brake
|
Brake
|
Front disc brake& Rear hydraulic brake and pedal park brake
|
||
|
Suspension
|
Front indepedent&Rear heavy duty leaf spring
|
Suspension
|
Front indepedent&Rear heavy duty leaf spring
|
||
|
Loading capacity
|
800kgs
|
Loading capacity
|
1000 kgs
|
||
|
Max speed:
|
25-40km/h
|
Max speed:
|
55km/h
|
||
|
Climbing:
|
30%(full loaded)
|
Climbing:
|
40%(full loaded)
|
||
|
Warrantty:
|
2 years
|
|
2 years
|
||
|
|
|
Fuel tank
|
13 L
|
||
|
Overall size
|
3500x1260x2030mm
|
|
25.84HP(19KW)
|
||
