Quick Details
-
Application:
-
Human Detection, Hair Detection, Face Recognition
-
Series:
-
1080P Camera Module
-
Features:
-
4K Camera Module
-
Mounting Type:
-
USB2.0
-
Description:
-

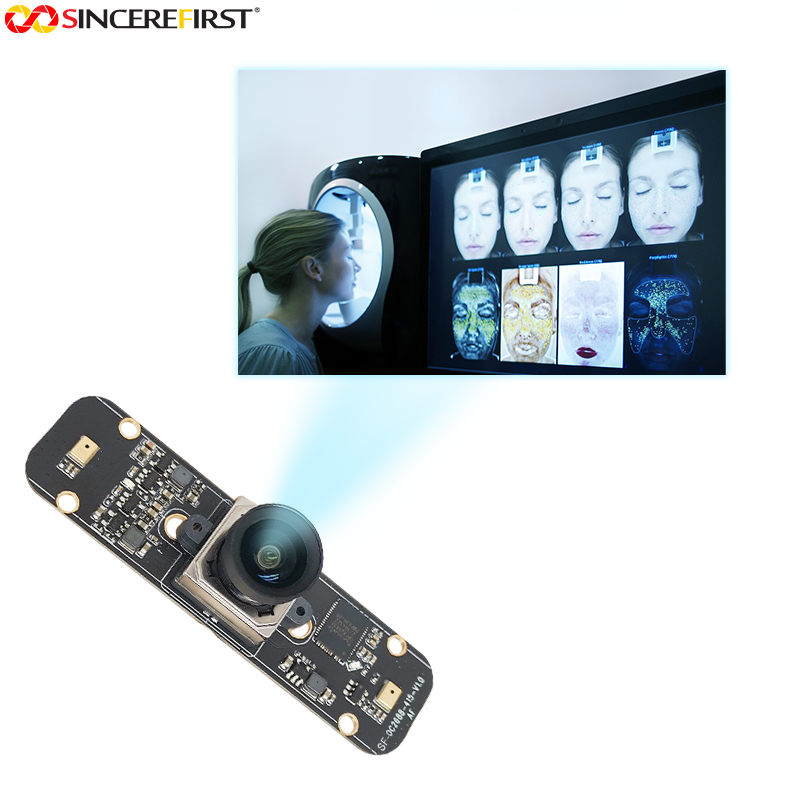

IMX415 Camera Module
-
Product name:
-
4K Camera Module
-
Sensor:
-
IMX415
-
Sensor Size:
-
1/2.8 inch
-
FOV:
-
D86 H76 V48
-
TV Distortion:
-
<0.3%
-
Focal Length:
-
3.85mm
-
Resolution:
-
30 fps for 4K, 60 fps for 1080P
-
Pixel:
-
8MP
-
Performance:
-
Low light effect
-
Type:
-
Digital Camera
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sincerefirst
-
Model Number:
-
SF-OC2688-415-V1.0Y
-
Application:
-
Human Detection, Hair Detection, Face Recognition
-
Series:
-
1080P Camera Module
-
Features:
-
4K Camera Module
-
Mounting Type:
-
USB2.0
-
Description:
-
IMX415 Camera Module
-
Product name:
-
4K Camera Module
-
Sensor:
-
IMX415
-
Sensor Size:
-
1/2.8 inch
-
FOV:
-
D86 H76 V48
-
TV Distortion:
-
<0.3%
-
Focal Length:
-
3.85mm
-
Resolution:
-
30 fps for 4K, 60 fps for 1080P
-
Pixel:
-
8MP
-
Performance:
-
Low light effect
-
Type:
-
Digital Camera
Products Description
|
Sensor:
|
IMX415
|
Pixels:
|
8MP
|
|||
|
F.NO:
|
2.2
|
Focal Length:
|
3.85mm
|
|||
|
Fov(D):
|
86°
|
TV Distortion:
|
＜0.3%
|
|||
|
Focus Range:
|
1m- Infinity
|
Module Size
:
|
72MM*19.1MM*16.6MM
|
|||
|
SF-OC2688-415-V1.0 IMX415 Description:
The IMX415-AAQR-C is a diagonal 6.4 mm (Type 1/2.8) CMOS active pixel type image sensor with a square pixel array and 8.42M effective pixels. This chip operates with three power supplies, analogue 2.9 V, digital 1.1 V, and IF 1.8 V, and has low power consumption. High sensitivity, low dark current, and no smear are achieved through the adoption of R, G, and B primary color pigment mosaic filters. This chip features an electronic shutter with variable charge-storage time.(Application: Surveillance cameras, FA cameras, Industrial cameras.) SF-OC2688-415-V1.0 IMX415 Features: ◆CMOS active pixel type dots ◆Built-in timing adjustment circuit, H/V driver and serial communication circuit ◆Input frequency: 24 MHz / 27 MHz / 37.125 MHz / 72 MHz / 74.25 MHz ◆Number of recommended recording pixels: 3840 (H) × 2160 (V) approx. 8.29M pixel ◆Readout mode All-pixel scan mode Horizontal / Vertical 2/2-line binning mode Window cropping mode Horizontal / Vertical direction - Normal / Inverted readout mode ◆Readout rate Maximum frame rate in All-pixel scan mode: 12 bit: 60 frame/s, 10 bit: 90 frame/s (TBD) ◆High dynamic range (HDR) function Multiple exposure HDR Digital overlap HDR ◆Synchronizing sensors function ◆Variable-speed shutter function (resolution 1H units) ◆CDS / PGA function 0 dB to 72 dB (TBD) (step pitch 0.3 dB) ◆Supports I/O CSI-2 serial data output ( 2 Lane /4 Lane ), RAW10 / RAW12 output ◆Recommended exit pupil distance: –30 mm to –∞ Camera Module, USB Camera Module, USB Board Camera, Board Level Camera USB, USB2.0, USB3.0 Camera Module, Board Camera: The USB camera module is a general-purpose camera control board designed for both PCs and embedded systems like the ARM,Raspberry Pi,Odroid,and similar hardware. It supports almost all parallel interface image sensors and many MIPI camera sensors, including both global and rolling shutter sensors. The USB cameras adopt the standards of the USB interface, so they are easily expandable and adapted. What’s more, they could be made driver-free by following the USB device standards,which is suitable for the image software or system applications. USB Camera Module Application Areas Camera Module For Imaging And Vision Solutions, Integrated Complex And Customized Technology, Machine Vision, Intelligent Systems, Future Security, Optical Technology Solutions, Camera Module Customized Solutions, Internet Of Things End-to-end Solution, Iris Recognition Technology, Iris Solutions, Face Recognition, VR High End Camera Solutions, Smart Home Solutions, Intelligent Hardware Solutions, Professional Camera Modules, Specially Designed For Small Uav, Airborne Camera Modules, Uav Solutions, Uav Special Modules, Drone Solutions, Aerial Filming Solutions, Optical Technology Solutions, Mobile Phone Camera Module, Camera Solutions, Optronics Solutions Imaging Technology Solutions, Video Technology Solutions, Optoelectonic Research, Infrared Imagers For Industry, Embedded Systems Solutions Main Developmet Board, Graphics Processing Unit, System Adaption Main Developmet Board: Arduino, ESP32, Raspberry Pi, NVIDIA Graphics Processing Unit: Ambarella, Rockchip, MediaTek, Qualcomm, NVIDIA, ATI System Adaption: Self-developed Software, Android, Window, MAC-IOS
