Automatic Series Hand Platen Die Punching/ Flat Bed Die Cutter /manual Creasing And Die Cutting Machine

Automatic Series Hand Platen Die Punching/ Flat Bed Die Cutter /manual Creasing And Die Cutting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $11000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: SY

Voltage:: 380V 50Hz

Dimension(L*W*H):: 3.2(L)x1.6(W)x1.8(H)(m)

Weight:: 2500 kg

Max.unwinding diameter:: 500mm

Max.web width:: 450mm

Max. diecutting width:: 420mm

Max. diecutting length:: 400mm

Orientation accuracy:: ±0.1mm

Quick Details

Type:: Paper Cutting Machine

Production Capacity:: 200 m/min

Max. workable width:: 950mm

Place of Origin:: Shanghai, China

Brand Name:: SY

Voltage:: 380V 50Hz

Dimension(L*W*H):: 3.2(L)x1.6(W)x1.8(H)(m)

Weight:: 2500 kg

Max.unwinding diameter:: 500mm

Max.web width:: 450mm

Max. diecutting width:: 420mm

Max. diecutting length:: 400mm

Orientation accuracy:: ±0.1mm

Character:

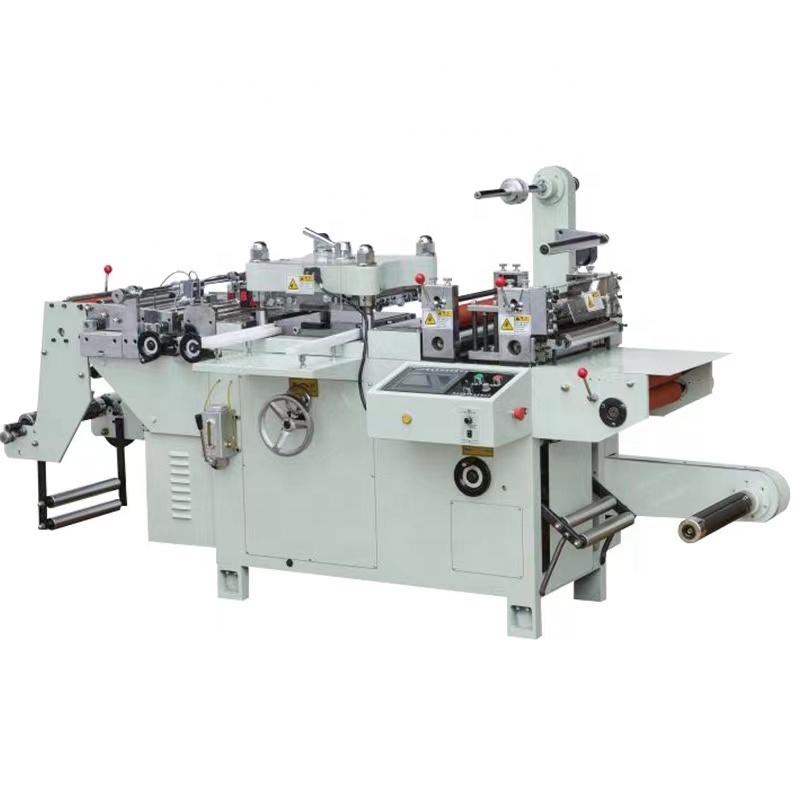

The machine is adopted with accurate flatten die cutting system, material transform by micro control, 3 points web guiding by photocell. Die cutting, waste rewinding and finished-material rewinding are on one process. It's suitable for die cutting of adhesive paper, label and laser hologram mark. This is the ideal association equipment of flexo printing
machine, silk screen printing machine, gravure printing machine and hologram mark printing machine, and the most efficient unit for printing house.

Model:	SY450	SY350
Cutting speed:	20-200times/min	20-200times/min
Max.unwinding diameter	500mm	500mm
Max.web width:	450mm	350mm
Max. diecutting width:	420mm	320mm
Max. diecutting length:	400mm	300mm
Orientation accuracy:	±0.1mm	±0.1mm
Total power:	5kw	4kw
Power voltage:	380v±10%( can customize)，50HZ	220v±10%( can customize), 50HZ
Machine weight:	about 2500kg	about 1700kg
Overall dimensions:	3.2(L)x1.6(W)x1.8(H)(m)	2.9(L)x1.3(W)x1.8(H)(m)
