Quick Details
-
Place of Origin:
-
Henan, China
-
Use:
-
cleaning
-
Industry Used:
-
Hydro test pump, pipe pressure test, Small pipe cleaning, sewer drain tube cleaning, Dirt cleaning on the surface of road, building
-
Dimension(L*W*H):
-
1200mm*700mm*950mm
-
Weight (KG):
-
300 kg
-
Product Name:
-
high pressure Cleaner
-
Plunger diameter:
-
18mm
-
Plunger stroke:
-
21mm
-
Water flow:
-
23L/min
-
Application:
-
High Pressure Water Cleaning
-
Function:
-
Water Blasting
-
Engine Type:
-
motor
-
Pressure:
-
500Bar
-
Usage:
-
Heavy Duty
Quick Details
-
Cleaning Process:
-
Cold Water Cleaning
-
Power:
-
22kw, 22kw
-
Max. Pressure:
-
500bar
-
Place of Origin:
-
Henan, China
-
Use:
-
cleaning
-
Industry Used:
-
Hydro test pump, pipe pressure test, Small pipe cleaning, sewer drain tube cleaning, Dirt cleaning on the surface of road, building
-
Dimension(L*W*H):
-
1200mm*700mm*950mm
-
Weight (KG):
-
300 kg
-
Product Name:
-
high pressure Cleaner
-
Plunger diameter:
-
18mm
-
Plunger stroke:
-
21mm
-
Water flow:
-
23L/min
-
Application:
-
High Pressure Water Cleaning
-
Function:
-
Water Blasting
-
Engine Type:
-
motor
-
Pressure:
-
500Bar
-
Usage:
-
Heavy Duty

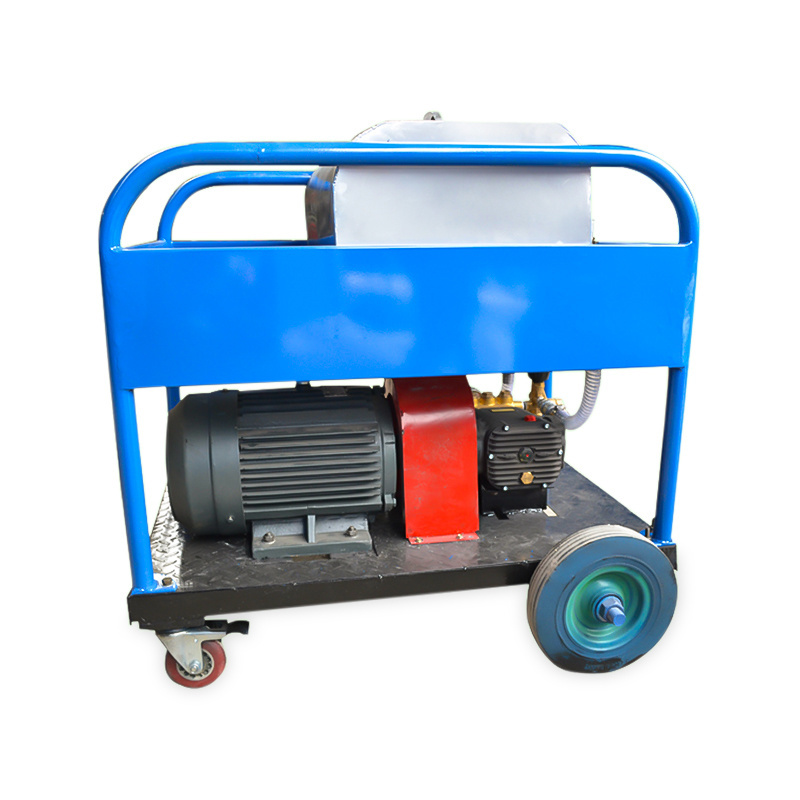

High Pressure Water Jet Pump Sewer Cleaning Machine
Application:
1. Hydro test pump, pipe pressure test.
2. Small pipe cleaning, sewer drain tube cleaning
3. Dirt cleaning on the surface of road, building, industrial, or car washing, etc .
4. Tree bark removal before root art operation paper removal security door.
5. Vessel & traffic facilities clean.
6. Casting clean scale removal rust removal paint removal
Features:
1. Pressure: 100~500bar ( 1450~7250 psi)
2. I mported Italy Comet pump, Pump head material: copper
(1) The precision forged brass pump head has high mechanical properties and corrosion resistance .
(2) The stainless steel one-way valve ensures the high efficiency of the pump .
(3) Precision processed ceramic plunger has high hardness and wear resistance .
(4) The connection between the pump head and the crankcase adopts a precise fit to prevent dirt from entering the plunger working area to ensure the effective output of high-pressure water .
(5) High-quality high and low pressure water sealing system: the new self-lubricating double sealing system is composed of special polymer fiber materials and brass washers to ensure long-term stable work.
3. The stainless steel pressure regulating valve, alloy valve core and valve seat, high temperature resistance and corrosion resistance.
4. S mall size, light weight, convenient operation and movement.
Technical parameters:
|
Item |
Specification |
|
Rate pressure |
50 0bar |
|
Water flow |
23 liter / min |
|
Motor power |
22KW |
|
Input speed |
1480mm -1 |
|
Plunger diameter |
18mm |
|
Plunger stroke |
21mm |
|
Size (L * W * H) |
|
|
Weight |
300kg |
Packing list :
|
Item |
Spec. |
Qty. |
Remarks |
|
|
Motor |
22KW, 380V/50hz |
1 set |
Anhui Wannan brand |
|
|
Electric control box |
22KW, 380V/50hz |
1 set |
Zhejiang Chint brand, Star Triangle launched |
|
|
Coupling |
|
1 pc |
Flexible direct connection Reliable transmission without noise |
|
|
High-pressure pump |
23L/500bar |
1 set |
Italian comet Tempered stainless steel guide rod High-strength full ceramic plunger Self-lubricating double seal |
|
|
Water tank |
|
1 pc |
2.0 thick 304 stainless steel |
|
|
Pressure regulator |
0-500Bar |
1 set |
Built-in pressure holding and pressure relief function, constant pressure stability, sensitive pressure relief |
|
|
Pressure gauge |
500bar |
1 set |
Anti-vibration filled silicone oil Accuracy +-0.02kg |
|
|
filter |
200M |
1 pc |
Filtrate influent particles of impurities Y-shaped design is easy to clean Stainless steel filter used repeatedly |
|
|
Mobile chassis |
|
1 pc |
With brake and steering Heavy-duty solid tires |
|
|
Accessories |
High pressure water gun |
500bar |
1pc |
Close sensitive, 0.02s pressure relief |
|
High-pressure hose |
500bar |
20m |
Polyethylene liner is smooth and without resistance Steel wire mixed winding |
|
|
High pressure nozzle |
500bar |
2pcs |
Stainless steel (sector shape, column shape) |
|
|
Rotating nozzle |
|
1pc |
|
|
|
O-ring |
|
1 set |
10 pcs |
|
|
Manual |
|
1 |
|
After-Sales Service:
1. Warranty: one year for main machine, excluding easily wear parts. During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
2. Spare Parts: Most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
3. Operation and Maintenance: We will offer you detailed operation manual, ensuring you can use it perfectly.
4. Online Service: Your question will be answer within 24 hours during working days, 48 hours during holiday.
