Quick Details
-
Model Number:
-
LLSAC7.5kw
-
Frequency:
-
50hz
-
Certification:
-
CCC
Quick Details
-
AC Voltage:
-
72v
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
lianglu
-
Model Number:
-
LLSAC7.5kw
-
Frequency:
-
50hz
-
Certification:
-
CCC
Product Description
Specification
|

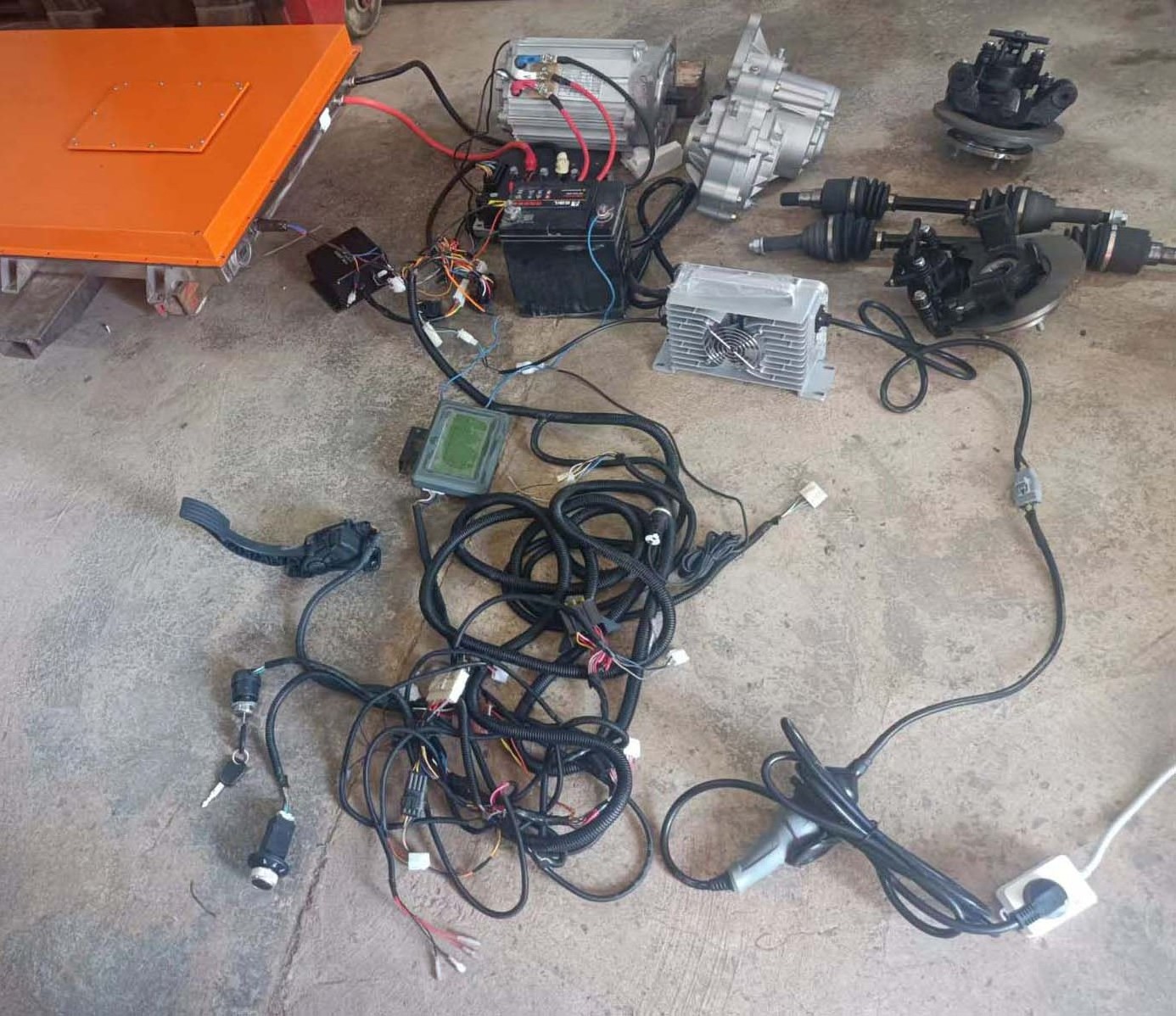

7.5kw,72v ac motor controller and gearbox for electric vehicle
|
|
|
|
we supply 15kw,144v motor as following spec.if you need controller,we can supply it to you together.
|
|
|
|
Motor type
|
three phase AC asynchronous motor
|
|
|
cooling mode
|
natural air cooling
|
|
|
Continuous power /kW
|
7.5
|
|
|
peak power / kW
|
21
|
|
|
Continuous torque / N.m
|
16
|
|
|
peak torque / N.m
|
64
|
|
|
Rated speed / R / min
|
3000
|
|
|
maximum working speed / R /min
|
6800
|
|
|
Rated voltage / V
|
AC 72
|
|
|
rated current / a
|
AC 183
|
|
|
Weight / kg
|
50
|
|
|
dimension
|
220.0 mm × 220 × 310.0m
|
|
|
Insulation grade
|
H
|
|
|
protection grade
|
IP54
|
|
|
Winding connection mode
|
△
|
|
|
working system
|
S9
|
|
|
Locked rotor torque / n.m1
|
55
|
|
|
cold DC resistance / m Ω 36
|
36
|
|
