- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
ZC-06H
-
Lock body size:
-
36 * 26* 12.5mm
-
Cable length:
-
280mm
-
Cable Diameter:
-
Regular 1.8mm or Customized
-
Tensible Force:
-
more than 3000N
-
Printing:
-
number, Letter, Logo, QR, Bar code, and simple image are available
Quick Details
-
Size:
-
Total length: 300mm
-
Place of Origin:
-
China
-
Brand Name:
-
ZhengCheng
-
Model Number:
-
ZC-06H
-
Lock body size:
-
36 * 26* 12.5mm
-
Cable length:
-
280mm
-
Cable Diameter:
-
Regular 1.8mm or Customized
-
Tensible Force:
-
more than 3000N
-
Printing:
-
number, Letter, Logo, QR, Bar code, and simple image are available
Specification
|
Product name
|

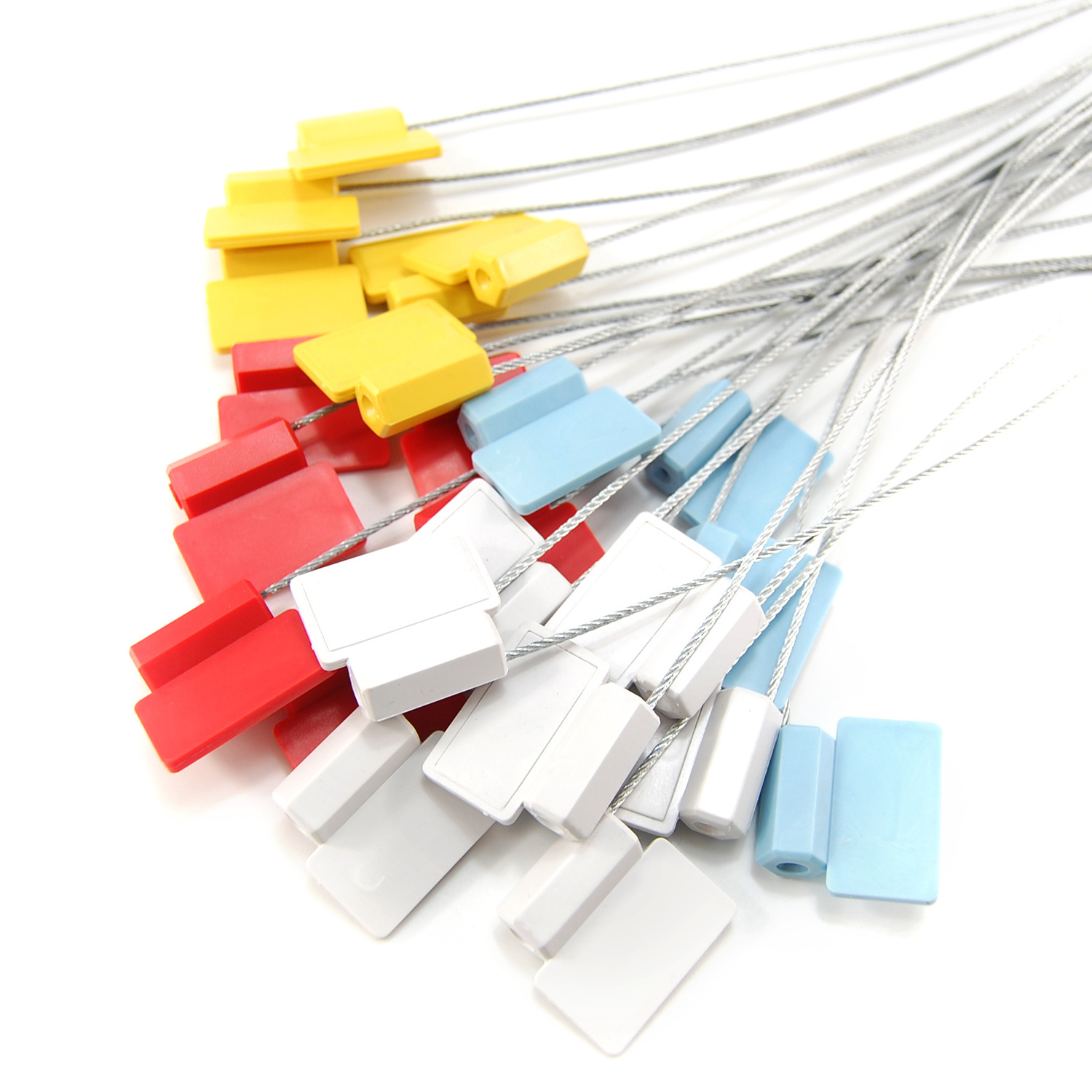

High Security RFID Cable Seal
|
|
Material
|
ABS plastic & galvanized steel
|
|
Size
|
Total length: 30cm, Cable diameter: Regular 1.8mm, or customized
|
|
Color
|
Red, White, Back, Yellow, Blue or any customized color
|
|
Working Frequency
|
13.56MHz/915MHZ
|
|
Chip
|
NXP Ntag 213/ Impinj MR6-P or Customized
|
|
Chip protocol
|
ISO14443A / ISO18000-6C
|
|
Memory
|
1024Bit
|
|
Reading Distance
|
0-400mm (Depend on the type of RFID Reader)
|
|
Working Temperature
|
-40℃~100℃
|
|
Tensible Force
|
more than 3000N
|
|
Installation Method
|
Pull tight by hand,locking range is adjustable
|
|
Application
|
use in Posting Parcel, Container, Tanker, Aircraft, Bank, Customs, etc
|
|
Printing
|
Serial number, Letter, Logo, Bar code, and simple image are available by laser printing or Hot Stamping
|
|
Standard Packaging
|
50PCS/Bag , 1000PCS/CTN, 17G/PCS
|
How RFID Electronic Seal Work?
Departure:
Lock the vehicle’s doors with the RFID Electronic Seal. Use the handheld to write the corresponding license plate number, item
name, destination address and operator information, and then upload the corresponding information to the management system
back-end server. Prepare to download this information from your handheld. Unpack the RFID handset to take pictures, while
recording the time GPS location information, and upload the management system through 3G.
Arrival:
Each RFID Electronical Seal has a unique number and can store the delivery time, delivery location, shipper carrier destination and other related encrypted information, after goods arrives at the destination, the special RFID reader reads the cargo tranportation information stored in the chip, takes photo of seal appearnace, automatically record unpacking time and location. The system automatically checks whether the relevant records match, and whether the photographing time and unpacking time are within a reasonable range.If there is an abnormality, it can be fed back to the monitoring center through the abnormal information. That effectively judges whether there is a tampering/theft in the transportation process.
