Quick Details
-
Model Number:
-
HZT1250
-
Name:
-
Cable Reel Rotator Platform
-
Appllicable drum diameter (mm):
-
500-1250
-
Maximum weight of drum (kg):
-
500
-
Dimension (mm):
-
470*172*105
-
Single piece weight (kg):
-
17
-
Application:
-
to lay cable
-
Certification:
-
ISO9001
Quick Details
-
Usage:
-
stringing
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XINYA
-
Model Number:
-
HZT1250
-
Name:
-
Cable Reel Rotator Platform
-
Appllicable drum diameter (mm):
-
500-1250
-
Maximum weight of drum (kg):
-
500
-
Dimension (mm):
-
470*172*105
-
Single piece weight (kg):
-
17
-
Application:
-
to lay cable
-
Certification:
-
ISO9001

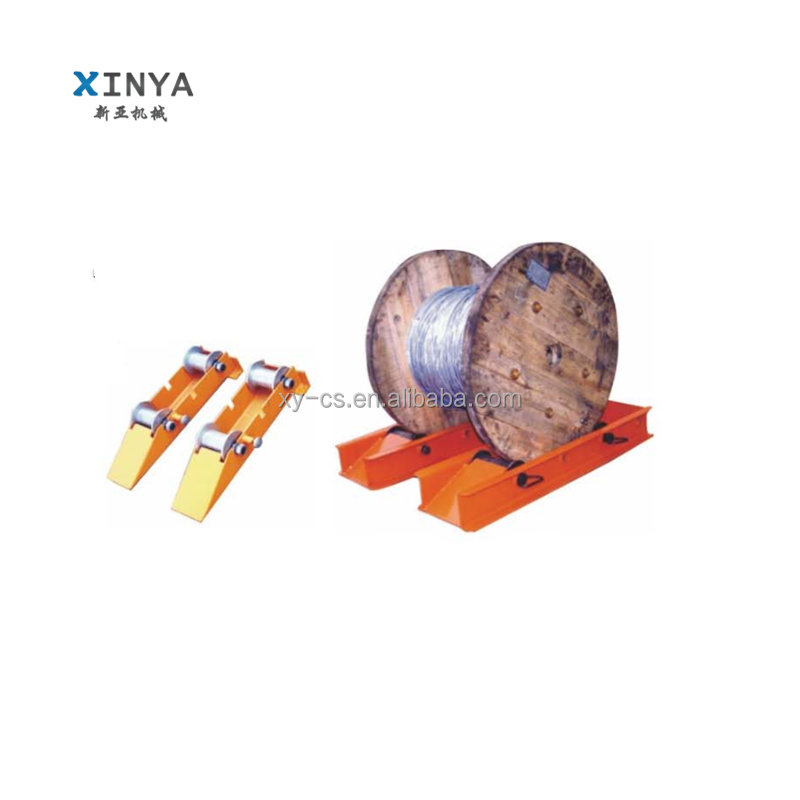

HZT Series Cable Reel Rotator Platform For Wire Cable Wooden Rollers
Summarize: serves as cable reel spread fixture, apply to electric power, communication and relatively industry to lay cable; the product consisting of turntable, roller, axis of roller and lock fixture , mounted rolling bearing on roller, reel running flexible.
Essential technical parameter
| Item number | 21533 | 21552 | 21551 |
| Model | HZT1250 | HZT1800 | HZT2500 |
| Appllicable drum diameter (mm) | Φ500~Φ1250 | Φ500~Φ1800 | Φ500~Φ2500 |
| Maximum weight of drum (kg) | 500 | 1500 | 1500 |
| Dimension (mm) | 470×172×105 | 650×150×145 | 900×230×130 |
| Single piece weight (kg) | 17 | 40 | 73.5 |
Using method :
1. Mounted on two roller base on the drum diameter.
2. Lock the roller on the slope.
3. Adjust roller base on the drum diameter.
4. Slopes the drum rim up the turntable along its slants.
5. Relieve the locking roller, then you can turn the drum.
