The special CNC system of intelligent laser cutting machine is adopted to realize automatic edge searching, automatic typesetting,
automatic focusing, automatic cutting, convenience and efficiency.
- Product Details
- {{item.text}}
Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
3000*1500mm
-
Cutting Thickness:
-
5mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HuaXia
-
Weight (KG):
-
2550 KG
-
Cutting materials:
-
Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
-
Model:
-
HXF1530
-
Laser tube:
-
1000W
-
Working table:
-
Blade Table
-
Cooling model:
-
Water chiller
-
Driving system:
-
Servo Motor
-
Positioning Accuracy:
-
0.01mm
-
Transmission:
-
Double Drive Gear Rack
-
Working Voltage:
-
220V/380V 50-60HZ
-
Laser source:
-
MAX IPG RAYCUS
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
120m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
3000*1500mm
-
Cutting Thickness:
-
5mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HuaXia
-
Weight (KG):
-
2550 KG
-
Cutting materials:
-
Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
-
Model:
-
HXF1530
-
Laser tube:
-
1000W
-
Working table:
-
Blade Table
-
Cooling model:
-
Water chiller
-
Driving system:
-
Servo Motor
-
Positioning Accuracy:
-
0.01mm
-
Transmission:
-
Double Drive Gear Rack
-
Working Voltage:
-
220V/380V 50-60HZ
-
Laser source:
-
MAX IPG RAYCUS

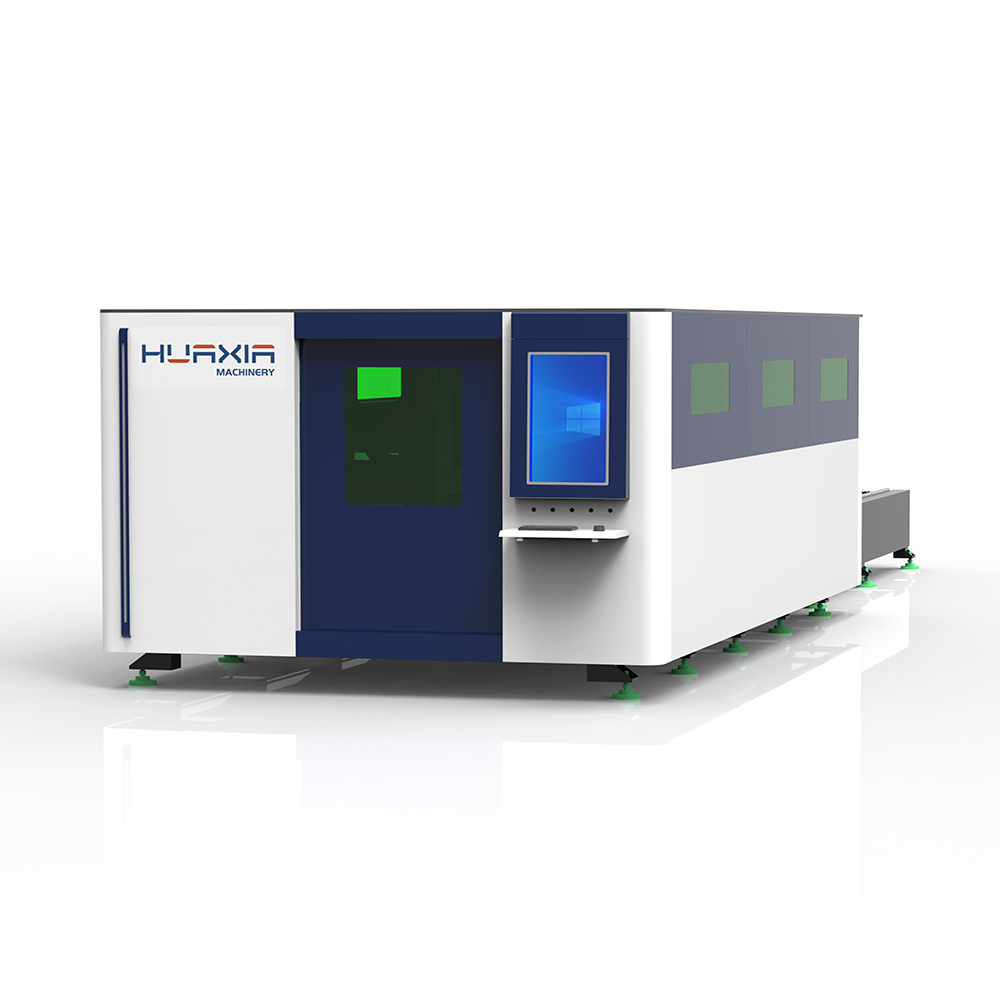

ENCLOING LASER CUTTING MACHINE
Details and advantages
Main parameter
|
Model
|
HXF-3015
|
HXF-4015
|
HXF-5015
|
HXF-6015
|
HXF-4020
|
HXF-6020
|
|||||
|
Cutting range(mm)
|
3000*1500
|
4000*1500
|
5000*1500
|
6000*1500
|
4000*2000
|
6000*2000
|
|||||
|
Cutting power
|
1000W-12000W
|
|
|
|
|
|
|||||
|
Cutting speed
|
100m/min
|
|
|
|
|
|
|||||
|
positioning accuracy
|
0.02mm
|
|
|
|
|
|
|||||
Product introduction
Stable performance
High efficiency
Your first choice
This machine is equipped with high-precision rack and guide rail transmission mechanical structure. Through the advanced numerical control system, the precision numerical control optical fiber laser cutting machine is a high-tech product integrating laser cutting machine, precision machinery, numerical control technology, etc.
The exchange platform plate laser cutting machine adopts dual worktables for simultaneous exchange, which is fast in exchange and convenient for loading and unloading. The plate cutting and loading and unloading can be carried out at the same time, saving loading and unloading time
The machine has good dynamic performance, can achieve high cutting efficiency, and is equipped with a professional CNC system, which is powerful, user-friendly and easy to understand
It is mainly used for cutting and forming of carbon steel, stainless steel, alloy steel, spring steel, galvanized sheet, copper sheet, aluminum sheet and other metal plates, and is the first choice for processing metal materials.
Product Configuration
High precision bed
High quality square tube welding and three pass welding process are adopted, which are sturdy and durable.
The structural materials are annealed at high temperature to eliminate internal stress, so that the machine bed can maintain good mechanical properties such as tensile strength, toughness, hardness and deformation resistance.
High precision beam
It is manufactured according to aerospace standards and has the strongest hardness of all
beams after aging treatment. It has good toughness, good rigidity and high precision.
beams after aging treatment. It has good toughness, good rigidity and high precision.
CNC system
Driver system
High precision servo motor, high-precision reducer, high-precision guide rail and rack are
used to ensure the high speed and acceleration of the whole machine.
Special laser head
Professional laser cutting head, stable and reliable technology, completely sealed inside
the laser head, can avoid dust pollution to the optical part. The protective lens is installed in a drawer, which is convenient
for replacement.
Laser generator
Color laser generator of famous brand. Provide high performance, high quality,cost-effective laser generator integration solutions and professional and perfect service experience in the global laser field.
Cutting sample
Applicable to the industry
