Fanvil X6U New Color-LCD With Intelligent DSS Key-mapping LCD Display Enterprise Ipbx Desktop Sip Phone Android VOIP IP Phone

Fanvil X6U New Color-LCD With Intelligent DSS Key-mapping LCD Display Enterprise Ipbx Desktop Sip Phone Android VOIP IP Phone

FOB Reference Price: Get Latest Price

≥1 Pieces

US $124

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Product name:: Enterprise VOIP IP Phone

Color:: Black

10/100M RJ45 Ports:: 6

Headset:: Support EHS wireless headset

Line:: 20 SIP Lines

LCD Pixel:: 4.3" color-screen

Auto-Provision:: TFTP/HTTP/HTTPS

Protocol:: SIP V2.0

Voice Codec:: G.729/G.723/G.722/G.711

Warranty:: 12 month

Quick Details

Type:: VoIP Phone

Brand Name:: Skyline

Model Number:: Fanvil X6U

Place of Origin:: Guangdong, China

Product name:: Enterprise VOIP IP Phone

Color:: Black

10/100M RJ45 Ports:: 6

Headset:: Support EHS wireless headset

Line:: 20 SIP Lines

LCD Pixel:: 4.3" color-screen

Auto-Provision:: TFTP/HTTP/HTTPS

Protocol:: SIP V2.0

Voice Codec:: G.729/G.723/G.722/G.711

Warranty:: 12 month

Product Description

Fanvil X6U New Color-LCD With Intelligent DSS Key-mapping LCD Display Enterprise Ipbx Desktop Sip Phone Android VOIP IP Phone

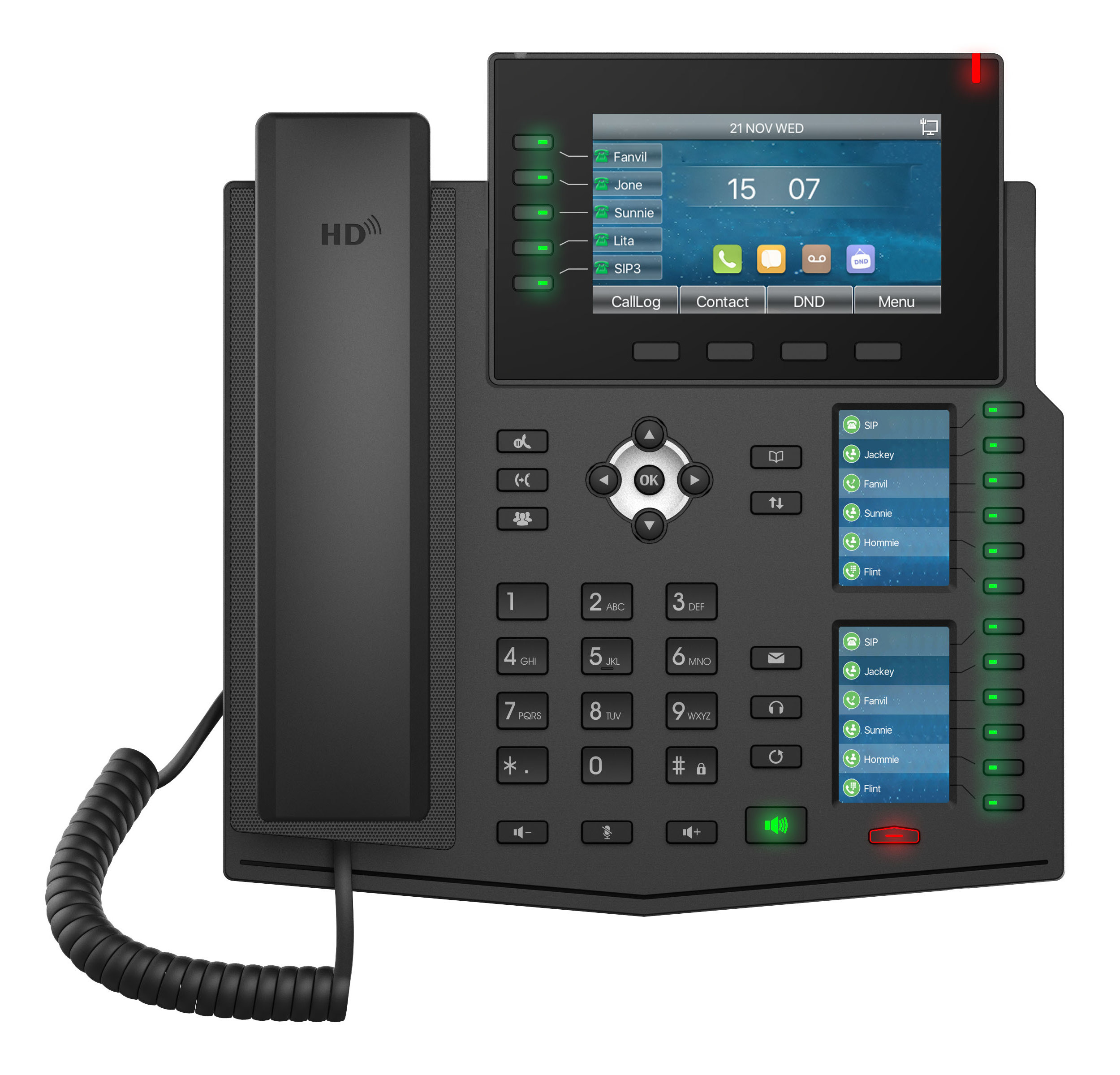

X6U is an enterprise-level three screen IP Phone. With all the necessary VoIP features and other extended features like EHS headset and Wi-Fi dongle, it provides the high-quality and convenient experience for users at an affordable price.

Contact me! Skype:live:chinaskylineluxi Whatsapp: +86 135 3417 2523 Telegram:@skylineChristal

Highlights

√ 20 SIP lines, 3-way conference, SIP hotspot
√ 5 Line keys on the main display
√ 1x4.3” main color display, 2x2.4” side color displays for DSS keys
√ HD audio on speakerphone and handset
√ Support Wi-Fi connectivity (Via Wi-Fi dongle)
√ Support EHS wireless headset
√ Up to 60 DSS keys (12 two-colored physical keys)
√ Dual Gigabit ports, integrated PoE
√ Stand with 2 adjustable angles of 45 and 50 degrees
√ Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch,
Elastix, Avaya etc.

Model

Screen

Network

PoE

Power Adapter

X6U

4.3 ”

color-screen

10/100/1000

Mbps

√

Optional

Generic 20 SIP Lines HD Voice Support receiving Video call PoE Enabled 3 LCDs (Main + DSS) Handset / Hands-free / Headset mode Intelligent DSS Keys Desktop Stand / Wall-mounted (need an additional wall hanging parts) Optional External Power Supply Video Video codec: H.264 Video call resolution: QCIF / CIF / VGA
	Phone Functions Local Phonebook (2000 entries) Remote Phonebook (XML/LDAP, 2000 entries) Call logs (In/Out/Missed, 1000 entries) Black/White List Call Filter Screen saver Voice Message Waiting Indication (VMWI) Programmable DSS/Soft keys Network Time Synchronization Support Wi-Fi Dongle Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable) Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable) Support Recording (Through Flash Drive or Server) Action URL / Active URI uaCSTA
Call Functions Call out / Answer / Reject Mute / Unmute (Microphone) Call Hold / Resume Call Waiting Intercom Caller ID Display Speed Dial Anonymous Call (Hide Caller ID) Call Forward (Always/Busy/No Answer) Call Transfer (Attended/Unattended) Call Parking/Pick-up (Depending on server) Redial Do-Not-Disturb Auto-Answering Voice Message (With server) 3-way Conference Hot Line Hot desking	Audio HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response) HAC handset Wideband ADC/DAC 16KHz Sampling Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC Wideband Codec: G.722, AMR-WB, Opus Full-duplex Acoustic Echo Canceller (AEC) Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) Packet Loss Concealment (PLC) Dynamic Adaptive Jitter Buffer DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Network Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass IP Mode:IPv4/IPv6/IPv4&IPv6 IP Configuration: Static IP / DHCP / PPPoE Network Access Control: 802.1x VPN: L2TP / OpenVPN VLAN LLDP QoS RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035) Protocols SIP2.0 over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 LLDP PPPoE 802.1x L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069 Deployment & Management Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069 Web Management Portal Web-based Packet Dump Configuration Export / Import Phonebook Import/Export Firmware Upgrade Syslog	Physical Specifications Main LCD x1: 4.3-inch (480x272) Color Screen DSS Key-mapping LCD x2: 2.4-inch (240x320) Color Screen Keypad: 51 keys, including 5 Line Keys (With LED Indicator Light) 4 Soft-keys 8 Function keys (Hold, Call forward, Conference, Phone book, Call log, MWI, Headset, Redial) 4 Navigation keys 1 OK key 12 Standard Phone Digits keys 3 Volume Control keys (Up/Down/Mute (Microphone)) 12 DSS keys(With LED Indicator Light) 1 Page-Switch (PS) key (With LED Indicator Light) 1 Hands-free key (With LED Indicator Light) HD Handset (RJ9) x1 Standard RJ9 Handset Wire x1 1.5M CAT5 Ethernet Cable x1 Back Rack x1 Status Indicator Light x1 (Red) RJ9 Port x2: Handset x1, Headset x1 RJ45 Port x2: Network x1, PC x1 (Bridged to Network) USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver Safety Keyhole x1 DC Power Input: 5V/2A Power Consumption (PoE): 1.7W~10.46W Power Consumption (Adapter): 1.38W~9.13W Working Temperature: 0~45℃ Working Humidity: 10~95% Installation: Desktop Stand Wall-mounted (need an additional wall hanging parts) Color: Black Device Dimensions: Desktop Stand (Angles 1): 239x199.3x185.8 mm Desktop Stand (Angles 2): 239x188.5x195.6 mm Wall-mounted: 239x119.2x233.6 mm Gift Box Dimensions: 336x243x84 mm Outer CTN Dimensions: 506x440x356 mm (10 PCS)
