Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Laiyuan
-
Dimension(L*W*H):
-
customization
-
Weight:
-
0.0051 KG
-
Warranty:
-
12 months
-
Working Temperature Range:
-
0 - 800 ℃
-
Core Components:
-
cartridge heater
-
Product name:
-
cartridge heating element for constant temperature
-
Surface Material:
-
SS304,SS316,SS316L Incoloy 800
-
Power tolerance:
-
5 % - 10 %
-
Packing Details:
-
Single Plastic Bag , and Carton
-
OEM&ODM:
-
yes
-
Working temperature:
-
750Celsius max
-
Tolerance of length:
-
+/-1.5%
-
Tolerance of diameter:
-
-0.01 a -0.06 m/m
-
Tolerance of cut of connexion:
-
+/-15 mlm
-
Certification:
-
CE/ROHS/CQC
Quick Details
-
Type:
-
Cartridge Heater
-
Power Source:
-
Electric
-
Voltage:
-
12-600v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Laiyuan
-
Dimension(L*W*H):
-
customization
-
Weight:
-
0.0051 KG
-
Warranty:
-
12 months
-
Working Temperature Range:
-
0 - 800 ℃
-
Core Components:
-
cartridge heater
-
Product name:
-
cartridge heating element for constant temperature
-
Surface Material:
-
SS304,SS316,SS316L Incoloy 800
-
Power tolerance:
-
5 % - 10 %
-
Packing Details:
-
Single Plastic Bag , and Carton
-
OEM&ODM:
-
yes
-
Working temperature:
-
750Celsius max
-
Tolerance of length:
-
+/-1.5%
-
Tolerance of diameter:
-
-0.01 a -0.06 m/m
-
Tolerance of cut of connexion:
-
+/-15 mlm
-
Certification:
-
CE/ROHS/CQC

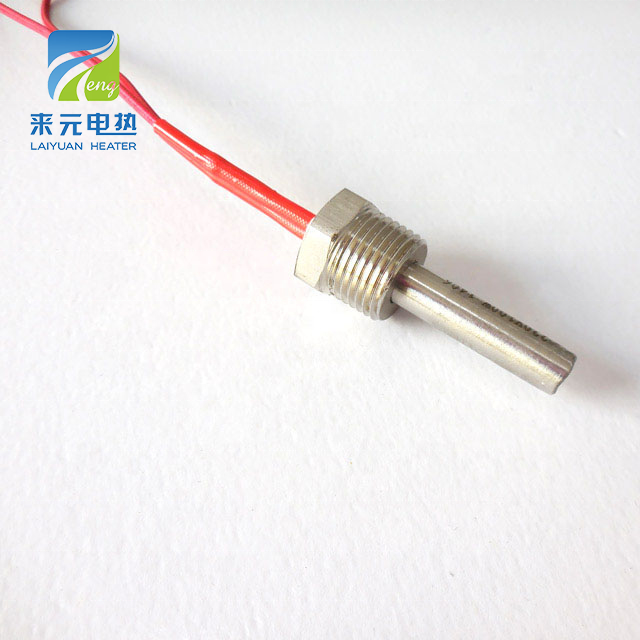

Manufacturer 12 volt cartridge heating element for constant temperature
Specification Of Manufacturer 12 volt cartridge heating element for constant temperature:
|
Material: |
Incoloy800,Incoloy840,SUS202,SUS304,SUS316L,SUS321,SUS310S |
|
Length: |
25mm - 2m |
|
Diameter: |
3mm - 25mm |
|
Heating wire: |
Cr20Ni80 |
|
Lead wire: |
3122 |
|
Pressure: |
> 1.5k/5s |
|
Insulation: |
> 50mΩ |
|
Linner error: |
≤ 10mm |
|
Diameter error: |
≤ 0.05mm |
|
Length error: |
≤ 2mm |
|
|
High-temperature Oxidation Magnesium powder were used |
Advantage of Manufacturer 12 volt ptc cartridge heating element for constant temperature:
1. Long lifespan, rational internal structure design. Using imported high-purity magnesium oxide mandrel and magnesium power for filling, high thermal conductivity
2. Using Centerless Machine to standardize Diameter, high thermal efficiency, fast heat dissipation.
3. Advanced technology and equipment make the quality good and stable.
4. All items have passed CE and ROHS certification.
Customizable Manufacturer 12 volt cartridge heating element for constant temperature is suitable for:
It is used in plastic mold, home appliances, thermoforming machinery, cigarette machinery, rapid sealing machine, pharmaceutical machinery, analysis equipment, footwear industry, semiconductor eutectic welding, die casting enter-road heating and non-runner injection, equipment for gases cooling, etc.
1. Laiyuan is Factory or Trade enterprise?
Laiyuan is an enterprise incorporating Factory and Trade .
2.Where is your factory located? How can I visit there?
Our factory is located in Yancheng City, Jiangsu Province, China .
It is closed to Shanghai ,only 4hours if by bus.
3.Which Certificate of your product does your company have?
ISO9001,CE,ROHS.CCIC
4.Before order, we need sample for test ,is it ok?
Yes, of course. We provide sample for test before bulk order.
5. How does your company to control your product quality?
Quality is the cornerstone of the survival and development of Laiyuan .
We control quality from the beginning to the end all the time .
6.How to contact me ?
Whatsapp: 86-15895143509 Phone: 86-15895143509
Skype:emilylaiyuan E-Mail :sales004 ATchina-laiyuan.com
YOUR VISIT WILL LEAD LAIYUAN PEOPLE TO DO BETTER!
