Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HBVCAM
-
Model Number:
-
HBVCAM-1509-72 V11
-
Video Compression Format:
-
RGB RAW
-
Data Storage Options:
-
USB
-
Module Size:
-
25mm * 24mm * 23.8±0.5mm
-
Sensor type:
-
OV5647, 1/4" CMOS
-
Resolution:
-
2592 * 1944
-
Interface:
-
CSI
-
DFov:
-
72.4 °
-
Focus:
-
Fixed
-
Night vision:
-
support
-
Lens:
-
3.6MM/ 130°/160°/175°/222° lens is optional
-
Frame rate:
-
15 fps
-
Object distace:
-
30cm to infinity
-
Certification:
-
ce, FCC, CCC, RoHS
Quick Details
-
Special Features:
-
NIGHT VISION, Face Recognition
-
Function:
-
NIGHT VISION
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HBVCAM
-
Model Number:
-
HBVCAM-1509-72 V11
-
Video Compression Format:
-
RGB RAW
-
Data Storage Options:
-
USB
-
Module Size:
-
25mm * 24mm * 23.8±0.5mm
-
Sensor type:
-
OV5647, 1/4" CMOS
-
Resolution:
-
2592 * 1944
-
Interface:
-
CSI
-
DFov:
-
72.4 °
-
Focus:
-
Fixed
-
Night vision:
-
support
-
Lens:
-
3.6MM/ 130°/160°/175°/222° lens is optional
-
Frame rate:
-
15 fps
-
Object distace:
-
30cm to infinity
-
Certification:
-
ce, FCC, CCC, RoHS
Product Specification
|
Module No.
|
HBV-RPI1509B-65 V11
|
|
Module Size
|
25mm×24mm ×23.8±0.5mm
|
|
Temperature (Operation)
|
-20°C to 70°C
|
|
Temperature (Stable Image)
|
0°C to 50°C
|
|
Assembly technique
|
SMT (ROSH)
|
|
Focus
|
Fixed
|
|
Object distance
|
30CM to infinity
|
|
Resolution
|
800LW/PH (Center)
|
|
PCB printing ink
|
Black
|
|
interface
|
15p-1.0 mip
|
|
Working power supply
|
3.3v（pin15）
|
|
Operating system
|
Raspberry Pi
|
|
Package
|
Anti-electrostatic tray
|
|
Certifications
|
FCC and CE
|
|
Sensor Type
|
OV5647 (1/4” )
|
|
Active Array Size
|
2592*1944
|
|
Sensitivity
|
600mV/Lux-sec
|
|
Pixel Size
|
1.4µm x1.4µm
|
|
Maximum Image Transfer Rate
|
15 fps for QSXGA;
|
|
Output formats
|
8/10bit RGB RAW output
|
|
S/N Ratio
|
34db
|
|
Dynamic Range
|
67db @8x gain
|
|
Package
|
CSP,Bare Die
|
|
DFOV
|
72.4°
|

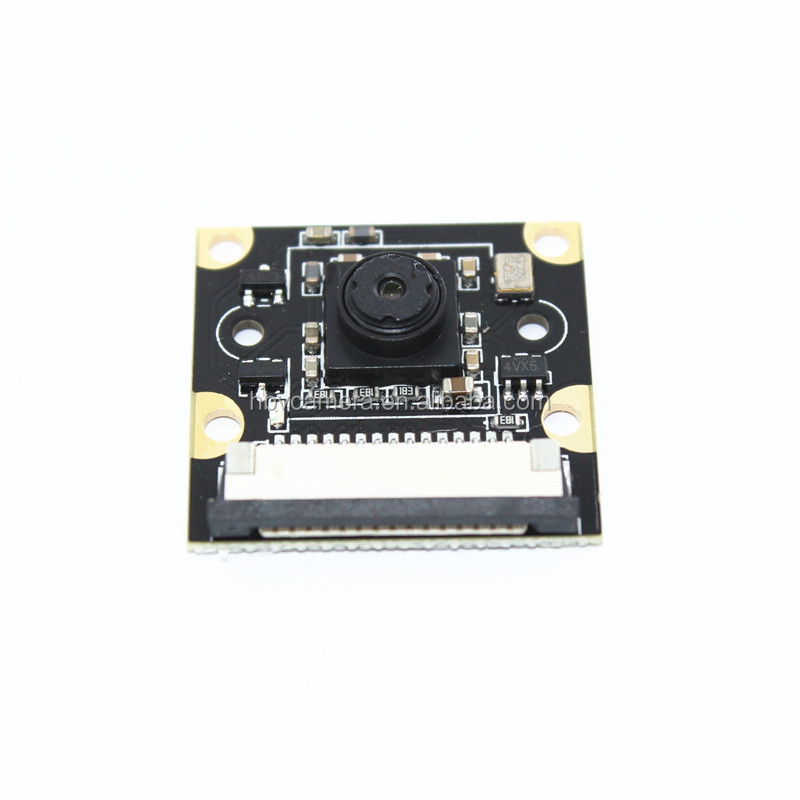

Detail Images
