Quick Details
-
Brand Name:
-
Power Space
-
Weight:
-
190 kg
-
Filter material:
-
Ahlstrom filter cartridge
-
Filter area:
-
16.5㎡
-
Filter efficiency:
-
0.3μm; >99.9%
-
Wind processing ability:
-
2000m3/h
-
Power:
-
2.2kw
-
Power supply:
-
customizable
-
Noise:
-
≤72dB(A)
-
Compressed air:
-
0.5-0.6MPa
-
Product name:
-
Industrial Dust Collector
-
Application:
-
Dust Collect
Quick Details
-
Marketing Type:
-
New Product 2023
-
Minimum Particle Size:
-
0.3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Power Space
-
Weight:
-
190 kg
-
Filter material:
-
Ahlstrom filter cartridge
-
Filter area:
-
16.5㎡
-
Filter efficiency:
-
0.3μm; >99.9%
-
Wind processing ability:
-
2000m3/h
-
Power:
-
2.2kw
-
Power supply:
-
customizable
-
Noise:
-
≤72dB(A)
-
Compressed air:
-
0.5-0.6MPa
-
Product name:
-
Industrial Dust Collector
-
Application:
-
Dust Collect

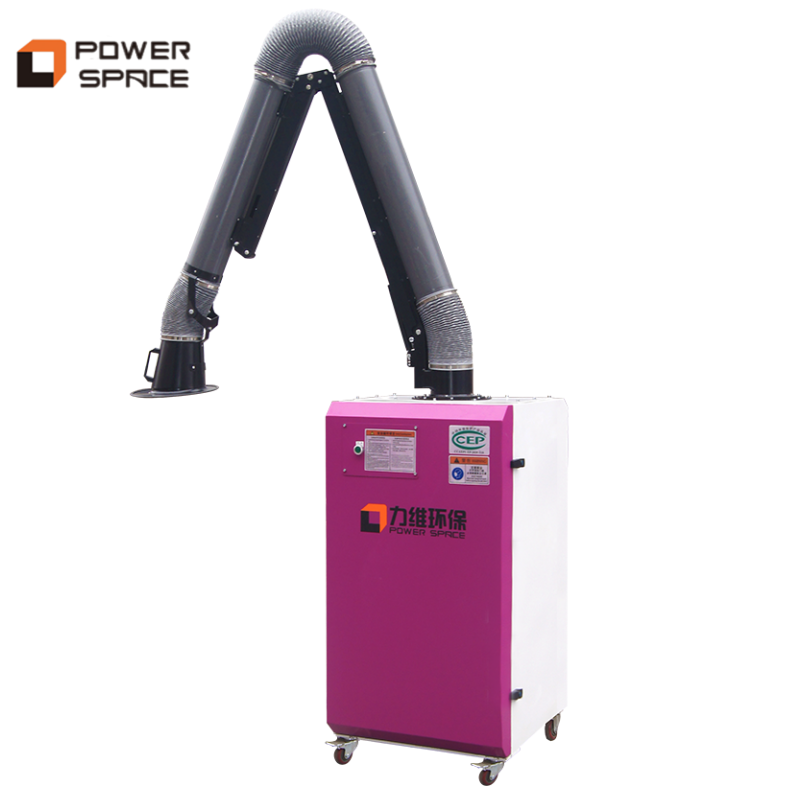

High quality welding fume collector for industrial dust collector welding smoke extractor
|
Item
|
Parameter
|
|
|
||
|
Model
|
LW1201E-022AF
|
LW1201E-030AF
|
LW1201E-030BF
|
||
|
Process capacity
|
2000m³/h
|
2800m³/h
|
2800m³/h
|
||
|
Motor power
|
2.2Kw
|
3Kw
|
3Kw
|
||
|
QTY of filter cartridge
|
1
|
1
|
1
|
||
|
Filter area
|
16.5m²
|
16.5m²
|
16.5m²
|
||
|
Filter efficiency
|
0.3μm; >99.9%
|
0.3μm; >99.9%
|
0.3μm; >99.9%
|
||
|
Noise
|
≤72dB
|
≤72dB
|
≤72dB
|
||
|
QTY of exhaust arm
|
1
|
1
|
2
|
||
|
Filter element
|
Ahlstrom nano flame-retardant
|
Ahlstrom nano flame-retardant
|
Ahlstrom nano flame-retardant
|
||
|
Dust cleaning method
|
Pulse automatic
blowing-back dust removal system by compressed air |
Pulse automatic
blowing-back dust removal system by compressed air |
Pulse automatic
blowing-back dust removal system by compressed air |
||
|
Size(L*W*H)
|
680*680*1350mm
|
680*680*1350mm
|
680*680*1350mm
|
||
2.
By means of simulated calculation, ourproprietary impeller structureis developed independently : High wind pressure, large suction capacity, low noise and low energy consumption. (aluminum impeller, explosion-proof)
3.
Exhaust arm adopts precise 360° slewing support,flexible rotation, arbitrary hovering, wide range of movement,single-arm and double-arm for you to choose; External framework, so inner wall of arm is smooth and no wind resistance.
4.
The hood is equipped with stainless steel spark capture mesh, inner wall is smooth and no wind resistance.
5.
Standard filter guide channel in the dust purification room has the function of preventing spark and separating gas and dust,and reducing dust's direct impact on the filter element, thus extending the service life of filter element.
6.
Reasonable air duct with submerged flow baffle structure, low wind pressure loss, high dust collection efficiency, no escap. Convenient and quick to clean the dust in drawer.
7.
High efficiency nano flame-retardant filter element, imported material, large filtration area, low wind pressure loss, high flame retardant grade,high temperature resistance, g
ood wear resistance, no risk of spontaneous combustion, high efficiency and precise.
8.
Wide range of uses: Welding fume dust removal, powder removal,grinding and polishing dust removal, small specific gravity fine metal cutting dust removal
9.
One-button start switch, electronic control system is easy to operate, reliable and durable. Automatic pulse jet blowing-back dust removal device can clean dust in machine effectively
10.Equipped with overcurrent and overload protection. Adopting famous brand motors
11
.Equipped with brake casters, flexible and reliable.
Company Introduction
Qingdao Power Space Environmental Protection Co.Ltd is a manufacture of industrial laser
fume ,welding and grinding extractors for more than 12years.
We have our own Brand of POWERSPACE, and OEM available.
Power Space has passed the China Environmental Protection Product CCAEPI-EP certification of the Ministry of Ecology and
Environmental Protection of China, ISO9001 quality management certification, ISO14001 environmental management certification,
OHSAS18001 occupational health and safety management certification, and Europe CE certification.
Power Space possesses 45 national patents and 11 patents are pending. possesses 45 national patents and 11 patents are pending.
fume ,welding and grinding extractors for more than 12years.
We have our own Brand of POWERSPACE, and OEM available.
Power Space has passed the China Environmental Protection Product CCAEPI-EP certification of the Ministry of Ecology and
Environmental Protection of China, ISO9001 quality management certification, ISO14001 environmental management certification,
OHSAS18001 occupational health and safety management certification, and Europe CE certification.
Power Space possesses 45 national patents and 11 patents are pending. possesses 45 national patents and 11 patents are pending.
FAQ
Q:Do you have stock products to sell?
A: Yes.We have our own brand of POWER SPACE and LEOVA. OEM order is also acceptable .
Q:What is your MOQ?
A: 1 set.
Q:What certificates can offer?
A: CE and ISO.
Q:What kind of payment do you accept ?
A: T/T, L/C, Alibaba Credit Insurance etc,negotiable.
Q:What is the status of After-sale Services for customers and machines?
A: We provide on-line free technical support for whole life . Also ,if necessary, engineers available to service machinery overseas,but extra charges are needed.
Q:How many years since you have been in this field ?
A : More than 12 years .We have rich experience for designing and manufacturing the machinery.
Q:How to contact you?
A: Wechat/WhatsApp/Mobile:+86 13791957196 ,I will reply you as soon as possible.
A: Yes.We have our own brand of POWER SPACE and LEOVA. OEM order is also acceptable .
Q:What is your MOQ?
A: 1 set.
Q:What certificates can offer?
A: CE and ISO.
Q:What kind of payment do you accept ?
A: T/T, L/C, Alibaba Credit Insurance etc,negotiable.
Q:What is the status of After-sale Services for customers and machines?
A: We provide on-line free technical support for whole life . Also ,if necessary, engineers available to service machinery overseas,but extra charges are needed.
Q:How many years since you have been in this field ?
A : More than 12 years .We have rich experience for designing and manufacturing the machinery.
Q:How to contact you?
A: Wechat/WhatsApp/Mobile:+86 13791957196 ,I will reply you as soon as possible.
