Quick Details
-
Dimensions (L x W x H) (mm):
-
5050x2200x1550
-
Place of Origin:
-
hubei ,china
-
Product name:
-
Car Towing Wrecker Truck
-
Chassis brand:
-
Dongfeng Sinotruk Faw Bei Ben Tow
-
Driving type:
-
4x2/6x2/6x4/8x4/8x6/4x4/6x6/etc
-
Type:
-
One-to-two Equipment
-
Certificate:
-
CCC ISO SGS BV
-
Loading capacity:
-
30ton wrecker Towing Truck
Quick Details
-
Emission Standard:
-
Euro 2
-
Condition:
-
New
-
Brand Name:
-
chengliwei
-
Dimensions (L x W x H) (mm):
-
5050x2200x1550
-
Place of Origin:
-
hubei ,china
-
Product name:
-
Car Towing Wrecker Truck
-
Chassis brand:
-
Dongfeng Sinotruk Faw Bei Ben Tow
-
Driving type:
-
4x2/6x2/6x4/8x4/8x6/4x4/6x6/etc
-
Type:
-
One-to-two Equipment
-
Certificate:
-
CCC ISO SGS BV
-
Loading capacity:
-
30ton wrecker Towing Truck
Product Description
CKD SKD 20 ton 10TONS 8tons 3tons 4tons 15tons Underlift car wrecker for sale,towing 3-5 ton vehicle small China recovery truck
M ore equipment showing here
The boom section of the boom has six sides, the strength and the stability of the boom are both big and the structure of the four sides. Towing hook: 40tons Crane capacity : 25tons Lifting height :6500mm The maximum lifting height of 12000mm. Multi valve, balance valve with Italy original import parts; hydraulic cylinder, hydraulic connector using German technology; full import seal. The vehicle is equipped with 2 150KN (hydraulic hoist winch), 55 meter wire rope, The three section boom, three arm, split carriage, bilateral linkage operation device, the front bumper of the counterweight, After working light 3, 1 hand washing boxes, 1 sets of U type holding device, 5 pairs of bracket, 1 pairs of holder, N. 2, 1 a long row of lights, Auxiliary lamp assembly 1 sets, Auxiliary brake trachea assembly 1 sets
|
Rated lifts quality
|
50000 kg
|
|
corbel telescopic stroke
|
1200 mm
|
|
Corbel maximum effective length
|
1300 mm
|
|
Maximum tractor speed
|
40 km / h
|
|
flatbed
|
30feet
|
|
drive type
|
8x4
|
difference of the rotator wrecker and joint wrecker
Hexagonal two-section boom with 30 tons towing
Three-section bracket
Split carriage
Double-sided linkage operating device
Rear work lights 3
2 100KN hydraulic hinges (45m wire rope)
U-shaped tire holding device 1 set
Supporting fork 4 pairs
1 pair of steel lifting ear support fork
1 pair of trailer seat
Auxiliary brake tracheal assembly 1 set
-

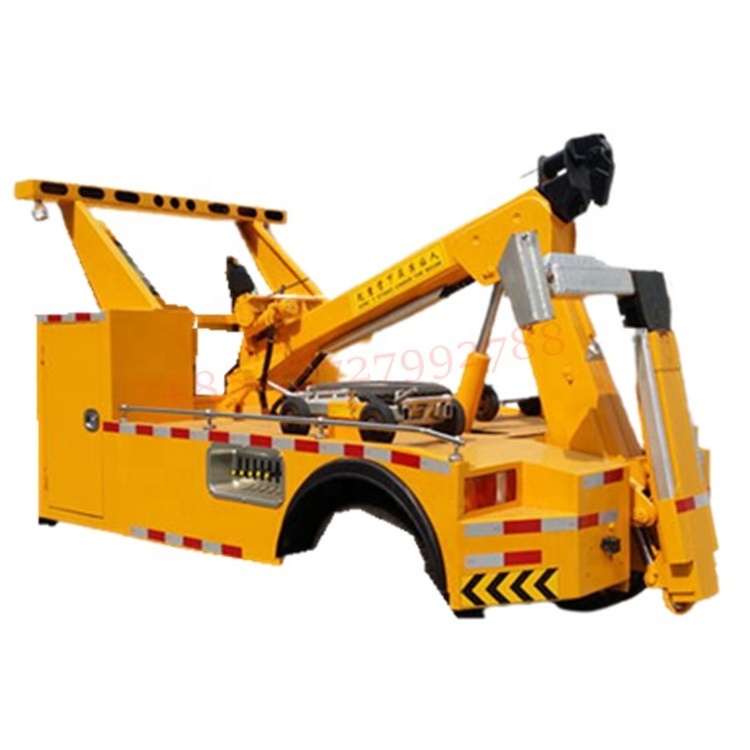

wrecker boom details
-
The
wrecker boom
can rotate 360 degrees in all directions, and adopts the advanced double hinge point mechanism in the United States, which can fold the boom when the arm is under load;
The cross section of the boom adopts a hexagonal shape, and its strength and stability are both large and quadrangular structure.
Size Information
Size Chart of This Design
|
wrecker size
|
6x4
|
6x4
|
8x4
|
8x4
|
8x4
|
|
wheelbase
|
3300+1350
|
3800+1350
|
1300+3950+1350
|
1300+4175+1350
|
1300+4500+1350
|
|
Length
|
7600
|
7800
|
8000
|
8200
|
8500
|
Company Introduction
chengli company
Our Services & Strength
we have 1 year warranty
FAQ
our MOQ is 1 unit
Contact information
Ms xi chen
Email: chinatrucks @ foxmail.com
Whatsapp/Wechat/Mobile:0086-18727992788
CKD SKD 20 ton 10TONS 8tons 3tons 4tons 15tons Underlift car wrecker for sale,towing 3-5 ton vehicle small China recovery truck
