Quick Details
-
BCD Curve:
-
B,C,
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ETEK
-
Model Number:
-
EKL5-63SM 2P
-
Rated Frequency (Hz):
-
50/60Hz
-
Number of Pole:
-
2
-
Product name:
-
EKL5-63SM
-
Certificate:
-
CE
-
Pole:
-
2P
-
Breaking Current:
-
6000A
-
Control Mode:
-
Hand and automatic integrated control
-
Current:
-
16-63A
-
Communication Methods:
-
4G, WIFI ,485
-
Standard:
-
IEC61009-1
Quick Details
-
Breaking Capacity:
-
6KA
-
Rated Voltage:
-
240V/415V
-
Rated Current:
-
16-63A
-
BCD Curve:
-
B,C,
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ETEK
-
Model Number:
-
EKL5-63SM 2P
-
Rated Frequency (Hz):
-
50/60Hz
-
Number of Pole:
-
2
-
Product name:
-
EKL5-63SM
-
Certificate:
-
CE
-
Pole:
-
2P
-
Breaking Current:
-
6000A
-
Control Mode:
-
Hand and automatic integrated control
-
Current:
-
16-63A
-
Communication Methods:
-
4G, WIFI ,485
-
Standard:
-
IEC61009-1

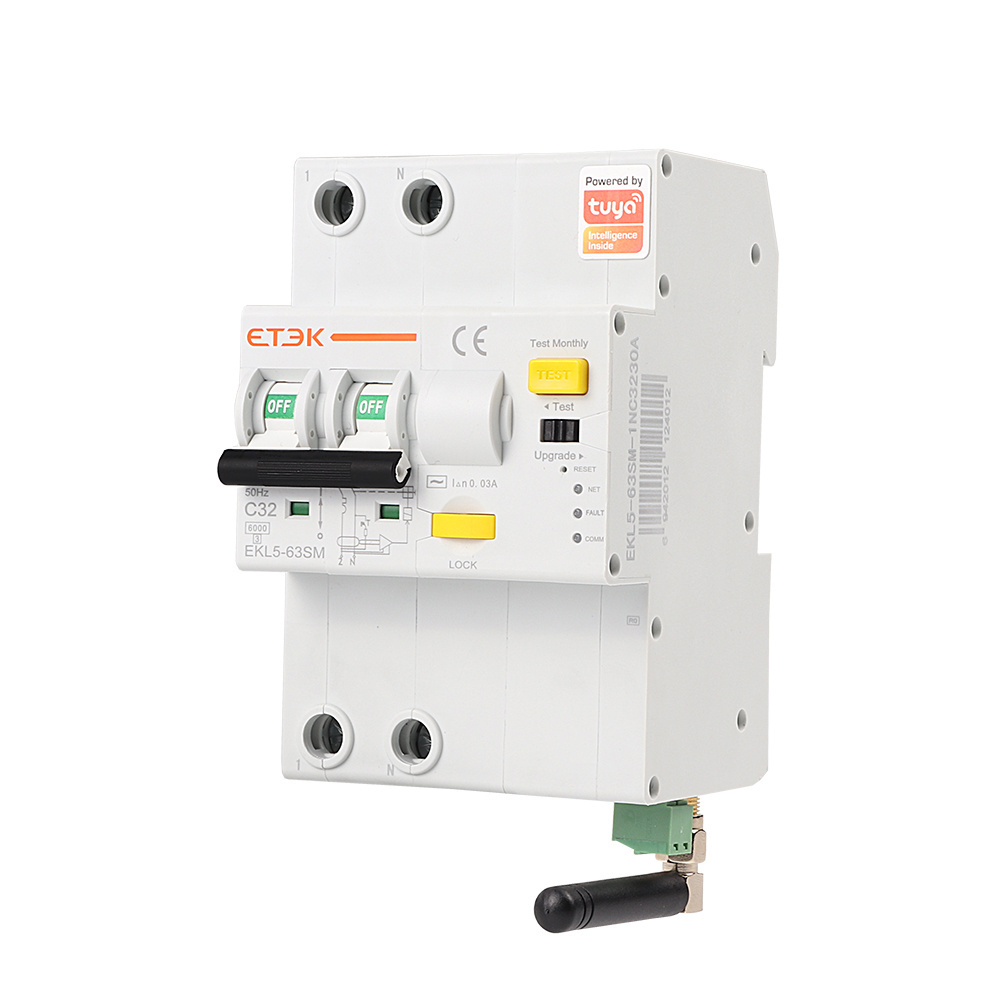

Product Description
Technical Data
|
Main Technical Parameters
|
|
|
|
Product Model
|
EKL5-63SM
|
|
|
Pole
|
2P 4P
|
|
|
Breaking Current
|
lcs=lcu≤6000A
|
|
|
Control Mode
|
Hand and automatic integrated control
|
|
|
Leakage Protection
|
Leakage breaker time≤0.1s
|
|
|
Power Limiting
|
Circuit broken after exceeding the limit power by 5s
|
|
|
Rated Voltage
|
240V,415V
|
|
|
Rated Current
|
16A,25, 32A,40A,63A
|
|
|
Rated Sensitivity Currents l△ n
|
30,100,300mA
|
|
|
Ambient Temperature
|
-40℃~+70℃
|
|
|
Relative Humidity
|
≤95%
|
|
|
Short-circuit Protection
|
≤0.04s power off time
|
|
|
Communication Methods
|
4G, WIFI,485
|
|
|
Trip Type
|
B,C
|
|
|
Parameters Settings
|
Leakage Detection， Over-Under-Voltage Protection， Rated Current，Voltage，Power Temperature，Etc
|
|
|
RS485 Interface Baud Rated
|
9600bps
|
|
|
Power Consumption
|
＜2W
|
|
|
Installation Method
|
Din rail mounting
|
|
|
Metrology Accuracy
|
Voltage and current accuracy 1%，Energy accuracy 2%
|
|
|
Execution Standards
|
IEC61009-1
|
|
|
Product Buttons and Lighting Descriptions
|
|
|
||
|
Operation Handle
|
Manually toggle up and down to control the circuit breaker to open and close, up is closed, down is opened
|
|
||
|
Contact Position Indicator Window
|
Red is closed, green is open
|
|
||
|
|
Flashing 300ms off,300ms on
|
Connected to the network
|
||
|
|
Flashing 300ms off,300ms on
|
Remote upgrade
|
||
|
|
Flashing 100ms off,1900ms on
|
Connection to the server Successfully
|
||
|
|
100ms on，400ms off
|
Mechanism locked
|
||
|
|
100ms on，900ms off
|
Manual opening
|
||
|
|
Exitinguish
|
No alarm
|
||
|
|
500ms flashing
|
With alarm
|
||
|
|
Solid Light
|
Press the key to reboot into boot
|
||
|
|
Exitinguish
|
Trouble-free
|
||
|
|
100ms on，400ms off
|
Mechanism Failure
|
||
|
|
100ms on，100ms off
|
Metering Fault
|
||
