Quick Details
-
After-sales Service Provided:
-
Video technical support, Online support
-
Dimensions (L x W x H) (mm):
-
9000x2500x3800mm
-
Place of Origin:
-
Hubei, China
-
Product name:
-
Feed Transport Truck
-
Keyword:
-
Bulk Grain Delivery Truck
-
Driving type:
-
4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice
-
Application:
-
Transport
-
Chassis brand:
-
DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
-
Chassis Optional:
-
HONGYAN
-
Name:
-
Feed Transport Truck
-
Type:
-
Heavy Duty Truck
-
Power (L):
-
325Ps
-
Color:
-
Customer's Requirement
Quick Details
-
Condition:
-
New
-
Gross Vehicle Weight:
-
18000
-
Brand Name:
-
clw
-
After-sales Service Provided:
-
Video technical support, Online support
-
Dimensions (L x W x H) (mm):
-
9000x2500x3800mm
-
Place of Origin:
-
Hubei, China
-
Product name:
-
Feed Transport Truck
-
Keyword:
-
Bulk Grain Delivery Truck
-
Driving type:
-
4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice
-
Application:
-
Transport
-
Chassis brand:
-
DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
-
Chassis Optional:
-
HONGYAN
-
Name:
-
Feed Transport Truck
-
Type:
-
Heavy Duty Truck
-
Power (L):
-
325Ps
-
Color:
-
Customer's Requirement
Dongfeng 20 square bulk feed truck parameter configuration
|
Name of vehicle |
Dongfeng 4x2 bulk feed truck |
CLW |
CLW |
|
Vehicle size |
9000x 2500×3800 mm |
Standard volume of material tank |
20m ³ |
|
Load weight |
10-15 tons |
Total mass |
18000Kg |
|
Rated quality |
8900Kg |
Quality of equipment |
8905Kg |
|
Hydraulic system winch |
Imported hydraulic components |
Electric system winch |
Domestic parts/imported parts optional |
|
Number of feed silo |
3 |
Material of tank body |
3mm manganese steel plate |
|
Discharge time |
15 minutes |
Discharge speed |
≥500kg/min |
|
Discharge residue rate |
≤1 % |
Maximum elevation of gargoyles |
6 0 ° |
|
Horizontal maximum transfer distance |
7.2 metres |
Maximum vertical feed height |
9 metres |
|
Discharge rotation angle |
360 degrees (180 degrees on one side) |
|
|
|
Feed truck chassis parameter configuration |
|||
|
Chassis type |
DF |
The engine |
Cummins 180 horsepower |
|
Gearbox |
8-speed gearbox |
Wheelbase |
5100mm |
|
Number of axes |
2 axes |
Number of tyres |
6 |
|
Tire specifications |
10.00R20 |
Emission standards |
Optional |
|
Optional installation of bulk feed truck |
|||
|
Electric winch can be selected according to the actual situation of users (three-phase electrical supporting place) , for the non-three-phase electrical place, electric system winch can also choose three-phase generator or choose hydraulic winch. The whole vehicle has 3 winches driven by 35.5 kw motors, the top winch is lifted by hydraulic control, the electric control part of the electric winch can rotate 180 ° from left to right can be made in China or imported parts, optional wireless remote unloading operation. Hydraulic system winch, all hydraulic system parts, hydraulic pump, hydraulic motor, hydraulic multi-way valve, high-pressure explosion-proof pipe are imported parts, hydraulic pump for vane pump, uniform flow, smooth operation, low noise, more efficient and durable than gear pumps. The whole winch is composed of a horizontal winch, a vertical winch and a lifting winch. |
|||

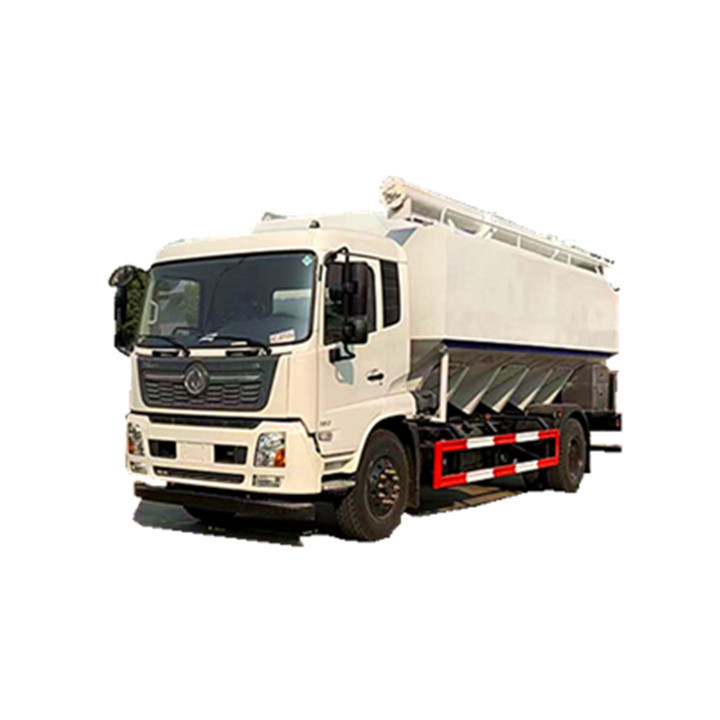

Product Pictures
Hubei Hesheng Automobile Co., Ltd. is located in Suizhou City, Hubei Province, the capital of China's special purpose vehicles. Registered brand "He Shengxing", the company registered capital of 20 million yuan, the total assets of 15 million yuan, is a professional engaged in all kinds of special vehicles and accessories R & D, manufacturing, sales of special vehicle enterprises.
The company consists of refrigerated truck division, agriculture and animal husbandry transport vehicle division, sanitation vehicle division, emergency vehicle division, international trade division, bidding division, after-sales service division, with professional R & D and technical personnel 10, technical workers 150 people, professional marketing personnel 20 people. The company adhering to the "single-minded, dedicated, professional" concept of annual production and sales of more than 2000 special purpose vehicles.
The company has a large plate bending machine, plasma cutting machine, ultra-long refrigerated car plate forming equipment, automatic welding robots and other equipment, the establishment of a perfect after-sales service system, the company's after-sales service department 24 hours on standby, the national after-sales response within 10 minutes, for special equipment failure my company 24-48 hours of technicians door service; The faulty parts within the three guarantee period are replaced free of charge, and special parts are provided for life.
1. What are your strengths? We have 15 years of export experience, the products have been exported to Africa, the Middle East, Southeast Asia, South and more than 60 countries and regions, we have professional after-sales service technical team, can solve your problems in time .
2. Which method of payment do you accept? Letters of credit and wire transfers.
3. We'd like a truck with tubeless tires, would that be all right? That's okay. Radial Tire and tubeless tires are optional.
4. We want CKD or SKD import products, OK? That's OK, we can support CKD or SKD depending on the situation.
5. How can you deliver the goods?
We can transport construction machinery by various means of transport. (1) for our main shipments, the machines will be shipped in containers or roll-on/bulk. (2) for China's landlocked neighbors, we can send machines by road or rail. Spare parts for emergency needs can be sent via DHL , TNT, UPS or FEDEX.
