1 x Power Plug
1 x Charging Cable
1 x Remote Controller
1 x User Manual
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-

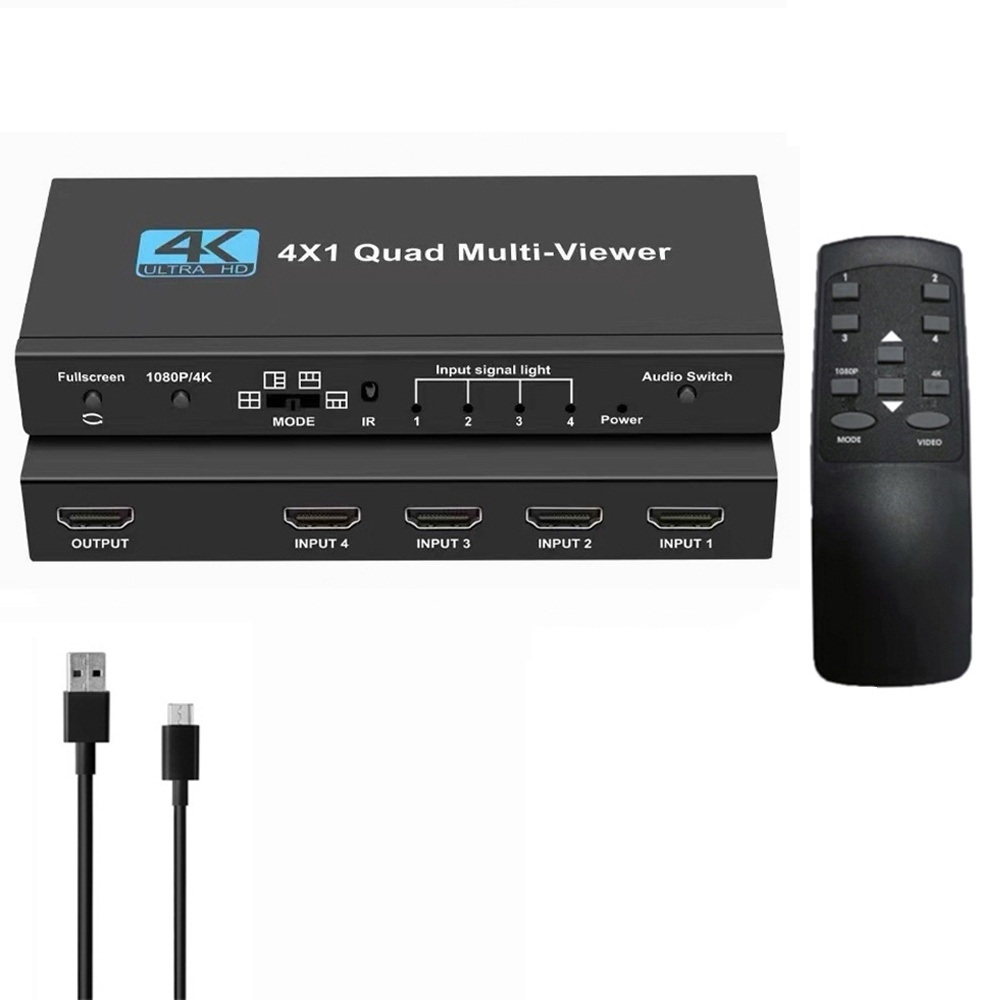

4x1 HDMI Multi-viewer switcher
Quick Details
-
Model Number:
-
H4
-
Place of Origin:
-
China
-
Brand Name:
-
Joycent
-
Product name:
-
4x1 HDMI Multi-viewer switcher
Products Description
Descriptions:
*Supports 4 HDMI input, 1 HDMl output
*Support 4 HDMl signal screen segmentation
*Support 4 HDMl signal seamless switching
*Switch between 1080P/60Hz and 4K/30Hz,
support highest resolution up to4K60Hz(YUV)(force the output in the output device), 4K30HZ (RGB) and backward compatible
*SupportHDMI1.4,HDCP1.4 and backward compatible
*HDMl input and output transmission distance:high speed HDMl cable canreach up to 15M.(HDMIcable 19+1,28AW)
*Support IR control
*Power Supply: DC5V2A
Features:
Features:
Support HDMI resolution: 24/50/60fs/4k60(YUV)/4K30HZ/1080P/1080i/720p/576p/576i/480p/480
Support video color format:24bit/30bit/36bit.
Support audio input format:DTS-HD/Dolby-realHD/LPCM7.1/DTS/Dolby-AC3/DSD
Support audio output format: LPCM,PCM2
Max bandwidth: 330Mhz
Max bandrate: 10.2Gbps
Input/Output TMDS signal:0.5~1.5V p-p(TTL)
Input/Output DDC signal: 5Volts p-p(TTL)
Input cable distance: <15mAWG24 HDMI standard cable
Output cable distance: <24mAWG24 HDMI standard cable
Max working current: 5V/0.6A
Operating Temperature range :
(-15~+55°C)
Operating Humidity range: 5~90%RH(No Condensation)
Dimension (L x W x H): 148*63*23mm
Weight: 206g
Details Images
Product packaging
Packaged Inclued:
1 x HD-MI D
istributor
Our Service
Delivery:
1. Sample order: 3-5 working days.
2. Formal order: 10-15 working days
3.Shipping: We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS.
Payment:
T/T ,Western Union, Paypal.
Before you make the payment, please contact with us first.
