Quick Details
-
Product Name:
-
Double row screw terminal block
-
Rated Current:
-
15A/25A/45A
-
Rated Voltage:
-
600V
-
Screws:
-
M3/M4/M5
-
Screw Plating:
-
White Zinc / Color Zinc
-
Metal Material:
-
Brass/Iron
-
Conductor Plating ( Brass):
-
Nickel Plated Brass
-
Conductor Plating (Iron):
-
Galvanized Iron
-
Poles:
-
3P/4P/5P/6P/8P/10P/12P
-
Application:
-
Automotive
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHFRPU
-
Model Number:
-
TB series
-
Product Name:
-
Double row screw terminal block
-
Rated Current:
-
15A/25A/45A
-
Rated Voltage:
-
600V
-
Screws:
-
M3/M4/M5
-
Screw Plating:
-
White Zinc / Color Zinc
-
Metal Material:
-
Brass/Iron
-
Conductor Plating ( Brass):
-
Nickel Plated Brass
-
Conductor Plating (Iron):
-
Galvanized Iron
-
Poles:
-
3P/4P/5P/6P/8P/10P/12P
-
Application:
-
Automotive

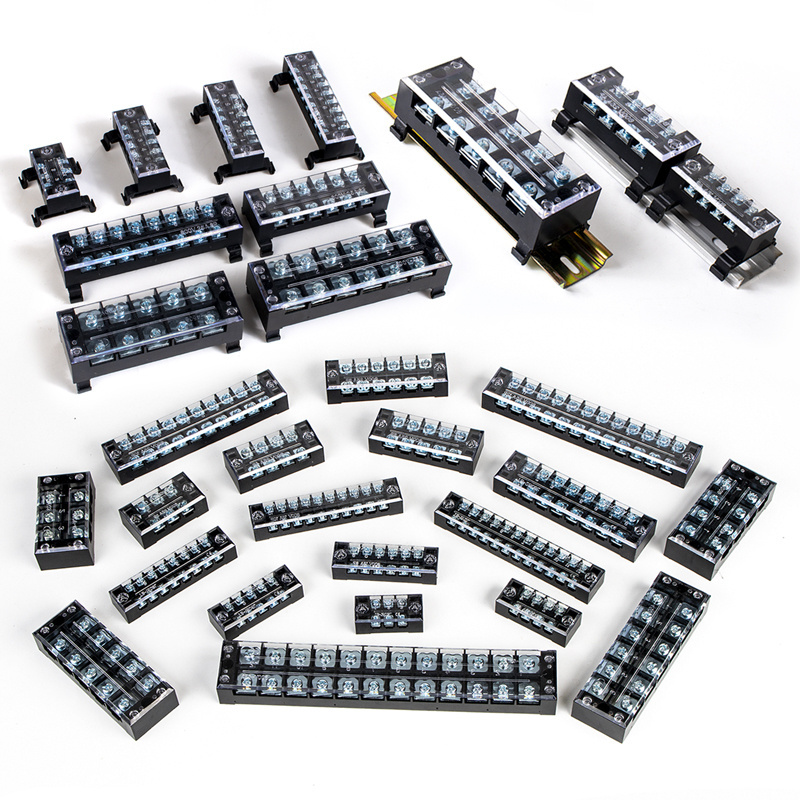

CHFRPU Manufacturer 600V TB series fixed type fence screw terminal 15A 25A 45A double row fixed barrier terminal block
Products Description
|
Manufacturer
|
CHFRPU TERMINAL BLOCK CO.,LTD
|
|
|
|
|||
|
Model Number
|
TB series
|
|
|
|
|||
|
Type
|
Screw Terminal
|
|
|
|
|||
|
Rated Current
|
15A
|
|
|
|
|||
|
Rated Voltage
|
600V
|
|
|
|
|||
|
Screws
|
M3/M4/M5
|
|
|
|
|||
|
Metal Material
|
Brass/iron
|
|
|
|
|||
|
Poles
|
3P/4P/5P/6P/8P/10P/12P
|
|
|
|
|||
|
Application
|
Automotive
|
|
|
|
|||
Product Size
|
Model
|
Applicable cable
(mm²)
|
Rated Current
|
Dimension(mm)
|
|
|
|
|
|
Screw
|
|||||
|
|
|
|
L
|
H
|
W
|
D
|
S
|
d
|
|
|||||
|
TB1503
|
0.5-1.5
|
15A
|
45.6
|
17
|
22
|
35
|
7.4
|
9
|
M3
|
|||||
|
TB1504
|
|
|
54.2
|
17
|
22
|
44
|
|
|
|
|||||
|
TB1505
|
|
|
63.0
|
17
|
22
|
52.4
|
|
|
|
|||||
|
TB1506
|
|
|
72.2
|
17
|
22
|
61.3
|
|
|
|
|||||
|
TB1508
|
|
|
90.1
|
17
|
22
|
79.4
|
|
|
|
|||||
|
TB1510
|
|
|
107.2
|
17
|
22
|
96.2
|
|
|
|
|||||
|
TB1512
|
|
|
125.2
|
17
|
22
|
114.5
|
|
|
|
|||||
|
TB2503
|
0.5-2.5
|
25A
|
55.1
|
19.2
|
30
|
44.2
|
10.3
|
12
|
M4
|
|||||
|
TB2504
|
|
|
67.2
|
19.2
|
30
|
55.8
|
|
|
|
|||||
|
TB2505
|
|
|
79.1
|
19.2
|
30
|
67.6
|
|
|
|
|||||
|
TB2506
|
|
|
91.0
|
19.2
|
30
|
79.8
|
|
|
|
|||||
|
TB2508
|
|
|
115.1
|
19.2
|
30
|
103.7
|
|
|
|
|||||
|
TB2510
|
|
|
139.2
|
19.2
|
30
|
127.6
|
|
|
|
|||||
|
TB2512
|
|
|
162.6
|
19.2
|
30
|
151.1
|
|
|
|
|||||
|
TB4503
|
0.5-4.0
|
45A
|
69.4
|
23.5
|
37.6
|
58.6
|
15.1
|
16.6
|
M5
|
|||||
|
TB4504
|
|
|
86.1
|
23.5
|
37.6
|
75.4
|
|
|
|
|||||
|
TB4505
|
|
|
102.6
|
23.5
|
37.6
|
91.7
|
|
|
|
|||||
|
TB4506
|
|
|
119.2
|
23.5
|
37.6
|
108.3
|
|
|
|
|||||
|
TB4510
|
|
|
186.0
|
23.5
|
37.6
|
175.1
|
|
|
|
|||||
|
TB4512
|
|
|
219.2
|
23.5
|
37.6
|
286.6
|
|
|
|
|||||
The rated voltage of all TB series is 600V.
