p5 led videotron/ indoor LED video wall screen display LED for advertising

FOB Reference Price: Get Latest Price

≥10 Square meters

US $861

Free Inquiry

Customized Request

Quick Details

Product Description

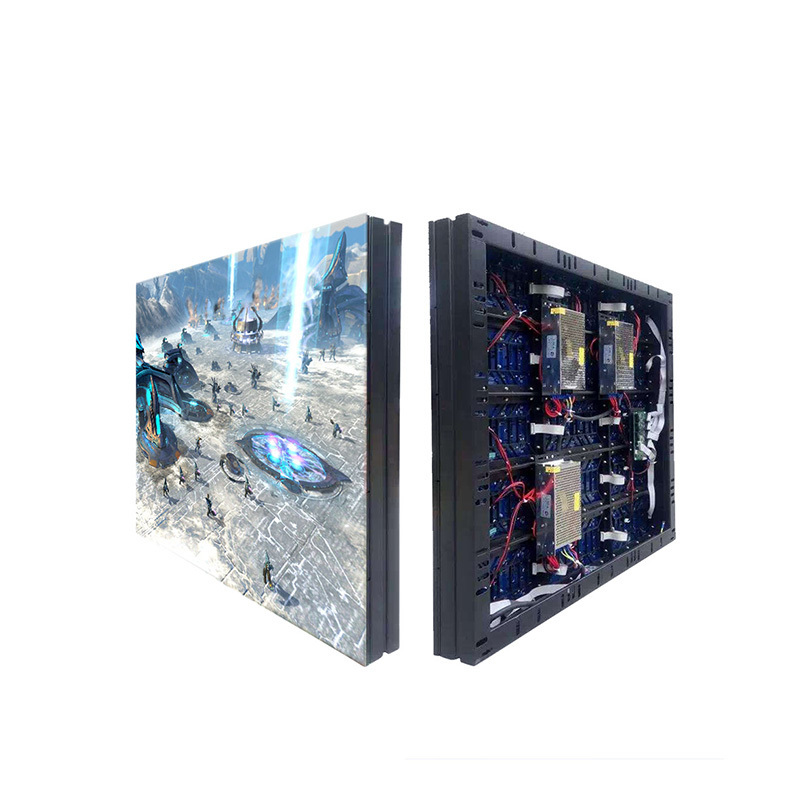

p5 full color LED screen/ led indoor large screen display for nightclub

-Screen Parameter

No	Item	Parameter
1	Standard Caninet Size	640mm640mm75mm
2	Cabinet Weight	5.5KG/13.75KGS
3	Brightness/Adjustment	≥4600cd/m²， Level 16- Automatic / Level 100-Manual operation
4	View Angle	≥120°（Vertical），≥120°（Horizontal）
5	Best View Distance	5-15m
6	Grey Scale	Within 65536 Step
7	Frame Frequency	≥60Hz
8	Refresh Rate	≥720Hz
9	Signal Input Source	Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI
10	Scan Mode	1/16Scan
11	Drive IC	5020
12	Module Qty / M2	16
13	Display Color Qty	16777216
14	Continuous Working Time	>24（Hrs）
15	Screen Lifespan	>100,000（Hrs）
16	MTBF	>5000（Hrs）
17	Max. power consumption	800W/㎡
18	Ave. power consumption	240W/㎡
19	Out of control pixel rate	≥3/10,000(discrete distribution)
20	Control Distance	100M(Ethernet) 500M(Multi-fiber) 10KM(Sigle-fiber)
21	Flatness	Screen Surface≤0.5mm，Pixel Pitch≤0.3mm
22	Operation Temperature	-10℃～+50℃
23	Working Humidity	10%～98%RH
24	Storage Temperature	-40℃～+85℃
25	Software Connection	Standard Computer Connection,Compatiable With Windows、Unix、Novell
26	protection system	Overtemperature/overload/power/image compensation/nonlinear correction
27	Working Valtage	200~240 V
28	Dielectric Strength	50HZ/1500V（AC RMS）/1min
29	Temperature Rise	Metal≤40K，Insulation≤65K , After Heat Balance
30	IP Grade	IP65
31	Computer display mode	1024*768
33	Media Player	LED Pressional Media Player
