Quick Details
-
Application:
-
Villa
-
Type:
-
automatic gate opener, Automatic Door Operators
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Giant swing gate opener
-
Model Number:
-
PKM-C05
-
Product Name:
-
swing arms motor operator
-
Max Single-leave Length:
-
3 meters
-
Max Single-leave Weight:
-
300KGS
-
Max Stroke:
-
400mm
-
Motor Speed:
-
375RPM
-
Actuator Running Speed:
-
2. 5CM/S
-
Current:
-
5A
-
Working Temperature:
-
-20°C ~ +50°C
-
Max Gate Open Angle:
-
110 degree
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Villa
-
Type:
-
automatic gate opener, Automatic Door Operators
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Giant swing gate opener
-
Model Number:
-
PKM-C05
-
Product Name:
-
swing arms motor operator
-
Max Single-leave Length:
-
3 meters
-
Max Single-leave Weight:
-
300KGS
-
Max Stroke:
-
400mm
-
Motor Speed:
-
375RPM
-
Actuator Running Speed:
-
2. 5CM/S
-
Current:
-
5A
-
Working Temperature:
-
-20°C ~ +50°C
-
Max Gate Open Angle:
-
110 degree
Product Description
|
Item
|
PKM-C05 Per Leaf 300KG
|
|
Power Supply
|
AC 220V/110V
|
|
Motor Power
|
24VDC 40W*2
|
|
Max Single Leaf Weight
|
300KG
|
|
Max Single Leaf Width
|
3M
|
|
Actuator Stroke
|
400MM
|
|
Motor Speed
|
375RPM
|
|
Actuator Running Speed
|
2. 5CM/S
|
|
Max Gate Open Angle
|
110 degree
|
|
Working Temperature
|
-20°C ~ +50°C
|
New PKM-C05 300KG
Per Leaf Electric Auto Gate System Automation Swing Operator Swing Gate Opener
FEATURES
Manually adjust the limit
* Operating Voltage: DC 24V
* Operate the single gate width up to 3M
* Operate the single gate weight up to 300KG
* Adjustable Force
* Adjustable time-delay
* Manual Release
* Microprocessor based control panel
* Working time protection
* Available to connect photocell, loop detector, card reader,backup battery etc.
Advantage of our swing gate operator
1.Control panel can connect flashing light, photocell, back up battery, solar system, keypad and so on.
2.Controlling single or double-leaf motor is optional.
3.Can adjust open and close door time.
4. 24VDC back-up battery can be input. (this is use large controller,our standard controller is small size.)
5.High speed operate can be adjustment.
6.Set extra remote control is easily.
7.Work with wifi device to operated the gate on Mobile Phone App.
2.Controlling single or double-leaf motor is optional.
3.Can adjust open and close door time.
4. 24VDC back-up battery can be input. (this is use large controller,our standard controller is small size.)
5.High speed operate can be adjustment.
6.Set extra remote control is easily.
7.Work with wifi device to operated the gate on Mobile Phone App.
Packing & Delivery

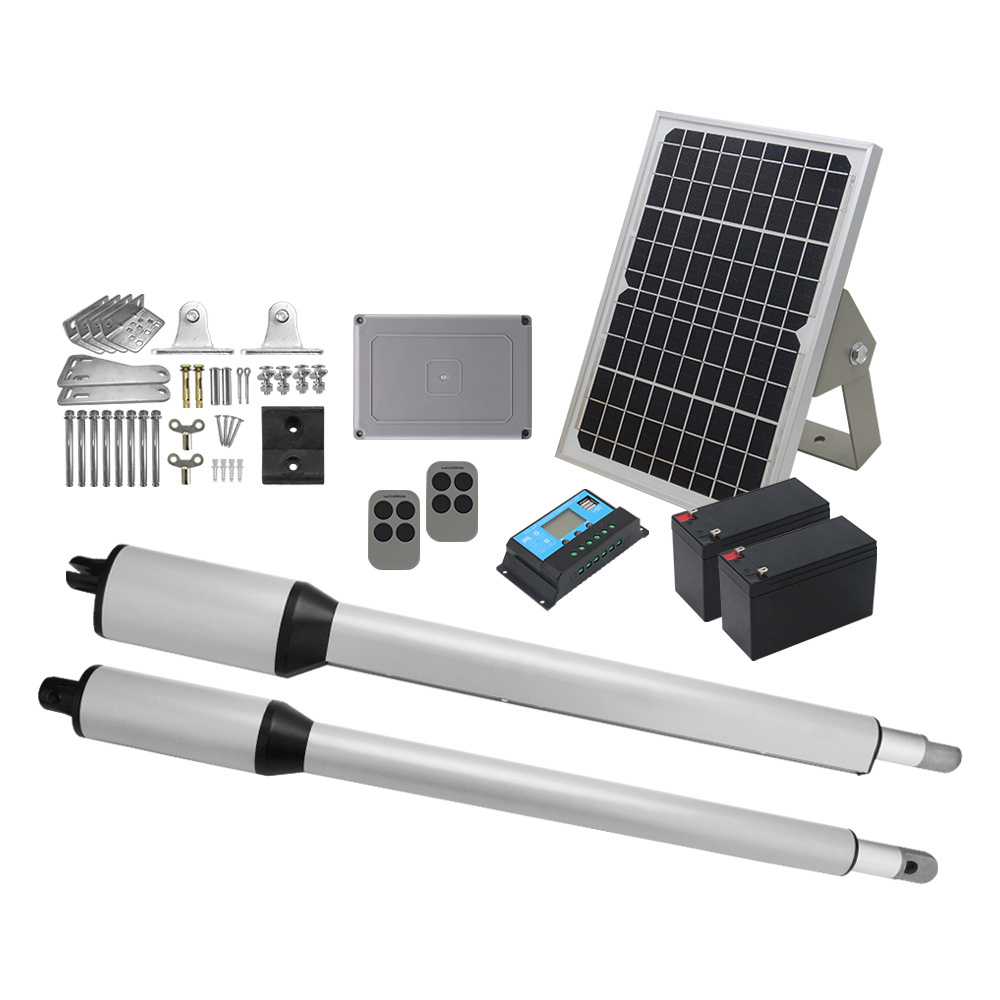

STANDARD KIT
2 x Heavy duty motor that are pre-wired with motor cables
2 x Override spanners
2 x Remote controls
1 x Control panel
2 x Post mounting bracket
2 x Gate mounting bracket
1 x Rubber Gate Stop
1 x Instruction manual
2 x Override spanners
2 x Remote controls
1 x Control panel
2 x Post mounting bracket
2 x Gate mounting bracket
1 x Rubber Gate Stop
1 x Instruction manual
