Quick Details
-
Control Mode:
-
Touch Control, APP Control, Sensor control
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Die-casting Man
-
Model Number:
-
YASL-29-160
-
Color Temperature(CCT):
-
3000/4000/6500
-
Beam Angle(°):
-
30/60/120/180
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
AC90-305V
-
Lamp Luminous Flux(lm):
-
11600~12000 lm
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 50
-
Power:
-
150W/160W/180W/200W
-
Color Temperature:
-
2700/3000/4000/6500
-
Efficiency:
-
38000lm
-
Voltage:
-
AC90-305V
-
Power Factor:
-
PF≥0.95
-
CRI(Ra):
-
Ra≥70
-
Ambient Temperature:
-
-40-50℃
-
Ambient Humidity:
-
20%-90%
-
Lifetime(hrs):
-
50000
-
Installation Pipe Diameter:
-
60mm
Quick Details
-
Warranty(Year):
-
5-Year
-
Power Supply:
-
AC
-
Lighting solutions service:
-
Lighting and circuitry design, Project Installation
-
Control Mode:
-
Touch Control, APP Control, Sensor control
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Die-casting Man
-
Model Number:
-
YASL-29-160
-
Color Temperature(CCT):
-
3000/4000/6500
-
Beam Angle(°):
-
30/60/120/180
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
AC90-305V
-
Lamp Luminous Flux(lm):
-
11600~12000 lm
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 50
-
Power:
-
150W/160W/180W/200W
-
Color Temperature:
-
2700/3000/4000/6500
-
Efficiency:
-
38000lm
-
Voltage:
-
AC90-305V
-
Power Factor:
-
PF≥0.95
-
CRI(Ra):
-
Ra≥70
-
Ambient Temperature:
-
-40-50℃
-
Ambient Humidity:
-
20%-90%
-
Lifetime(hrs):
-
50000
-
Installation Pipe Diameter:
-
60mm
Products Description

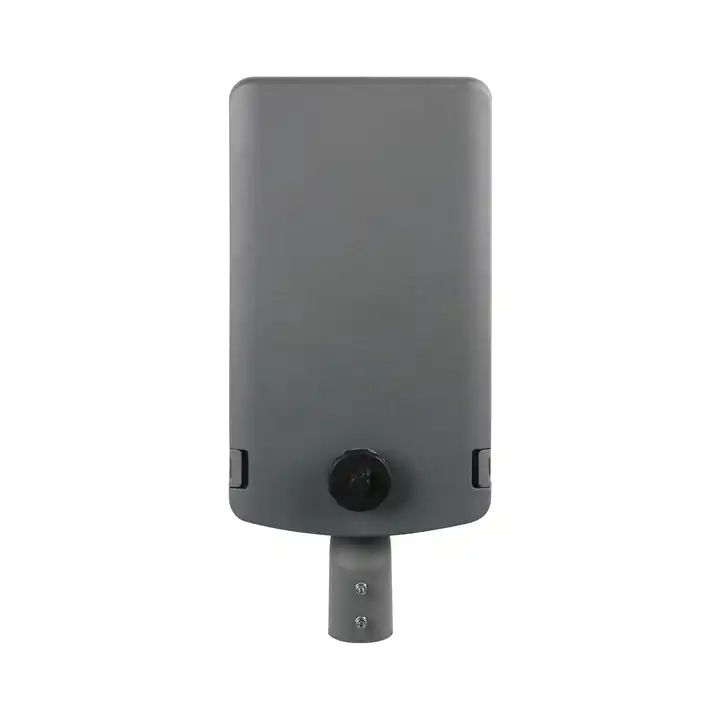

LED Street Light YASL-29 series
lnstalling Ways:
Both Horizontal and Vertical available and adjustable angle-15°to+15°
This series is a high-performance street lighting available in three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
It shall have a led efficiency up to 130 lm/w and will be capable of producing.
Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
IP66 CE ROHS
Both Horizontal and Vertical available and adjustable angle-15°to+15°
This series is a high-performance street lighting available in three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
It shall have a led efficiency up to 130 lm/w and will be capable of producing.
Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
IP66 CE ROHS
Product Specification
|
Item NO.
|
YASL-29-40
|
YASL-29-60
|
YASL-29-100
|
YASL-29-160
|
YASL-29-240
|
||||
|
Wattage
|
30～60W
|
50～90W
|
80～140W
|
130～200W
|
200～300W
|
||||
|
lens
|
4(MAX 6)
|
6(MAX 8)
|
9(MAX 12)
|
16(MAX 20)
|
24(MAX 30)
|
||||
|
Installation Height
|
3-6m
|
4-8m
|
6-10m
|
8-14m
|
12-14m
|
||||
|
Product Size（m m）
|
576X209X89
|
593X263X89
|
646X263X89
|
709X315X89
|
812X315X89
|
||||
|
Packing Size（m m）
|
585X250X140
|
620X305X140
|
665X305X140
|
730X360X140
|
840X360X140
|
||||
|
Net Weight
|
3.8kgs
|
4.1kgs
|
4.6kgs
|
7.4kg
|
9.5kg
|
||||
|
Gross Weight
|
4.2kgs
|
4.5kgs
|
5.0kgs
|
7.9kg
|
10.5kg
|
||||
|
Installation Pipe Diameter
|
φ45/60mm
|
|
|
φ60/76mm
|
|
||||
|
Materials
|
Housing:ADC12;Cover:Toughened Glass；Screws:304stainless screws
|
|
|
|
|
||||
|
Body Color
|
Gray, Black, customized Ral no.
|
|
|
|
|
||||
|
LED brand
|
LUMILEDS，OSRAM，CREE option
|
|
|
|
|
||||
|
LED Chips
|
3030，5050 option
|
|
|
|
|
||||
|
Efficiency
|
130～140 lm/w，140～150 lm/w，150～160 lm/w，160～170 lm/w，170～180 lm/w option
|
|
|
|
|
||||
|
Color Temperature
|
2700K,3000K,3500K,4000K,5000K,5700K,6500K option（Reference：Energy Star)
|
|
|
|
|
||||
|
color rendering index
|
Ra≥70；Ra≥80；Ra≥90 option
|
|
|
|
|
||||
|
Optics
|
TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV option
|
|
|
|
|
||||
|
Driver brand
|
PHILIPS/OSRAM/TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS
|
|
|
|
|
||||
|
Input Voltage
|
AC90～305V
|
|
|
|
|
||||
|
Security level
|
ClassI/ClassII/Class1/Class2 option
|
|
|
|
|
||||
|
Frequency Range
|
43～63Hz
|
|
|
|
|
||||
|
Power Factor
|
PF≥0.95
|
|
|
|
|
||||
|
Working conditions Range
|
-30 to 45℃,20% to 90%RH
|
|
|
|
|
||||
|
Dimming mode
|
Time control/0-10V/ Opticalcontrol/Microwaves/DALI option
|
|
|
|
|
||||
|
Lightning protection
|
10KV/15KV/20KV option
|
|
|
|
|
||||
|
Warranty
|
5/8 year option
|
|
|
|
|
||||
|
Protection
|
Overcurrent/Short circuit/Over temperature
|
|
|
|
|
||||
|
Protection level
|
IP66;IK08/09/10
|
|
|
|
|
||||
|
Certifications
|
ENEC;CE;CB;IEC;RoHs;TUV;Lightning protection;LM-79;LM-80;IP66
|
|
|
|
|
||||
Photometric
