YouDeng 2022 high speed electric full automatic toilet roll paper cutting equipment slicing machine score cutter

YouDeng 2022 high speed electric full automatic toilet roll paper cutting equipment slicing machine score cutter

FOB Reference Price: Get Latest Price

≥1 Sets

US $10000

≥2 Sets

US $6000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: YD

Voltage:: 220V/380V or other require

Power:: 5.5KW

Dimension(L*W*H):: 3500*850*1900

Weight:: 2000 kg

Marketing Type:: Hot Product 2022

Machine model:: YBR-BC

Product name:: Toilet paper cutting machine

Design speed:: 120-150cuts/min

Production speed:: 90cuts/min,base on the length of roll

Cutting way:: Motor driving the wheel running and drive the band saw cutting

cutting length setting:: setting on touch screen,tolerance is 1mm,cutting range is 80-280mm

Finished product appearance:: Machine won't pollute the roll and make the core out of shape

Finished product height:: 30-200mm/1.18-7.87 inches

Finished product diameter:: 60-140mm/2.36-5.5inches

Programmable controller:: Programmable controller PLC

Quick Details

Production Capacity:: 300m/min

Product Type:: toilet paper machine

Place of Origin:: Guangxi, China

Brand Name:: YD

Voltage:: 220V/380V or other require

Power:: 5.5KW

Dimension(L*W*H):: 3500*850*1900

Weight:: 2000 kg

Marketing Type:: Hot Product 2022

Machine model:: YBR-BC

Product name:: Toilet paper cutting machine

Design speed:: 120-150cuts/min

Production speed:: 90cuts/min,base on the length of roll

Cutting way:: Motor driving the wheel running and drive the band saw cutting

cutting length setting:: setting on touch screen,tolerance is 1mm,cutting range is 80-280mm

Finished product appearance:: Machine won't pollute the roll and make the core out of shape

Finished product height:: 30-200mm/1.18-7.87 inches

Finished product diameter:: 60-140mm/2.36-5.5inches

Programmable controller:: Programmable controller PLC

Y oudeng machinery technology company can supply all the whole production line of toilet paper/kitchen towel making machines,including Rewinding machine, Band saw cutting machine, Single roll packing machine, Bundling packing machine and other household paper making machines.

Product Overview

Product Description

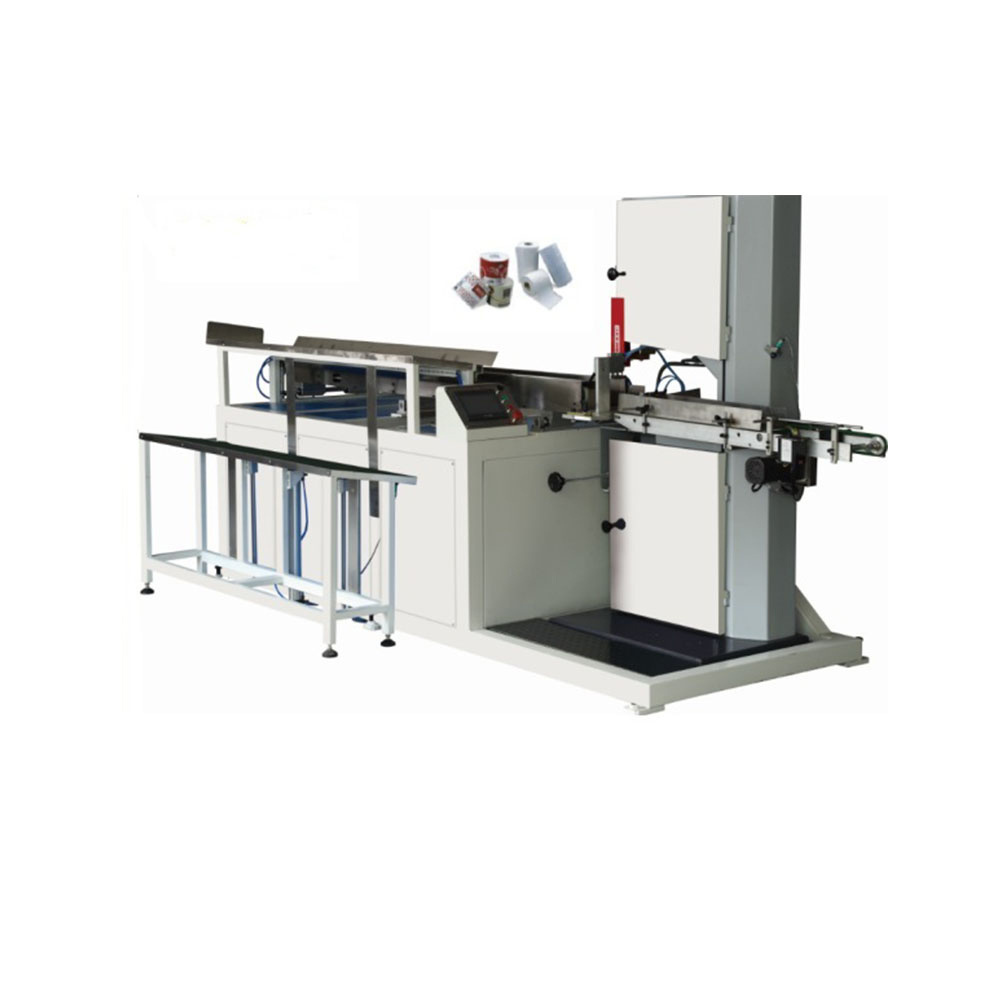

Toilet paper / Kitchen towel Band saw cutting machine

Introduction
Band saw paper cutting machine is a supporting machine for toilet paper machine and square tissue machine. The automatic band saw paper cutter is dedicated to reducing labor and increasing the safety of the paper cutting process. It can be used to cut custom-sized toilet paper rolls and square tissues.

Parameter
Machine model	YD-2	YD-3000
Max Jumbo Roll Width	3000mm (Jumbo roll width to order)	≦3000mm
Design Speed	120-150 cuts /min 1 roll /cut
Production speed	90 cuts/minm, base on the length of roll
Finished product height	30-150 mm
Power type	380V / 220V
For more parameters and customization requirements, please contact us

Finished Products Details

The cutting machine is just a step in the complete production line, you can buy it separately, if you have more details and customization needs, please feel free to contact us, you are always invited！

Liuzhou Youdeng Machinery Technology Co., Ltd

Owin Sales

Email : Owin@gxydzy.com

Moblie : +86 13296629305

Whatsapp : +86 13296629305 Add : No.9 Huarong Road, Eastern Industrial Park, Liuzhou city, Guangxi, China

You can click 【Chat Now】 on this page to communicate with me immediately, or via the business card above.

Packing&Shipping

1. Standard export packing：Inner package: Pearl film，Outter package: wooden pallet woden box，

Can be customized according to customer's requirements

2. We will test the machine many times before delivery to ensure the stable operation of the machine
3. Support the factory inspection or video inspection before delivery.
4. Wood - packed goods are fumigated before being shipped
