Quick Details
-
Brand Name:
-
TT
-
Model Number:
-
008
-
Product name:
-
Field fence
-
Material:
-
Low Carbon Steel Wire
-
Packing:
-
Carton Box
-
Key Word:
-
Field fence
-
OEM:
-
Accepted
-
MOQ:
-
10Rolls
-
Payment:
-
TT
-
Sample:
-
Free
-
Height:
-
600-2000mm
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, Sustainable, Pressure Treated Timbers
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TT
-
Model Number:
-
008
-
Product name:
-
Field fence
-
Material:
-
Low Carbon Steel Wire
-
Packing:
-
Carton Box
-
Key Word:
-
Field fence
-
OEM:
-
Accepted
-
MOQ:
-
10Rolls
-
Payment:
-
TT
-
Sample:
-
Free
-
Height:
-
600-2000mm
Recommend Products
Products Description
Galvanized Field Fencing From 1050mm to 2400mm
Field Fence also calls farm fence, cattle fence, house fence, grassland fence, sheep fence. Field fence can be used with T-post and other post. It mainly include woven wire field fence, high tensile field fence, hinged knot field fence, fixed knot field fencing, galvanized field fence, welded wire field fence, chain link field fence.
Field fence style:
1. Hinged knot field fence
2. Fixed knot field fence
Steel wire with high strength, with zinc coating layer or without.
3.Field fence material:
a) Electro galvazied iron wire
b) Hot dipped galvazied iron wire
c) High Tensile steel wire
4. Field fence common specification:
Wire Gauge:1.9-3.5mm
Edge wire diameter:1.8-2.5mm
Horizontal wire diameter:2.0-3.5mm
Vertical hole size:15cm (5-60cm)
Aperture:89-203mm
Hight size:0.85-2.4m
Length: 10-300m
5. Field fence features:
It is simple in structure;
Easy maintenance;
Short installation period;
Easy for transport;

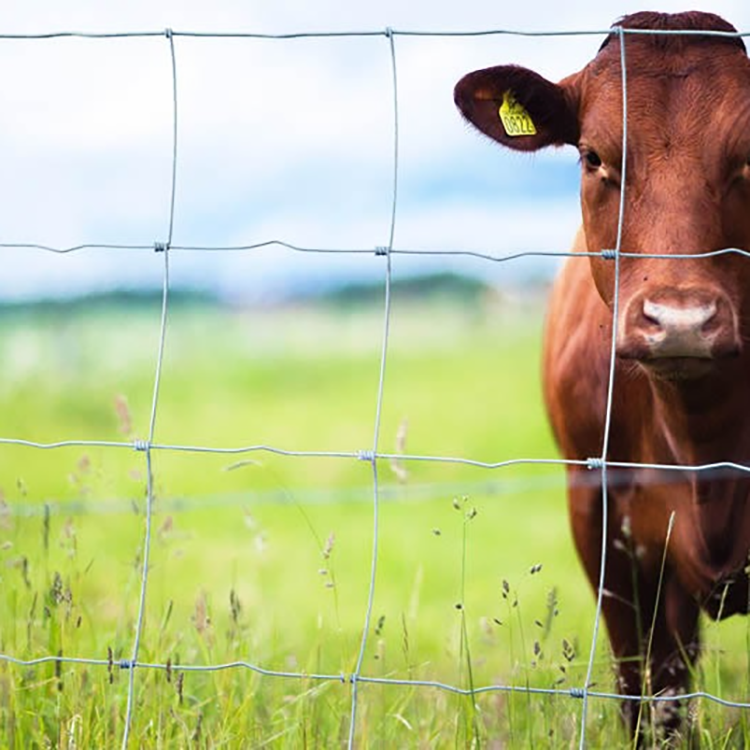

Application: Field fence is a kind of mesh used in cattle, goat, deer, and pig etc.
|
Galvanized Kraal Network/Galvanized field fence
|
|
|
|
Material
|
High tensile galvanized steel wire
High carbon Hot-dip galvanized wire Low carbon Hot-dip galvanized wire Low carbon Electric galvanized wire PVC coated wire |
|
|
Wire diameter
|
1.5mm, 1.6mm, 1.7mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm
|
|
|
Top & Bottom wire
|
2.0mm, 2.2mm, 2.5mm, 2.7mm, 3.0mm, 3.5mm, 4.0mm
|
|
|
Vertical spacing
|
150mm/6 Inch, 300mm /12 Inch
|
|
|
No. of Horizontal wire
|
7 – 23
|
|
|
Height
|
0.8m, 0.9m, 1.0m, 1.2m, 1.4m, 1.5m, etc.
|
|
|
Length
|
50m/165ft , 100m/330ft
|
|
|
Roll diameter
|
200mm – 250mm
|
|
|
Zinc coating
|
20g/m2-330g/m2
|
|
|
Finishing of fence
|
hot-dipped galvanized then paint, galvanized then Powder coated
|
|
|
Note: The fence can be customized according to your required if above specification is not satisfied with you.
|
|
|
|
|
Light Duty Fence
|
|
Middle Duty Fence
|
|
Heavy Duty Fence
|
|
Extra heavy duty fence
|
|
||||
|
|
Wire diameter (mm)
|
Minimum tensile strength
(N/mm2) |
Wire diameter (mm)
|
Minimum tensile strength
(N/mm2) |
Wire diameter (mm)
|
Minimum tensile strength
(N/mm2) |
Wire diameter (mm)
|
Minimum tensile strength,(N/mm2)
|
||||
|
Top and bottom horizontal wire
|
2.0
|
650
|
2.5
|
650
|
3.0
|
650
|
3.7
|
650
|
||||
|
Other horizontal wires and vertical wires
|
1.6
|
450
|
2.0
|
450
|
2.5
|
400
|
3.0
|
400
|
||||
|
Hinge joint field fence Types
|
Fence height (mm)
|
Horizontal wires number
|
Distance between the vertical wires (mm)
|
mesh opening number - mesh height (mm)
|
Roll length (m)
|
|
1050/13/15
|
1050
|
13
|
150
|
6-75, 6-100
|
50,100,150 |
|
1250/15/15
|
1250
|
15
|
150
|
6-75, 8-100
|
|
|
1550/18/15
|
1550
|
18
|
150
|
6-75, 11-100
|
|
|
1550/15/15
|
1550
|
15
|
150
|
11-100, 3-150
|
|
|
1850/20/15
|
1850
|
20
|
150
|
6-75, 11-100, 2-150
|
|
|
1850/16/15
|
1850
|
16
|
150
|
10-100, 3-150, 2-200
|
|
|
1950/17/15
|
1950
|
17
|
150
|
11-100, 3-150, 2-200
|
|
|
2000/21/15
|
2000
|
21
|
150
|
6-75, 11-100, 3-150
|
|
|
2400/23/15
|
2400
|
23
|
150
|
6-75, 11-100, 3-150, 2-200
|
|
|
|
|
|
|
|
|
Certifications
Product packaging
Heibei Zhuote Metal Wire Mesh Products Co., Ltd. as a manufacturer which is specializing in producing and exporting a complete series of steel grating and other wire mesh products.
Our steel grating goods have various of kinds with different material, the mainly products are high, middle and low - carbon steel, stainless steel, aluminum steel grating. And have varous of style, for example platform steel grating, special steel grating, serrated steel grating, high duty steel grating, press locked steel grating and so on. With the development of our steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities.
As well as we also produce other wire mesh products, such as Fence, Expanded Metal Mesh, Reinforced Steel Mesh, Gabion Mesh, Chain link mesh and so on. The series of wire mesh are export to the Europe market, America, Middle East, Russia, Australia, Africa countries.
We do custom manufacture and can supply a high quality OEM service for clients. We pride ourselves that our knowledge and experience result in us delivering high-quality products, on time--all the time. We will work closely with you from concept to creation of the first sample to final delivery.
› Founded in 2007.
› Strict QC system in the production line.
› Standardized production under ISO 9001 International standard.
› Wide range of steel grating for your option.
› Advanced equipment for efficient production and fast delivery.
› Rigorous and innovative spirits guide us become the leading enterprise.
FAQ
1.Should the costomer pay the sample,How much is it?
All samples are free.but you may need to provide courier fees.
2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
3.How about the after sale service?
1)We will always keep the quality the same with the same and if there is something with the quality,we will make compensaton for our coustomers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will slove the problems in the selling for our coustomers.
