7.5-65Mhz Frequency EOC Slave WiFi Support Data Encryption
Products Description
I. Overview
EOS-204W series is the EOC slave based on HomePlug AV solution for Ethernet access over coax. It works together with EOC master which is based on the HomePlug AV solution as well to construct a two-layer Ethernet data transmission channel on CATV coax cable, and provide the Ethernet access service based on the existing coax cable networking.
The EOS-204W series is based on the Mstar chipset solution, with a high anti-jamming capability.
OFDM technology. The 7.5-65MHz low-frequency band is used for EOC signals. Built-in high isolation filter as CATV RF and EOC signal mixer, the EOC signal and CATV signal in 87Mhz~1Ghz can run on one cable without interference. The PHY Layer speed is 600Mbps, the MAC Layer throughput is up to 320Mpbs.
EOS-204W series WIFI is based on the MTK chipset solution. It meets 802.11 b/g/n technical standards. It has two external antennas and can support a 2.4GHz wireless signal. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.
II. Features
-Based on HomePlug AVsolution and Mstar chipset
-7.5-65Mhz frequency for EOC signals., no influence on CATV Service
-PHY Layer speed 600Mbps
-Support data encryption
-4*100M auto-negotiation Ethernet port
-Support the isolation of slaves under one master
-Support Port-based VLAN and 802.1q VLAN
-Support bandwidth limited
-Support QOS configuration based on slave port or VLAN.
-Support broadcast storm control.
-Support data packages count
-Automatically get configurations from EOC Master when Newly connected with powered on
-Support WEB, CLI, and SNMP management
-Support on-line upgrading
III.
EOC Slave Specification
|
Item
|
Parameters
|
EOS-204W
|
|
Interface & indicator |
RF interface
|
1*TV(RF signal) OUTPUT, metric/inch F connector
1*CABLE(MIX)INPUT, metric/inch F connector |
|
|
Ethernet
interface |
4*10/100M auto-negotiation, RJ45
|
|
|
Power interface
|
1*DC12V power supply interface
|
|
|
LED indicators |
1*power indicator 1*system indicator 1*CABLE indicator 1*WIFI indicator
LAN indicator(each Ethernet port has 1 indicator) |
|
Performance
parameters |
RF parameters
|
Frequency:7.5-65MHz
Output level:110±5dBuv |
|
|
|
Receive sensibility:-65dB Return loss:>16dB Output impedance:75Ω
|
|
|
Transmission
|
PHY Layer:600Mbps
Throughput on MAC Layer:320Mbps |
|
|
Modulation
Mode |
OFDM– 2690-carriers
4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO |
|
|
Working Mode
|
TDMA/CSMA
|
|
|
Encryption
Mode |
AES-128
|
|
Standard |
EOC Standard
|
IEEE P1901(Draft)
HomePlug AV |
|
|
Ethernet
Standard |
IEEE 802.3, IEEE 802.3x, IEEE 802.3u
IEEE802.1P, IEEE802.1Q |
|
Software |
Network
Management |
WEB, CLI, SNMP
|
|
|
Software
Features |
VLAN, QOS, Bandwidth Control, Broadcast storm limitation
|
|
Physical Features |
Power supply &
Consumption |
Power adapter:12VDC 0.5A Power consumption: <5W
|
|
|
Dimension
|
160mm(L) x139.5mm(W) x 28.5mm (H)
|
|
|
Weight
|
0.3kg
|
|
|
Environment Attribute |
Work temperature：0～55℃ Stock temperature：-30～60℃
Work humidity: 10%～90%, non-condensation Stock humidity: 5%～95%, non-condensation |
Ⅳ. WiFi Specification
|
Item
|
|
Parameter
|
|
|
Performance parameters |
Operating Mode
|
Router or bridge
|
|
|
|
WIFI antenna
|
2 external antennas, 1 built in antennas
|
|
|
|
Throughput |
IEEE 802.11b: 11Mbps IEEE 802.11g: 54 Mbps
IEEE 802.11n: 300Mbps |
|
|
|
Frequency
|
2.412 ~ 2.472 GHz
|
|
|
|
Channel
|
13*Channel, 1,2,3,4,5,6,7,8,9,10,11,12,13
|
|
|
|
Modulation
|
11b: DSSS: DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)
11g:OFDM: BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36M |
|
|
|
|
bps),Q64QAM(48/54Mbps)
11n: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM. |
|
|
|
Receive sensitivity |
11Mbps:≤-89dBm 54 Mbps:≤-76dBm
HT20 MCS7:≤-72dBm HT40 MCS7:≤-68dBm |
|
|
|
RF output lever
|
802.11n: 16.5dBm
|
|
|
|
Encryption Mode
|
AES, TKIP, WPA, WPA2, WPA-PSK/WPA2-PSK
|
|
Details Images

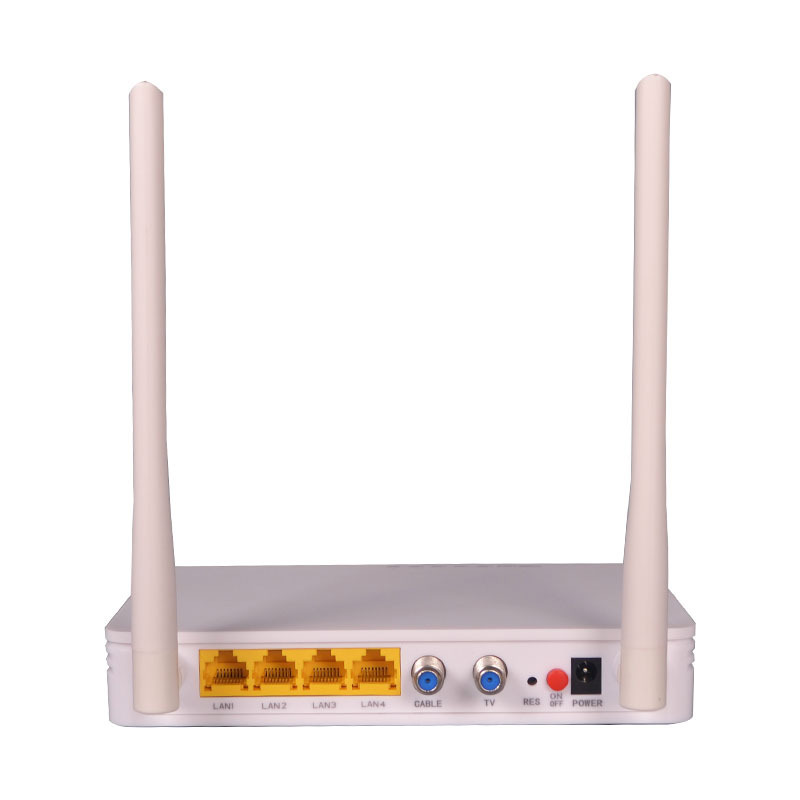

![[SOFTEL] Slave EOC cable ethernet modem over coaxial](https://cdn.bestsuppliers.com/seo_products_img/softel/1c71e3e10d22391c92c211217f556917.jpg!/rotate/180/sq/300)
