HY Nonwoven Fabric Making Machines Non Woven Fabric Making Machine Non Woven Fabric Machine
HY Nonwoven Fabric Making Machines Non Woven Fabric Making Machine Non Woven Fabric Machine
HY Nonwoven Fabric Making Machines Non Woven Fabric Making Machine Non Woven Fabric Machine
HY Nonwoven Fabric Making Machines Non Woven Fabric Making Machine Non Woven Fabric Machine
HY Nonwoven Fabric Making Machines Non Woven Fabric Making Machine Non Woven Fabric Machine
HY Nonwoven Fabric Making Machines Non Woven Fabric Making Machine Non Woven Fabric Machine
HY Nonwoven Fabric Making Machines Non Woven Fabric Making Machine Non Woven Fabric Machine
HY Nonwoven Fabric Making Machines Non Woven Fabric Making Machine Non Woven Fabric Machine

HY Nonwoven Fabric Making Machines Non Woven Fabric Making Machine Non Woven Fabric Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $300000
≥2 Sets
US $250000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
HUI YU
Power:
800 W
Dimension(L*W*H):
16 m*12 m*11 m
Weight:
20000 KG
Production Capacity:
99%
Product name:
Non-woven Fabric Production Line
After-sales Service Provided:
Engineer on-site maintenance
Application:
Produce Nonwoven Fabric Product
Name:
Non Woven Equipment machine
Final products:
spunbond and meltblown nonwoven fabric
Raw material:
polypropylene
After Warranty Service:
Online Suppor Repair Service
Keywords:
Nowoven Fabric Making Machine
Working Process:
System Control
Machine Type:
1.6m/2.4m/3.2m

Quick Details

Voltage:
3*380 V
Marketing Type:
New Product 2022
Place of Origin:
Hubei, China
Brand Name:
HUI YU
Power:
800 W
Dimension(L*W*H):
16 m*12 m*11 m
Weight:
20000 KG
Production Capacity:
99%
Product name:
Non-woven Fabric Production Line
After-sales Service Provided:
Engineer on-site maintenance
Application:
Produce Nonwoven Fabric Product
Name:
Non Woven Equipment machine
Final products:
spunbond and meltblown nonwoven fabric
Raw material:
polypropylene
After Warranty Service:
Online Suppor Repair Service
Keywords:
Nowoven Fabric Making Machine
Working Process:
System Control
Machine Type:
1.6m/2.4m/3.2m
Products Description

Hubei Huiyu Machinery Equipment Co., Ltd.

Our company specializing in the production of PP spunbonded (S, SS, SSS, SSSS), PP spinning and melting (SMS, SMMS, SMSS, SSMMS),PP/PE two-component, PET polyester nonwovens production line.
The standard widths of the main products are: 1.6 meters, 2.4 meters, 3.2 meters, 4.2 meters. Special width can also be customized，according to customer requirements.We insist on providing satisfactory service for our customers and friends with product quality,stable equipment and high quality after sale. we sincerely welcome friends from all walks of life and customers at home and abroad to come to negotiate business and seek common development.

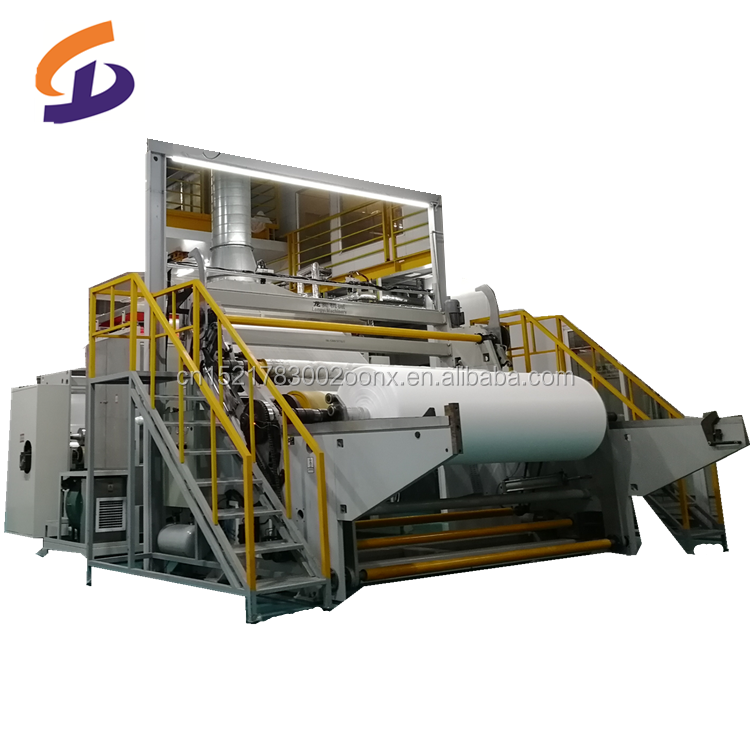

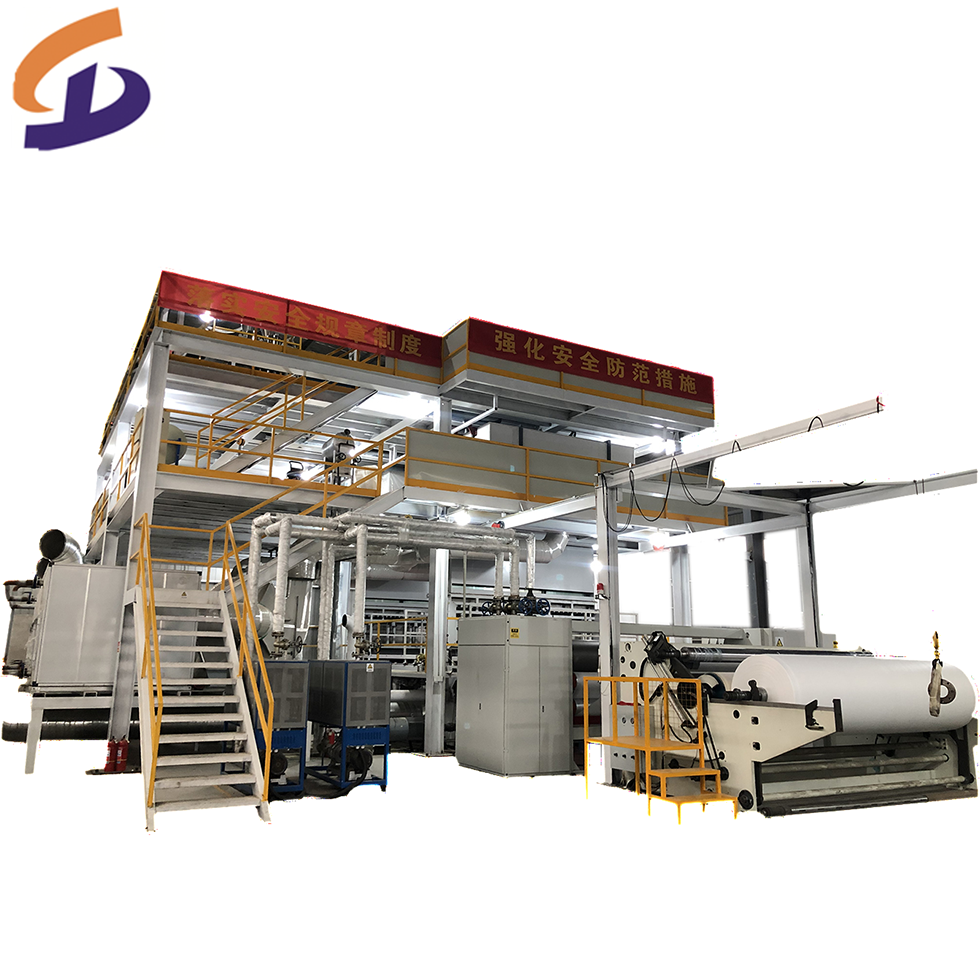

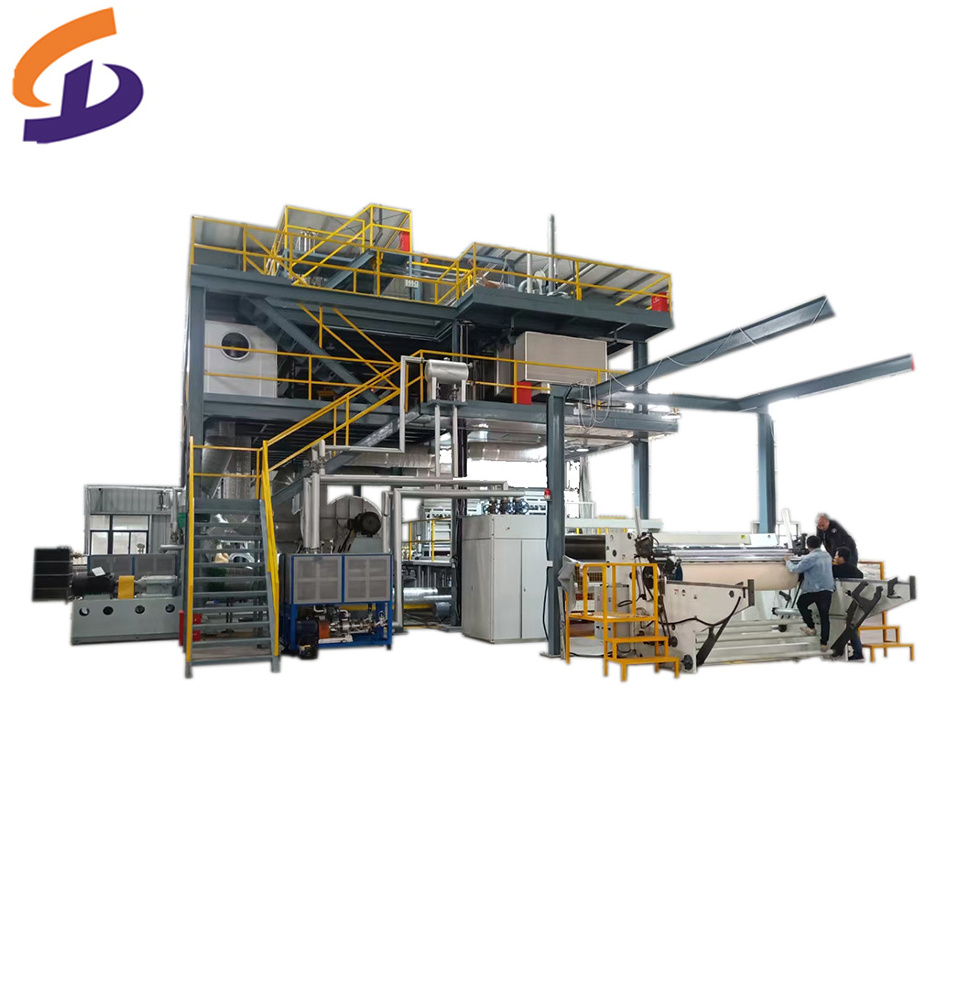

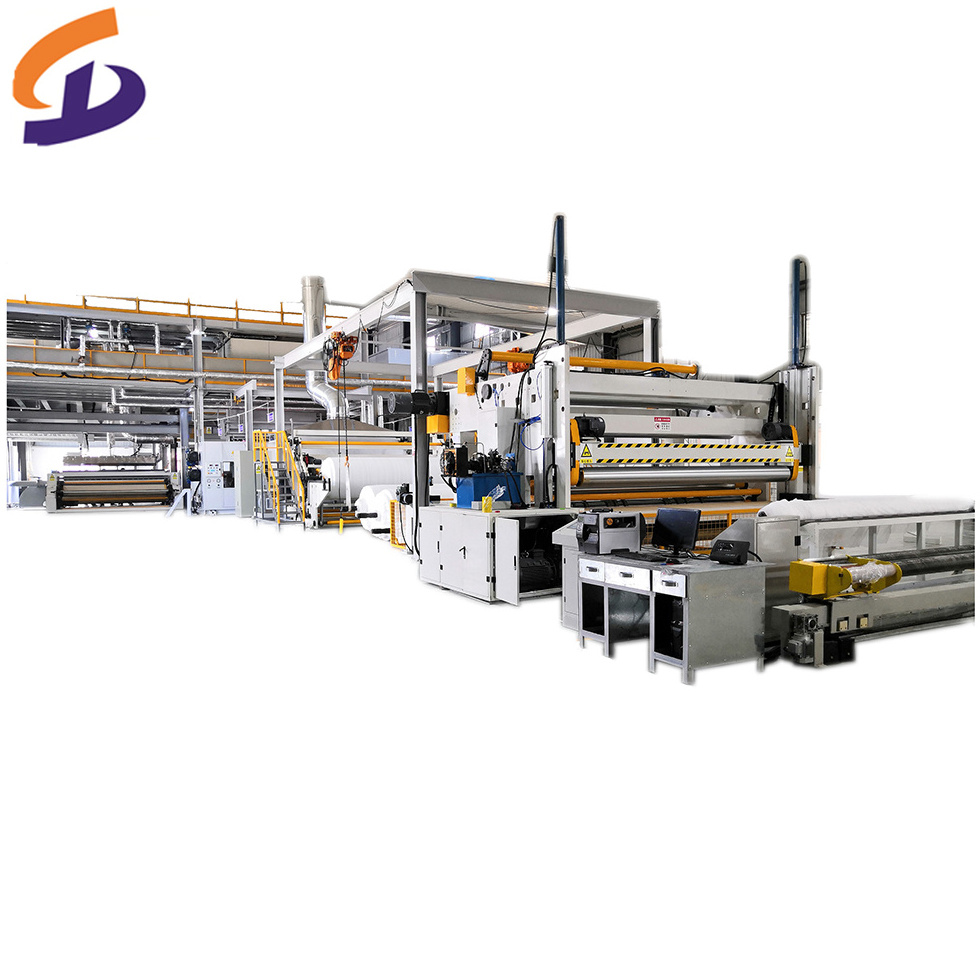

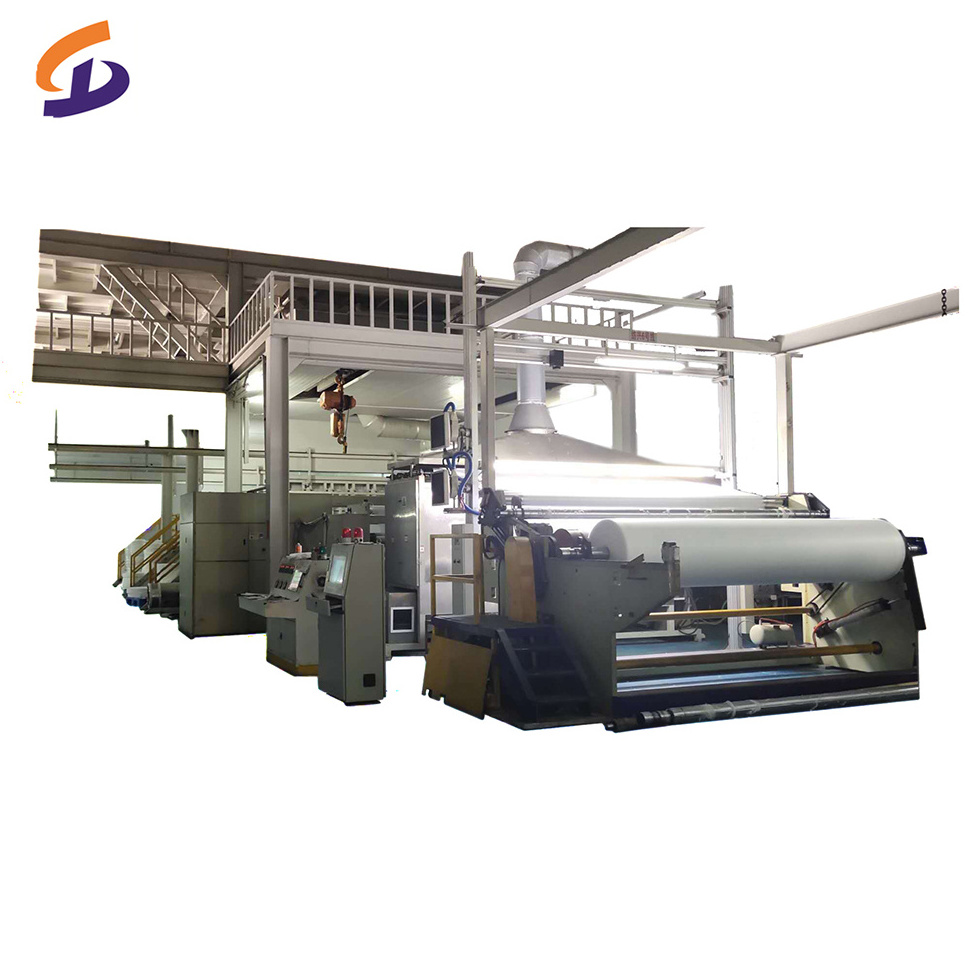

Real shot of finished product
This machine is suitable for PP spunbond non woven fabric making. It used PP chips as raw materials input, undergoes the process
of extrusion, spinning, quenching, closure air stretching,webformation,calendaring,winding and cutting as per requirements and then packed for storage and delivery.


S
Production line

HY

Output(Ton/Day)

Speed
(m/min)

Instal capaaty
(KW)
Power consumption
/Ton

Machine size
(m)
1.6m
4-5
150
280
800kw/h
10*20*10.5m
2.4m
6--7
150
320
800kw/h
14*20*10.5m
3.2m
9
150
400
800kw/h
17*20*10.5m


SS Productionline

HY

Output(Ton/Day)

Speed
(m/min)

Instal capacty
(KW)
Power consumption
/Ton

Machne size
(m)
1.6m
8-9
300
400
800kw/h
10*30*10.5m
2.4m
12-13
300
550
800kw/h
14*30*10.5m
3.2m
16-17
300
650
800kw/h
17*30*10.5m


SSS Production line

HY

Output(Ton/Day)

Speed
(m/min)

Instal capacty
(KW)
Power consumption
/Ton

Machine size
(m)
1.6m
13-14
350
630
600-800kw/h
13*30*10.5m
2.4m
20-21
350
800
600-800kw/h
15*30*10.5m
3.2m
27-28
350
1100
600-800kw/h
17*30 10.5m


SMS
Production line

HY

Output(Ton/Day)

Speed
(m/min)

Instal capacity
(KW)
Power consumption
/Ton

Machne size
(m)
1.6m
10-11
300
760
1200kw/h
15*30*10.5m
2.4m
15-16
300
950
1200kw/h
18*30*10.5m
3.2m
20-21
300
1250
1200kw/h
21*30*10.5m


SMMS
Production line

HY

Output(Ton/Day)

Speed
(m/min)

Instal capacity
(KW)
Power consumption
/Ton

Machne size
(m)
1.6m
13-14
400
1100
1400kw/h
18*40*10.5m
2.4m
21-22
400
1350
1400kw/h
20*40*10.5m
3.2m
28-30
400
1700
1400kw/h
22*40*10.5m
Helpful hints：
The above finished products are all installed and debugged by our company and successfully run and put into production. They are all real shooting parts.
Tip:
All of our machines have CE ISO certification, quality assurance. My company after sale perfect, once purchased, lifelong maintenance.
Spunbonded nonwoven fabric production process:
The waste recovery device researched by our company ensures a high conversion rate of materials and refuses waste. Every link is precisely controlled, reaching 99% of the conversion.
Process diagram:
This is the process flow chart of spunbonded non-woven fabric line. The whole assembly line has clear structure and perfect function. The role and function of each link are clearly visible.
R&D
In product research and development, Hui Yu company at all costs, to explore more advanced non-woven technology.
Introduce excellent scientific research achievements at home and abroad, transform and improve them. And hiring good engineers, spending more than 32% a year on innovation.

Product Application Introduction

Some of the application areas of the product are shown below. Due to the variety of machine models and types produced by our company, no matter which field your desired product is applied in, we can find the right model for you, and debug the equipment so that it can be successfully put into operation.
Strengths:
1.Quality Control in whole process, provide individual high cost-effective nonwoven lines, helping customer cost saving. 2.Focus on non woven equipment research and development in 14 years. Install and run more than 400 lines all over the world. 3.Import high precision CNC machine from Japan. The key parts machining in house, ensure to provide high quality machine for each customer. 4.Over 20 person team for machine after sales service. Ensure the customers can get quickly and professional installation and debugged in time.
FQA
Q1.Do you offer installing service? Sure. We will despatch our technical workers to oversea sites to instruct and help install the machines, meantime to train the workers of customer until they can produce fabric by themselves. Q2.What is your warranty? We offer 1-2 years warranty upon the different parts. Q3.How long is your delivery time? Generally the production time needs 3-6 months upon condition. We will confirm you the exact time when you place order. Q4.Are you factory or trading company? We are factory with export rights. We manufacture machines and export to customers by ourself. Q5. Where is your factory located? How can I visit it? Our factory is located in Tianmen City, Hubei Province, which is famous for making non-woven fabric machinery. You can take a plane to Wuhan Tianhe Airport, or take a high-speed train to Tianmen South Station, I will pick you up
