Quick Details
-
Size:
-
By customer needs
-
Place of Origin:
-
Shandong, China
-
Condition:
-
New Made
-
Production Time:
-
15 days, contact supplier for details
-
Axle Style:
-
American /Germany 13-20Tons
-
Suspension:
-
Bogie/Air/Mechanic/Rigid Optional
-
Usage:
-
Heavy Equipment Machinery Transport
-
Aftersale:
-
1 year
-
Tire:
-
11.00r20 12r22.5 315 385
-
OE NO.:
-
342498104819483094
-
Certification:
-
ISO CCC BV SGS CE DOT
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
20Tons - 100Tons
-
Brand Name:
-
Eleph
-
Size:
-
By customer needs
-
Place of Origin:
-
Shandong, China
-
Condition:
-
New Made
-
Production Time:
-
15 days, contact supplier for details
-
Axle Style:
-
American /Germany 13-20Tons
-
Suspension:
-
Bogie/Air/Mechanic/Rigid Optional
-
Usage:
-
Heavy Equipment Machinery Transport
-
Aftersale:
-
1 year
-
Tire:
-
11.00r20 12r22.5 315 385
-
OE NO.:
-
342498104819483094
-
Certification:
-
ISO CCC BV SGS CE DOT

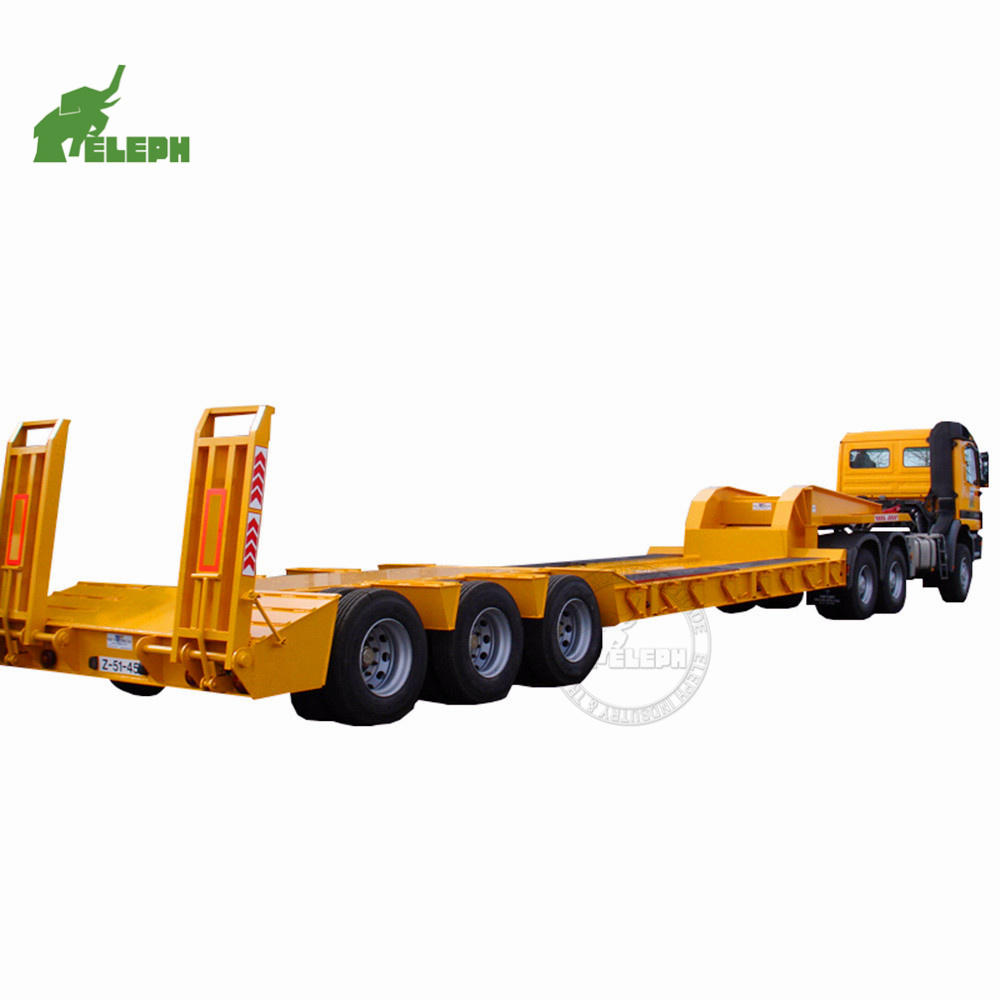

Heavy Duty Low Bed Semi Trailer
|
Heavy Duty Machinery Transport Lowbed Truck Semi Trailer |
|||||
|
Model |
ALP 9350 LBST |
||||
|
Dimension(Optional) |
Axle N o. |
Rated Load (kg) |
Tire No. |
Tire Size |
|
|
Dimension Made by Customer Machine Size, Standard Length is 13500mm (contact supplier for more) |
1 |
20 |
4 |
825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) |
|
|
2 |
40 |
8 |
|||
|
3 |
60 |
12 |
|||
|
4 |
80 |
16 |
|||
|
5 |
100 |
20 |
|||
|
Manufacture |
Qingdao Eleph Industry & Trade Co., Ltd |
||||
|
Wheel Base (mm) |
1310 |
||||
|
leaf-spring Pcs |
10 |
||||
|
Axle |
13/16/18 T |
||||
|
Suspension |
Heavy Duty Mechanic Suspension with Leaf Springs |
||||
|
Main Beam Material |
Q 345 B manganese plates, automatic submerged arc welded |
||||
|
Brake System |
Dual line braking system with automatic braking system/chambers |
||||
|
Brake Air Chamber |
Double Model |
||||
|
Kingpin |
2' or 3.5' Interchangeable |
||||
|
Platform |
4-6 mm diamond steel plate |
||||
|
Brake System |
Dual Lines Braking System With Automatic Air Chambers |
||||
|
Brake Air Chamber |
Four double and two single chamber |
||||
|
Electrical System |
24V, 7 core socket, lights according to European standards. |
||||
|
Mainbeam Size |
Upper plate |
14mm |
|||
|
Lower plate |
16mm |
||||
|
Mid Web |
8 mm |
||||
|
Height |
500-520mm |
||||
|
Spare tire carrier |
2 sets |
||||
|
Pin Height |
According to the height of the tractor saddle. |
||||
