Quick Details
-
Brand Name:
-
TSXL
-
Model Number:
-
XLDH-F-III
-
Max. Current:
-
AC220V 50/60HZ
-
Product name:
-

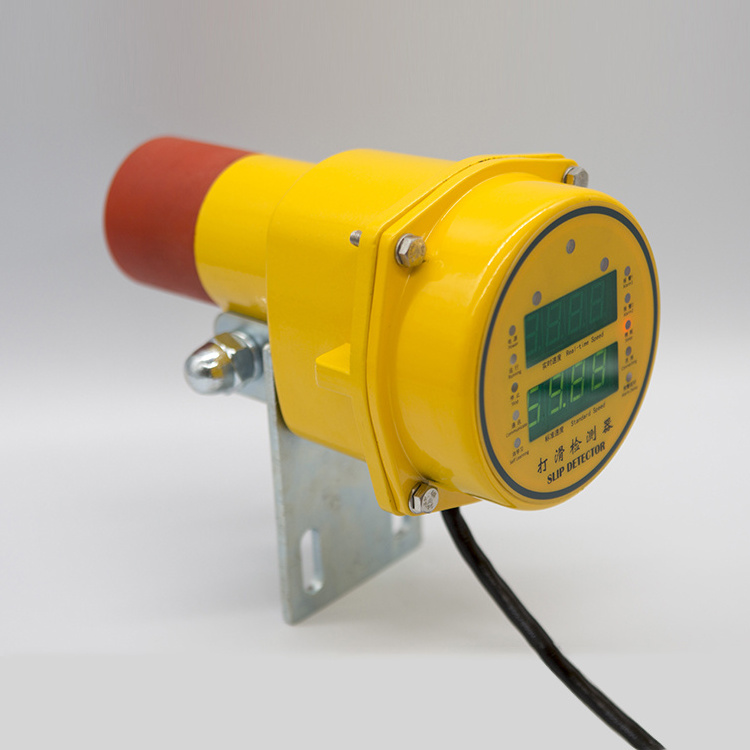

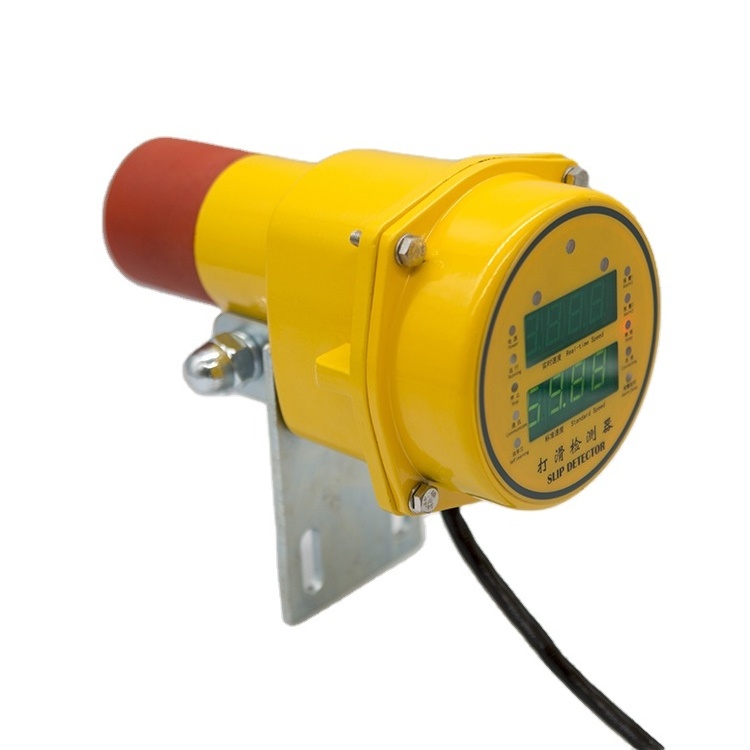

conveyor belt zero speed switch detector
-
Output mode and quantity:
-
2*SPDT(4-20mA)
-
Certificate:
-
CE ISO
-
Ambient temperature:
-
(-40℃~ 50℃)
-
Relative humidity:
-
0 ~ 95%
-
Contact rating:
-
AC250V 3A DC30V 3A
-
Working voltage:
-
AC220V 50/60HZ
-
Protection level:
-
IP67
-
Atmospheric pressure:
-
80 kPa ~110kPa
-
Display mode:
-
Double-row 8-bit LED digital tube
-
Certification:
-
CE ISO
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
AC250V 3A DC30V 3A
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TSXL
-
Model Number:
-
XLDH-F-III
-
Max. Current:
-
AC220V 50/60HZ
-
Product name:
-
conveyor belt zero speed switch detector
-
Output mode and quantity:
-
2*SPDT(4-20mA)
-
Certificate:
-
CE ISO
-
Ambient temperature:
-
(-40℃~ 50℃)
-
Relative humidity:
-
0 ~ 95%
-
Contact rating:
-
AC250V 3A DC30V 3A
-
Working voltage:
-
AC220V 50/60HZ
-
Protection level:
-
IP67
-
Atmospheric pressure:
-
80 kPa ~110kPa
-
Display mode:
-
Double-row 8-bit LED digital tube
-
Certification:
-
CE ISO
Recommend Products
Products Description
Through the real-time speed detection of the driven pulley of the belt conveyor, the speed switch can judge whether there is the slip fault of the conveyor belt, and send out alarm signals according to the speed change in time to avoid the loss and the expansion of the accident. This product adopts advanced ARM processor technology and embedded control principle, with stable performance, powerful function and high protection level.
Characteristic
Adopt high-strength A-alloy precise die-casting shell, with strong impact resistant capability.
The surface of the shell is sprayed with plastic and has strong corrosion resistance.
The shell has high protection level, good sealing, and can be used in harsh environment.
Using ARM MCU as control unit, it has fast response speed, high precision and small error.
Non-contact, non-fragile components, long service life.
Double-row digital tube and LED indicator display, convenient for observation and maintenance.
Integral design, two bolts fixed, easy to install and use.
High precision 4-20mA analog output.
High contact capacity relay output.
Equipped with RS-485 communication interface.
Optional handheld terminal can modify alarm point, alarm delay, start delay and other parameters by itself.
|
Ambient temperature
|
-40℃~50℃
|
|
Relative humidity
|
0~95%
|
|
Atmospheric pressure
|
80 kPa ~110kPa
|
|
Working voltage
|
AC220V 50/60HZ
|
|
Power consumption of the whole machine
|
15W
|
|
Output mode and quantity
|
2×SPDT（4-20mA)
|
|
Contact rating
|
AC250V 3A DC30V 3A
|
|
Detection range
|
10~9999 R/min
|
|
Optimum detection distance of sensor head
|
10mm
|
|
Alarm threshold
|
Alarm 1：Speed reduced by 10%
Alarm 2：Speed reduced by 50% |
|
Start delay
|
10 S
|
|
Protection level
|
IP67
|
|
Display mode
|
Double-row 8-bit LED digital tube
|
|
Analog mode
|
4~20 mA
|
|
Accuracy of analogue quantity
|
0.1%
|
|
Analog load capacity
|
300 Ω
|
|
Communication mode
|
RS485
|
conveyor belt zero speed switch detector
