Quick Details
-
Control System Brand:
-
Ruida
-
Cutting Area:
-
1600*1000mm
-
Cutting Thickness:
-
0-30mm, depending on laser power and materials
-
Control Software:
-
RuiDa controller
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LaserMen
-
Weight (KG):
-
750 KG
-
Core Components:
-
Laser tube
-
Mode of Operation:
-
CO2 laser tube
-
Products handled:
-
non-metals engraving and cutting with CO2 laser
-
Product name:
-
Fabric C02 Laser Engraving Cutting Machine
-
Cooling system:
-
Water cooling, water pump / S&A industrial water chiller
-
Transmission system:
-
Linear guide rail and belt transmission
-
Driving system:
-
Stepper motors and drivers
-
Machine table:
-
Blade table (alternative: honeycomb table)
-
Control system:
-
RuiDa controller
-
Exhaust system:
-
Exhaust fan
-
Machine color:
-
Blue and white, Accept customization
-
Software:
-
RDworks laser sofware
-
Working area:
-
1600*1000mm
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-500mm/sec
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Ruida
-
Cutting Area:
-
1600*1000mm
-
Cutting Thickness:
-
0-30mm, depending on laser power and materials
-
Control Software:
-
RuiDa controller
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LaserMen
-
Weight (KG):
-
750 KG
-
Core Components:
-
Laser tube
-
Mode of Operation:
-
CO2 laser tube
-
Products handled:
-
non-metals engraving and cutting with CO2 laser
-
Product name:
-
Fabric C02 Laser Engraving Cutting Machine
-
Cooling system:
-
Water cooling, water pump / S&A industrial water chiller
-
Transmission system:
-
Linear guide rail and belt transmission
-
Driving system:
-
Stepper motors and drivers
-
Machine table:
-
Blade table (alternative: honeycomb table)
-
Control system:
-
RuiDa controller
-
Exhaust system:
-
Exhaust fan
-
Machine color:
-
Blue and white, Accept customization
-
Software:
-
RDworks laser sofware
-
Working area:
-
1600*1000mm

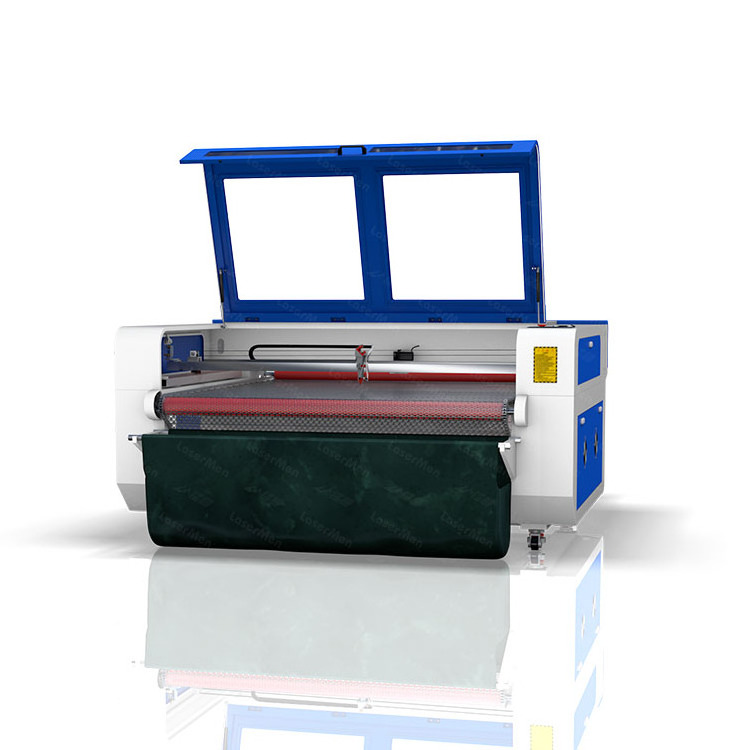

Factory directly supply fabric textile leather shoes making laser cutter CO2 1625 laser cutting machine
Machine Parameters
|
Machine model
|
Fabric laser cutting machine
|
|
laser type
|
Sealed CO2 laser tube, wavelenght:10:64μm
|
|
laser power
|
100w, 130w, 150w
|
|
Cooling mode
|
Circulating water cooling
|
|
Laser power control
|
0-100% software control
|
|
Control system
|
DSP offline control system
|
|
Max. engraving speed
|
600mm/sec
|
|
Max cutting speed
|
500mm/sec
|
|
Repetition accuracy
|
≤±0.01mm
|
|
Min. Letter
|
Chinese:1.5mm, English:1mm
|
|
Table size
|
1600*2500mm
|
|
Working voltage
|
Working voltage
|
|
Working conditions
|
temperature:0-45℃，humidity:5%-95%
|
|
File formats
|
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*.las,*.doc
|
Product Description :
1). Double heads with high efficiency and effectiveness work simultaneously.
2). The auto-feeding function is specially designed for piece goods, such as cloth, fabric,Towel, leather, jeans, knit article,
embroidery, etc.
3). Widely applied in clothes embroidery industries.
Product Details
Co2 glass laser tube with 100w, 130w, 150w laser power
China top brand Yongli or Reci laser tube.
Laser head :
Double heads with high efficency and effetciveness work simultaneously. Time saving parts can cut kinds of piece goods, such as cloth, fabric,Towel, leather, jeans, knit article, embroidery, etc.
Auto feeding table :
The auto-feeding function is specially designed for piece goods, such as cloth, fabric,towel, leather, jeans, knit article,
embroidery, etc. It's so practical. Widely applied in clothes industries.
The auto-feeding function is specially designed for piece goods, such as cloth, fabric,towel, leather, jeans, knit article,
embroidery, etc. It's so practical. Widely applied in clothes industries.
Control panel :
The work table is controlled by Ruida works. When to move, and how far to move, all of this data can be set up on the digital panel.
Laser source :
Supplies power for the laser tube with high quality.
Auto feeder system
Ensure that the fabric is tidy when transported from the rear to the work table .
Control system
Ruida control card, driving system(x-axis, y-axis, z-axis), power supply, air switch, intelligent no-arc ac contactor included.
with this part , the piece goods can be processed more accurate, the cutting edge will be more smooth.
Product Application
Working materials:
The leather, cloth anticipates, rubber, fabric, textile, PU, plastics, paper, bag clothing, shoe etc. most of nonmetal materials.
