Quick Details
-
Graphic Format Supported:
-
AI, DXF, Dst
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
China
-
Weight (KG):
-
565 KG
-
Control system:
-
DSP
-
Laser tube type:
-
Co2 Glass sealed laser tube
-
Laser power:
-
130W
-
PC Interface:
-
USB2.0 and USB Disk
-
Software:
-
Auto Laser
-
Dimension(L*W*H):
-
2040*1460*1070
-
Certification:
-
ISO CE
-
After-sales Service Provided:
-
Online support
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Engraving Area:
-
55"x35"
-
Laser Type:
-
CO2
-
Engraving Speed:
-
500mm/s
-
Graphic Format Supported:
-
AI, DXF, Dst
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
China
-
Weight (KG):
-
565 KG
-
Control system:
-
DSP
-
Laser tube type:
-
Co2 Glass sealed laser tube
-
Laser power:
-
130W
-
PC Interface:
-
USB2.0 and USB Disk
-
Software:
-
Auto Laser
-
Dimension(L*W*H):
-
2040*1460*1070
-
Certification:
-
ISO CE
-
After-sales Service Provided:
-
Online support
-
Marketing Type:
-
Ordinary Product
Products Description
Two 130w lasers

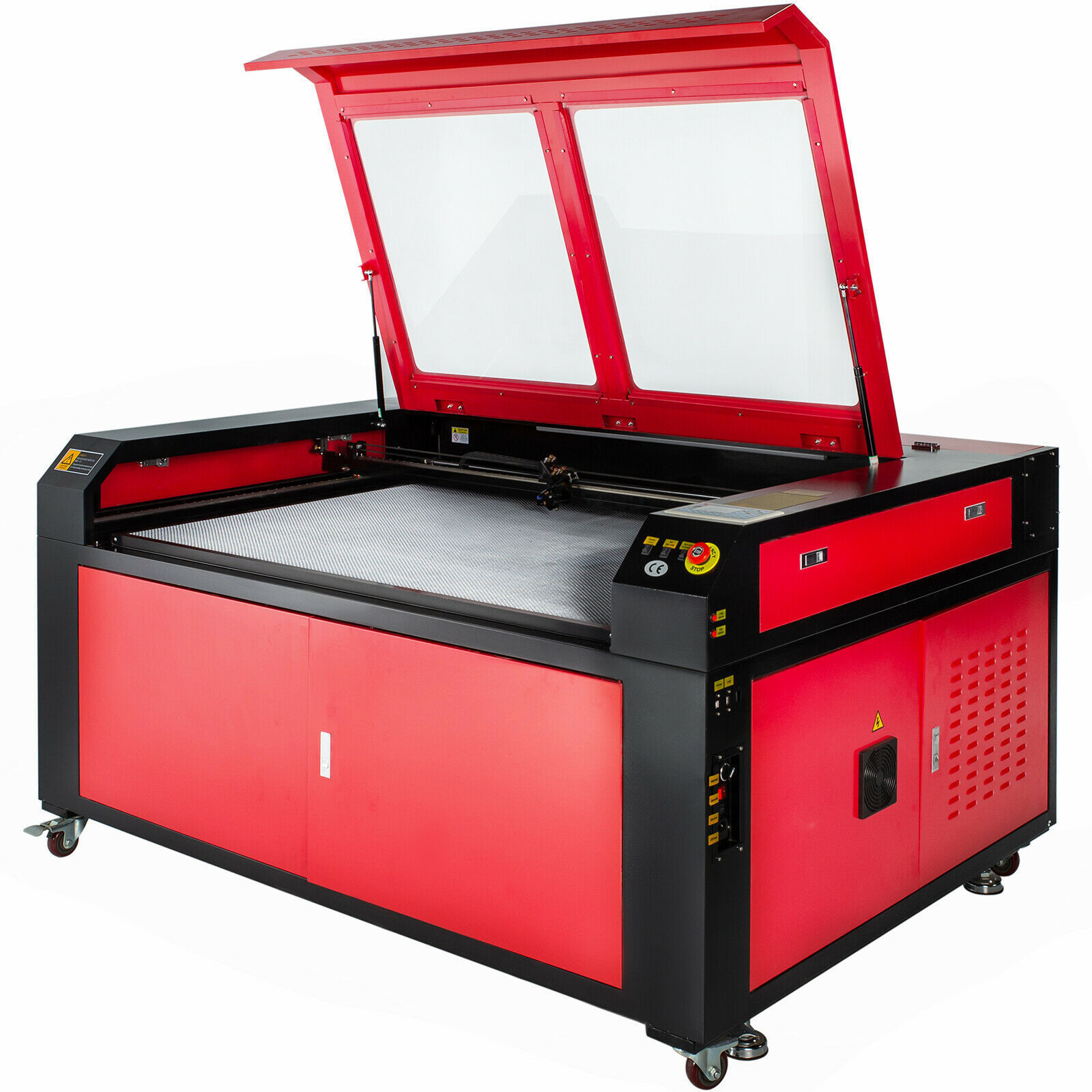

Sihao laser cutting machine co2 130w laser marking machines co2 laser cutting machine engraving
Specifications
|
Model
|
KH-1490
|
|
|
|
|
|
|
||||||
|
Machine power
|
＜2500W
|
|
|
|
|
|
|
||||||
|
Working humidity
|
5％-95％ No water drop environment
|
|
|
|
|
|
|
||||||
|
Operating temperature
|
5-50℃
|
|
|
|
|
|
|
||||||
|
Laser type
|
Carbon dioxide glass laser
|
|
|
|
|
|
|
||||||
|
Laser model
|
Two 130w lasers
|
|
|
|
|
|
|
||||||
|
Laser power
|
High-voltage discharge excites high-concentration carbon dioxide gas to produce a laser with a wavelength of 10.6um
|
|
|
|
|
|
|
||||||
|
Laser working principle
|
Digital two-phase stepper driver
|
|
|
|
|
|
|
||||||
|
Drive type
|
57 Hybrid Stepper Motor
|
|
|
|
|
|
|
||||||
|
Working motor
|
1400mm*900mm
|
|
|
|
|
|
|
||||||
|
Working area
|
Cellular workbench
|
|
|
|
|
|
|
||||||
|
Workbench adjustment
|
Electric lift 50cm
|
|
|
|
|
|
|
||||||
|
Laser cooling mode
|
Water circulation cooling
|
|
|
|
|
|
|
||||||
|
Idle speed
|
＜400mm/s
|
|
|
|
|
|
|
||||||
|
Engraving speed
|
＜400mm/s
|
|
|
|
|
|
|
||||||
|
Cutting speed
|
＜300mm/s
|
|
|
|
|
|
|
||||||
|
Engraving cutting depth
|
0-20mm（For reference only, depending on different materials and power）
|
|
|
|
|
|
|
||||||
|
Auxiliary positioning
|
Red light positioning, Auto focus
|
|
|
|
|
|
|
||||||
|
Safety protection
|
Air blowing flame retardant, Water cut protection
|
|
|
|
|
|
|
||||||
|
Name of software
|
RDworksV8
|
|
|
|
|
|
|
||||||
|
Collaboration software
|
coreldraw、AutoCAD
|
|
|
|
|
|
|
||||||
|
Software running
|
Windows
|
|
|
|
|
|
|
||||||
|
Support graphics format
|
JPG、BMP、AI、PLT and so on
|
|
|
|
|
|
|
||||||
|
Data transmission
|
USB2.0, network port, U disk
|
|
|
|
|
|
|
||||||
|
Power supply
|
AC220±10% 50HZ/AC110±10% 60Hz
|
|
|
|
|
|
|
||||||
|
Standard accessories
|
①Forced water circulation pump*2 ②Electromagnetic air pump*2 ③Maintenance tool*1 ④Centrifugal exhaust fan*1 ⑤Rubber smoke exhaust
pipe*2 ⑥Power cord*1 ⑦Data transmission line*1 ⑧Software disk*1 |
|
|
|
|
|
|
||||||
