- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
KELLEN
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
1500*750*2700
-
Name:
-
press for pet bottle hydraulic scrap baler shear machine on sale
-
Model:
-
KLS-10A
-
Maximum tightening force:
-
2000(Kgs)
-
Packiing speed:
-
6-10
-
Minimum package:
-
30(mm)
-
Packing PP tape width:
-
30(mm)
-
Oil cylinders:
-
115
-
System pressure:
-
20Mpa
-
Marketing Type:
-
New Product 2021
Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
7.5kw
-
Place of Origin:
-
China
-
Brand Name:
-
KELLEN
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
1500*750*2700
-
Name:
-
press for pet bottle hydraulic scrap baler shear machine on sale
-
Model:
-
KLS-10A
-
Maximum tightening force:
-
2000(Kgs)
-
Packiing speed:
-
6-10
-
Minimum package:
-
30(mm)
-
Packing PP tape width:
-
30(mm)
-
Oil cylinders:
-
115
-
System pressure:
-
20Mpa
-
Marketing Type:
-
New Product 2021
Hydraulic Press Machine Vertical Baler For Sale Hydraulic Baling Press
Product Description

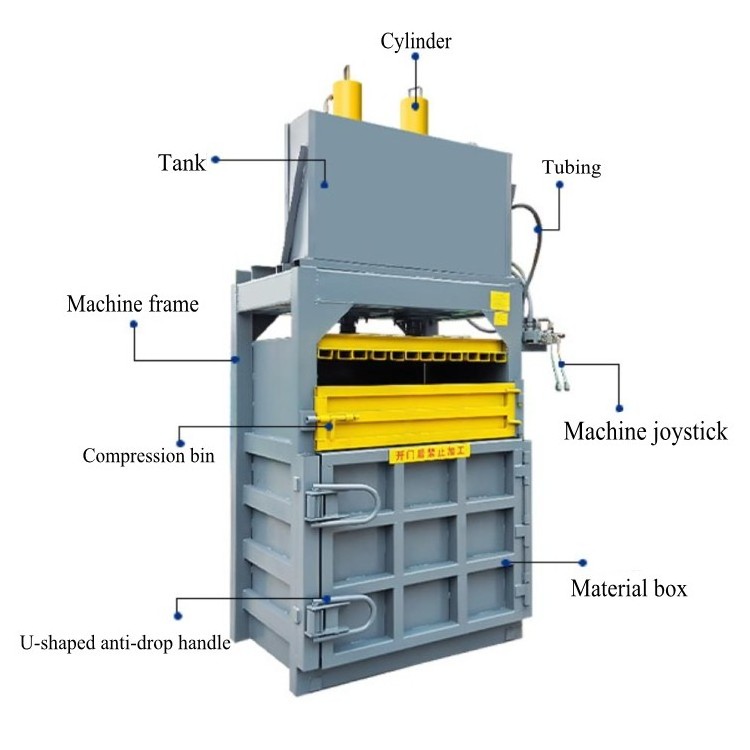

The hydraulic baler includes a bracket, the bracket has a bottom plate and front and rear side baffles, a jack is installed on the bracket, the jack has a piston rod, the right end of the piston rod is connected with a vertical pusher plate, and the right side of the pusher plate is connected with a pusher Slats, the gap between adjacent pusher slats is a rope groove on the board; the upper right part of the bracket is equipped with a pressing upper baffle, and the left side of the pressing upper baffle is equipped with a feed inlet; front and rear sides The brackets on the right side of the baffle are respectively fixedly connected to the front and rear side barriers, and the gap between the adjacent side barriers is a rope threading port; the right end of the bracket has a discharge port, and the right end of the bracket at the discharge port is hinged with a door panel. Door slats are connected to the left side, and the gap between adjacent door slats is the rope groove on the door; the cavity enclosed by the front and rear side baffle, the pusher plate and the bottom plate is the feed cavity, the front and rear side baffle bars, press material The cavity enclosed by the upper baffle, the door plate and the bottom plate is a squeezing cavity; the door plate and the right end of the bracket are fixedly connected with a locking device. And the size of the package can be adjusted within a certain range according to needs.
Specification information
|
Model
|
Cylinder
|
motor
|
Bale Size
|
Machine size
|
Bale weight
|
Machine weight
|
|
10T
|
115
|
7.5kw
|
80x40×80cm
|
1.5x0.70x2.7m
|
65kg
|
500kg
|
|
20T
|
140
|
11.0kw
|
80x40x80cm
|
1.5x0.70x2.8m
|
75kg
|
550kg
|
|
30T horizontal bar
|
160
|
11.0kw
|
80x40x80cm
|
1.5x0.70x2.8m
|
100kg
|
600kg
|
|
30T horizontal bar
|
160
|
11.0kw
|
80x60x80cm
|
1.5x0.85x2.8m
|
130kg
|
650kg
|
|
30T horizontal bar
|
160
|
11.0kw
|
100×60x80cm
|
1.75x0.85x2.8m
|
150kg
|
700kg
|
|
30T parallel bars
|
115
|
11.0kw
|
100x60×80cm
|
1.75x0.85x2.8m
|
150kg
|
700kg
|
|
40T horizontal bar
|
180
|
11.0kw
|
100×60x80cm
|
1.75x0.85x2.8m
|
175kg
|
750kg
|
|
40T parallel bars
|
140
|
7.5kw
|
100x60x80cm
|
1.75x0.85x2.8m
|
200kg
|
800kg
|
|
60T parallel bars
|
160
|
15.0kw
|
120x80x100cm
|
1.7x1.00x3.2m
|
300kg
|
1300kg
|
|
80T parallel bars
|
180
|
18.5kw
|
120x80x100cm
|
1.75x1.10x3.3m
|
400kg
|
1450kg
|
|
100T parallel bars
|
180
|
22.0kw
|
120×80x100cm
|
1.75x1.10x3.3m
|
450kg
|
1600kg
|
Product display
Detailed picture
Application
This machine is used in waste recycling stations, packaging material manufacturers, waste paper recycling and packaging, electronics manufacturers waste, waste paper recycling and packaging, waste plastic compression packaging, beverage bottle compression packaging, export clothing packaging, waste sponge recycling packaging, medicinal materials compression packaging, and flue-cured tobacco Compression and packaging, paint barrel compression and packaging, waste metal compression and packaging, textile compression and packaging, non-woven fabric manufacturer waste recycling and packaging, and other waste recycling and packaging processing. Improve labor efficiency, reduce labor intensity, save manpower, and reduce transportation costs.
Textile compression packaging
Waste paper recycling and packaging
Beverage bottle compression packaging
Cans compressed and packed
Export clothing packaging
Non-woven fabric manufacturers waste recycling and packaging
Package and Delivery
Company Introduction
Henan Kellen Machinery Equipment Co., Ltd.
It is mainly manufacture the fruit and vegetable juice machine,vegetable dicingmachine,ice cube making machine,popcorn machine,dumpling maker machine,straw crushers, peanut sheller,dryer machine,flower refrigerator display,oil fryer and so on.Our machine adopt the latest technology and complied with international quality standard,made of high quality stainless steel with competitive price.Many of our products are exported toAmerica,Australia,France,Netherlands,Ireland and more than 20 countries and regions,we have got a lot of good feedback fromclients."High reputation,Competitive price,Efficient delivery speed and Good after-sell service"is our principle,looking forward to cooperate with more friends from all over the word.If you are interested in any of our machine,welcome to contact us any timefreely,will try our best to provide you help timely.
Why choose us?
1.This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are Alibaba legitimate certification company, and we support payment terms like TT,Trade Insurance to ensure your safety.You can contact me if you have any questions, my phone/WeChat/whatsApp is
+86150 3617 5334. (Email:jessica@kellenmachine.com)
2.Where will the orders be shipped from?
A: It will ship from the main ports China,Shanghai ,Qingdao,Tianjin,or another seaport you need.
3.Do you have manual with the machine?
Yes, of course. It is in English version.
4.Can you offer us the necessary paper to do the customs clearance?
Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms),
insurance policy (if CIF terms), also CO if you need.
5.How about quality guarantee Terms?
Quality guarantee term is for two years. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer.
