Quick Details
-
APPLICATION:
-
Brazing/Hardening/Annealing
-
Product name:
-
High frequency induction heating machine
-
USAGE:
-
Metal heat treatment
-
FUNCTION:
-
Eco-friendly
-
TYPE:
-
IGBT Induction Heating
-
COLOR:
-
Support Customized
-
VOLTAGE:
-
220V 50Hz 1Phase/Customized
-
OTHER NAME:
-
induction heater
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
REYOK
-
Weight (KG):
-
22
-
APPLICATION:
-
Brazing/Hardening/Annealing
-
Product name:
-
High frequency induction heating machine
-
USAGE:
-
Metal heat treatment
-
FUNCTION:
-
Eco-friendly
-
TYPE:
-
IGBT Induction Heating
-
COLOR:
-
Support Customized
-
VOLTAGE:
-
220V 50Hz 1Phase/Customized
-
OTHER NAME:
-
induction heater
high frequecny induction surface heat hardening treatment equipment

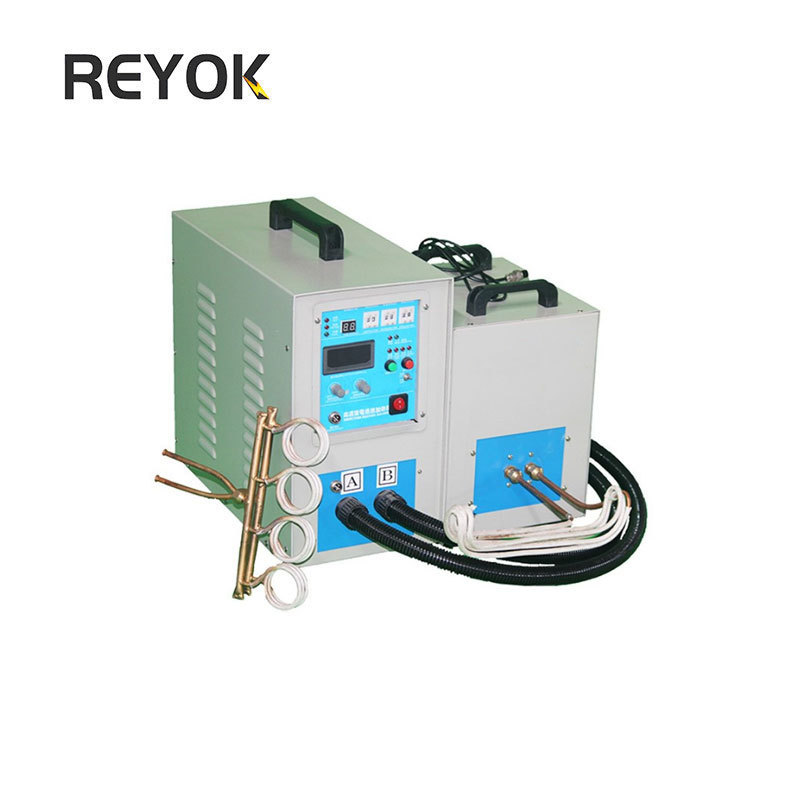

High frequency induction heating machine induction heater 15kw
Adopted with MOSFET, IGBT power device and variable frequency control, high frequency induction heaters enjoy high efficiency, energy saving and larger output power.
With constant current and constant power control function, the products can realize extremely optimized metal heating process,thus achieving high efficient, quick heating and greatly give play to the superiority of products.
Saving double electricity more than traditional high frequency induction heating device under the same conditions.
With 100% load design, it can work 24 hours constantly without a break. It can be equipped with infrared temperature measuring device to realize automatic control, promote heating quality and simplify artificial operation.
With three functional setting including heating-heat retaining-cooling, it can achieve required heating and incubation process to make itself suitable for repetitive and mass heating work.
The machine can display various states such as over current, over voltage, lacking of water, lacking of phase and light loading, thus providing higher reliability and durability.
,
High Frequency Induction Heating machine System
| Model | YK-15A | YK-25A | YK-35AB | YK-40AB |
| Input voltage | 220VAC | 380V | 380V | 380V |
| Output power | 15KW | 25KW | 35KW | 40KW |
| Frequency | 30-100KHZ | 30-80KHZ | 30-80KHZ | 30-80KHZ |
| Output current | 200-600A | 200-1200A | 400-1600A | 400-1800A |
| Timing | 1-99s | 1-99S | 1-99S | 1-99S |
| Cooling water | 0.06-0.12Mpa , 7.5L/min | 0.06-0.12Mpa , 7.5L/min |
0.08-0.16Mpa
7.6L/min
|
0.08-0.16Mpa
7.6L/min
|
| Alarm tempreture | 40°C | 40°C | 40°C | 40°C |
| Generator weight | 22KGS | 2 9 KGS | 21KGS | 32KGS |
| Transformer weight | / | / | 15KGS | 26KGS |
| Generator size (mm) | 460*200*400mm | 48 0*2 1 0*4 1 0mm | 48 0*2 1 0*4 1 0mm | 550*280*490MM |
| Transformer size (mm) | / | / | 300*245*350MM | 360*265*360MM |
1. Plywood or wooden case
2. Adhesive wrap to prevent scratches
3. Plastic film to keep the machine together
4. Foam plate and block to prevent shake
5. Other customer's requirements
A: Improved process efficiency Localized, constant and precise heating Temperature control Energy saving Possibility of integration into production lines Best quality and yield/performance Pollution free , fast and secure technology Improved working environment
