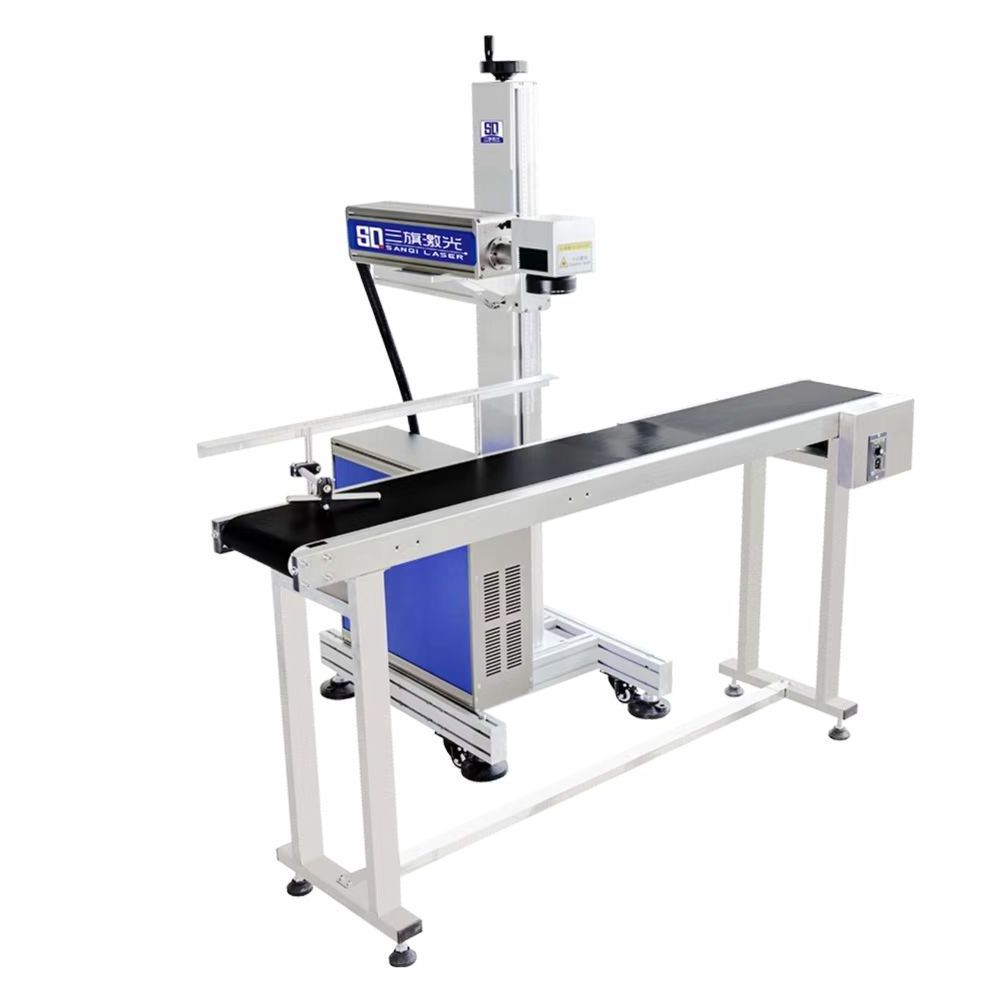

Multifunctional Auto Online Flying 30w Fiber Laser Marking Visual Machine for Zippo Lighter

FOB Reference Price: Get Latest Price

≥1 Sets

US $1450

≥5 Sets

US $1400

≥10 Sets

US $1350

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Cooling Mode:: Air Cooling

Control Software:: EZCAD, JCZ

Place of Origin:: Shandong China

Brand Name:: SANQI

Marking Head Brand:: SANQI

Weight (KG):: 100 KG

Core Components:: laser source

Product name:: Flying Fiber Laser Marking Machine

Laser Power:: 20W /30w/ 50w(Optional)

Applicable Material:: Metal Nonmetal Materials

After-sales Service Provided:: Online Support Video Technical Support

Laser wavelength:: 1064nm

Marking Speed:: 0-7000mm/s

Laser head:: Sino-galvo Laser Head

Quick Details

Working Accuracy:: 0.01mm

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

Laser Type:: Fiber Laser

Cooling Mode:: Air Cooling

Control Software:: EZCAD, JCZ

Place of Origin:: Shandong China

Brand Name:: SANQI

Marking Head Brand:: SANQI

Weight (KG):: 100 KG

Core Components:: laser source

Product name:: Flying Fiber Laser Marking Machine

Laser Power:: 20W /30w/ 50w(Optional)

Applicable Material:: Metal Nonmetal Materials

After-sales Service Provided:: Online Support Video Technical Support

Laser wavelength:: 1064nm

Marking Speed:: 0-7000mm/s

Laser head:: Sino-galvo Laser Head

Product Description

Fiber Fly laser uses the most innovative technology at with active fiber doped with Ytterbium. It is the ideal laser solution for precision laser engraving, marking, micro-machining and cutting of plastic and metal materials. The fiber technology has provided extraordinary leaps in laser technology: The expected laser life provides more than 100,000 hours of marking due to the use of “single emitter” diodes as well as the fully integrated design and construction of the optical components.Flying fiber laser marking machine is the product of combination of fiber laser marking machine and automatic control production line system. It is the ideal laser solution for precision laser engraving, marking, micro-machining and cutting of plastic and metal materials. It can achieve continuous production, The production line speed can reach 2 meters per second (like beverage can reach 28,000 bottles per hour), which is widely used in food packaging, beverage, alcohol, cosmetics, pharmaceutical and other industries.

Technical Parameters

Laser power	20W/30W/50W
Laser Wavelength	1064 nm
Flaser type	Fiber laser
Pulse duration	6-250ns
Laser beam quality M2	<1.2
Repeating precision	±0.002mm
Maximum line speed	2 meters/s (Like beverage can reach 28,000 bottles per hour)
Operating system	Touch screen control system
Marking Area	110mm×110mm，200mm200mm，300mm300mm (optional)
Marking depth	0.01~1mm
Laser source	Max/ Raycus/JPT (Optional)
Marking speed	7000mm/s
Minimum character	0.15mm
Minimum line width	0.01mm
Repeating frequency	20KHz~60KHz
Control Software	Genuine EZCAD control system Compatible with win7/8/10
Control board	BJJCZ
Marking content	Graphics, text, bar codes, two-dimensional code, date, batch number, serial number
Graphic format supported	PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, CDR, DWG, etc.
Working voltage	220V / (50 OR 60 Hz) ,110V / 60Hz
OPerating parameter	0-40℃
Cooling type	Air cooling
Lifespan of laser tube	20000~30000 hours (recyclable)
Service Provided	installation,commissioning and training.Field maintenance and repair service,Video technical support,Engineers available to service machinery overseas
Packing size	1504040 cm

Main Parts

Detail images

Rotation Angle
With the function of manual lifting wheel is basically the same, so that the laser marking machine can adapt to more occasions,
and innovative with this design.This design has advantages in laser marking of large objects, such as automobile glass, galvanized
steel sheet, colored plate, large packing boxes, large plastic pipe etc.

Touch screen controller
With the touch screen controller, not only makes the operation more simple and convenient, but also more robust, higher
integration, longer service life.It is the ideal match of flying laser marking machine.

Applications
