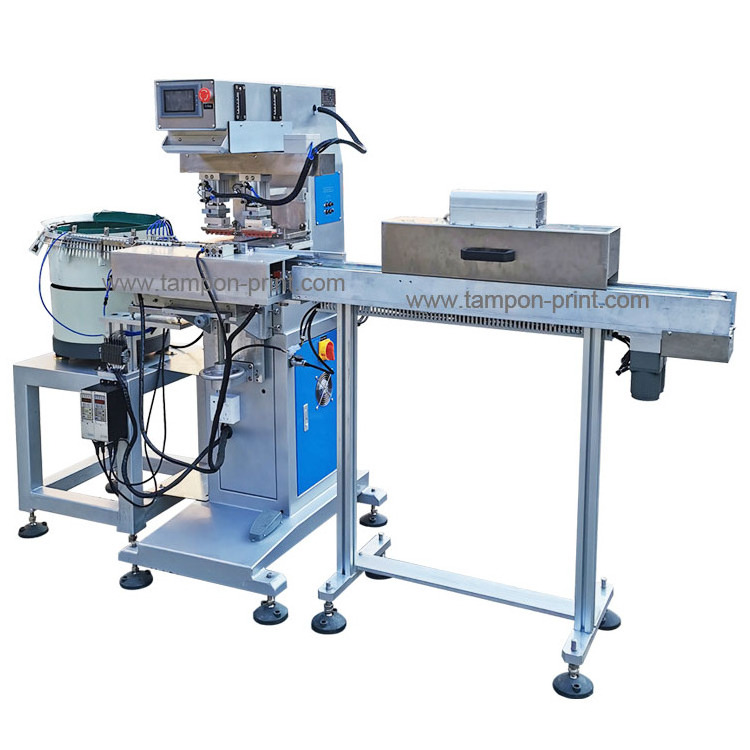

Automatic 2 color golf tees plastic bottle caps silicone tampo pad printing machine

Automatic 2 color golf tees plastic bottle caps silicone tampo pad printing machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $18000

≥3 Sets

US $17500

≥5 Sets

US $16800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimensions(L*W*H):: 2600*800*1550mm

Weight:: 280 KG, 280kg

Model No:: TP-150S2

Printing Colors:: 2

Operation:: Automatic

Ink Cup Size:: dia 100mm

Air pressure:: 6 bar

Max printing speed:: 3000pcs/hr

Steel plate size:: 120*250mm

Dimension:: 2600*800*1550mm

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: TPM

Voltage:: 220V/50HZ, 220V/50Hz

Dimensions(L*W*H):: 2600*800*1550mm

Weight:: 280 KG, 280kg

Model No:: TP-150S2

Printing Colors:: 2

Operation:: Automatic

Ink Cup Size:: dia 100mm

Air pressure:: 6 bar

Max printing speed:: 3000pcs/hr

Steel plate size:: 120*250mm

Dimension:: 2600*800*1550mm

Product Description

Automatic 2 color golf tees plastic bottle caps silicone tampo pad printing machine

1.Pneumatic system for operating accurately.

2. Specially design printing machine for golf tees,can print 6 golf tees at one time.

3.It is with sealed ink cup, can save 60% ink and 90% thinner comparing with open ink tray.

Printing station

Pad Shuttle System, suitable for printing larger products, where the pad will not touch the product during printing

Automatic feeding bowl

Pour many tees into the auto feeding bowl at once, which can automatically load materials and improve printing speed

Touch panel

Touch screen makes machine operation easier and program debugging easier

Fixed fixture channel

The golf tess on the feeding bowl will wait in this channel before printing, and after the tees at the printing station are printed, the material will be automatically loaded

IR dryer conveyor belt

The printed golf tees need to be dried to accelerate ink drying

Printed samples

The effect of printing 2-color golf tees

Feature

*2 colors vibration bowl feeding pad printer.
* PLC+touch screen panel control each function of pad printer for easy operation.
* High quality aluminum alloy is used to make structure solid and weight light.
* Closed ink cup save ink and low smell.
* Duration time is adjustable to meet different requirement.
*Machine can print 6 golf tees at a time.
*Auto golf tees feeding.
*Auto golf tees positioning.
*Auto golf tees IR drying after printing.
*Auto golf tees unloading after printing.

Specification

Model	TP-150S2
Color	2
Operation	Automatic
Steel plate size	120*250mm
Ink cup diameter	dia 100mm
Air pressure	6 bar
Max printing speed	3000pcs/hr
Rated Voltage	220V 50Hz
Dimension(L×W×H)	26008001550mm
Weight	280kg
