Keda River Lake Cleaning Machine Floating Multifunction Dredger

Keda River Lake Cleaning Machine Floating Multifunction Dredger

FOB Reference Price: Get Latest Price

≥1 Sets

US $120000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: KEDA

Dimension(L*W*H):: 21*4.7*1.2M

Weight:: 38000 KG

Product name:: 8 inch Cutter Suction Dredger

Work site:: River Lake Port Coastal Area

Water flow:: 750 M3/h

Discharge distance:: as per customer's request

Diameter discharge pipe:: 8 inch/260mm

Diameter suction pipe:: 10 inch/300mm

After-sales Service Provided:: Engineers available to service machinery overseas, Online Support

Quick Details

Dredging Depth:: 6 m

Draught:: 100 cm

Place of Origin:: Shandong, China

Brand Name:: KEDA

Dimension(L*W*H):: 21*4.7*1.2M

Weight:: 38000 KG

Product name:: 8 inch Cutter Suction Dredger

Work site:: River Lake Port Coastal Area

Water flow:: 750 M3/h

Discharge distance:: as per customer's request

Diameter discharge pipe:: 8 inch/260mm

Diameter suction pipe:: 10 inch/300mm

After-sales Service Provided:: Engineers available to service machinery overseas, Online Support

Product Description

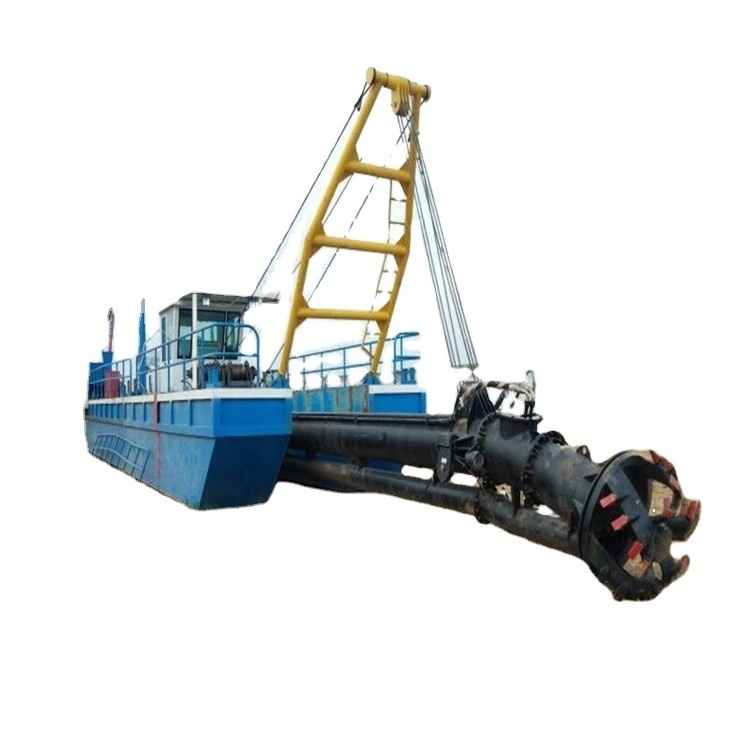

KEDA 8 inch Cutter Suction Dredger -CSD200

Keda cutter suction dredger are stationary dredgers stationary dismountable vessels equipped with a rotating cutter head. These powerful cutter suction dredgers are used in dredging rock, clay, silt and sand. During the dredging works, a spud is lowered in
the seabed to secure the vessel.

The cutter suction dredger moves forward by means of the spud carriage. A cutter suction dredger cuts hard soil into fragments with a rotating cutter head. The cut material together with a large quantity of water is drawn into the suction mouth.

The material is sucked up by dredge pumps and discharged to a deposit area through

pipelines across sea and land. In some cases, split hopper barges moored alongside the cutter suction dredger transport the soil to the deposit area to unload it there.

Product parameters

ITEM	DATA
Model	CD-CSD200
Workload	750m3/h
Dredging Depth	6m
Loa(LWH)	214.71.2m
Suction Diametre	300mm
Discharge Diametre	260mm
Cutter Power	30kw
Main Engine	Cummins/Weituo
Discharge distance	700m
Lift	49m

Our cutter suction dredger can accept customized, non-standard products. If the following parameters cannot meet your needs, please contact us to obtain your exclusive customized solution.

MODEL	Workload	Dredging Depth	Lift	Suction Diametre	Discharge Diametre	Discharge distance
csd150	450m3/h	5m	36m	250mm	200mm	2500m
csd200	750m3/h	6m	49m	300mm	260mm	2000m
csd250	1100m3/h	10m	56m	350mm	300mm	2000m
csd300	2200m3/h	12m	57m	530mm	450mm	1500m
csd350	3000m3/h	12m	58m	540mm	510mm	1100m
csd450	4000m3/h	15m	55m	630mm	560mm	700m
csd500	5000m3/h	16m	62m	700mm	640mm	500m

Details Images

1.Dredger Hull

Name: Dredger Hull
Photon material: Ship steel plate
Structure: Can be dismantle and assemble at working site
Hull quantity: two side hulls and one main hull

2. Power System

Name: Diesel Engine
Brand: World famous CUMMINS brand
Weichai brand or as required
Power: 60-2000Kw
Function: Supply power to the dredger

3. Marine Gear Box

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

4. Sand Pump

Pump Flow: 100-5000m3/h
Sand output: 40-1500m3/h
Material: High chromium alloy Super wearing-resistant
Discharge Distance: 100-2000m
Pump Sealing: Packing seal
