Quick Details
-
Brand Name:
-
Sanyuantang
-
Voltage:
-
380V,50Hz,3phase
-
Weight:
-
5000 KG
-
Product name:
-
gyratory sifter
-
Motor:
-
ABB
-
Material:
-
Carbon Steel/ Stainless Steel 304
-
Layer(s):
-
1-10 Layers
-
Capacity:
-
100Kg-10Tons/hour
-
Color:
-
Customers' Requirements
-
Cleaning system:
-
Bouncing Ball
-
Mesh size:
-
2-200 Mesh
-
Certification:
-
ISO,CE
-
Diameter:
-
2000mm
Quick Details
-
Type:
-
LINEAR
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sanyuantang
-
Voltage:
-
380V,50Hz,3phase
-
Weight:
-
5000 KG
-
Product name:
-
gyratory sifter
-
Motor:
-
ABB
-
Material:
-
Carbon Steel/ Stainless Steel 304
-
Layer(s):
-
1-10 Layers
-
Capacity:
-
100Kg-10Tons/hour
-
Color:
-
Customers' Requirements
-
Cleaning system:
-
Bouncing Ball
-
Mesh size:
-
2-200 Mesh
-
Certification:
-
ISO,CE
-
Diameter:
-
2000mm
Product Overview

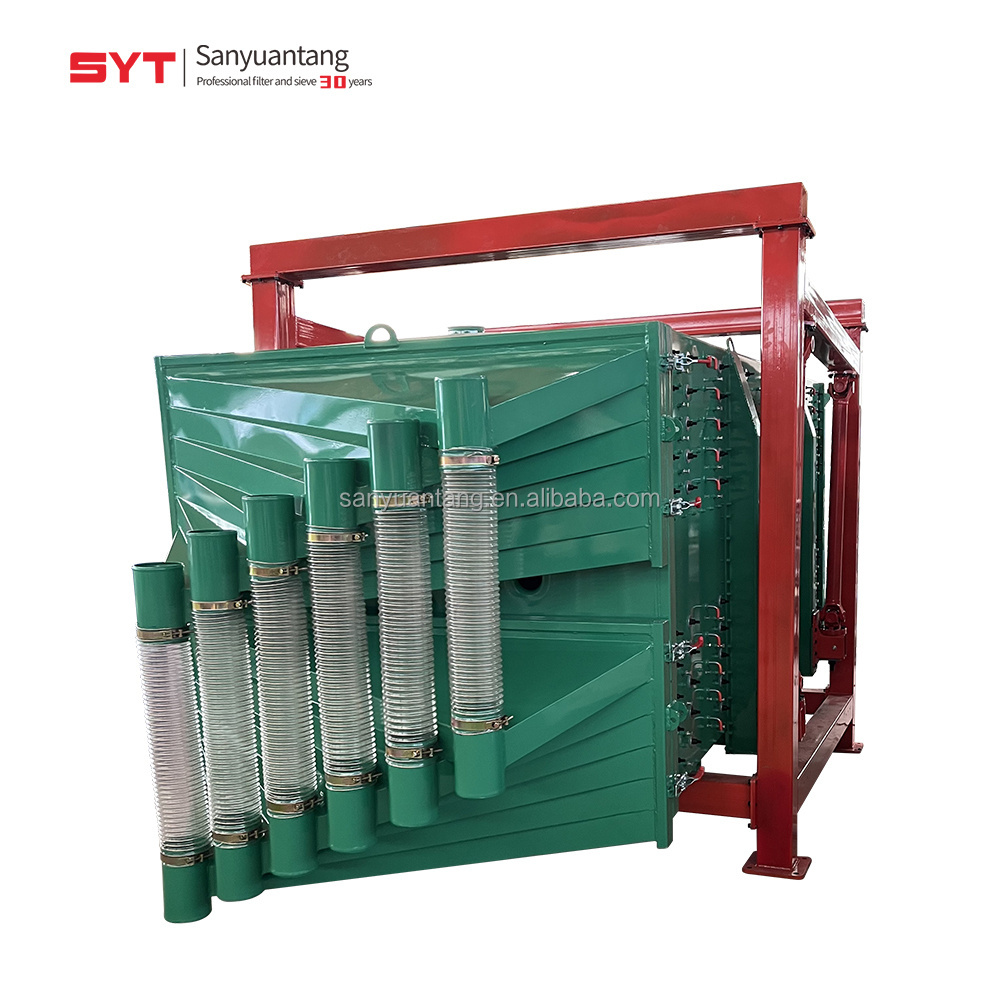

Gyratory sieve sifter machine
Gyratory sieve sifter machine is a high-efficiency screening equipment specially designed for high precision and large capacity output.It is widely used in sand, mining, chemical, non-ferrous metals, food, quartz sand, abrasive and other industry and fields . The screen mesh frame and bouncing balls installation method adopt quick open design and easy to install, so the installation is very convenient. Usually two feed inlet channels available.
The whole sieve box of the vibrating separator is connected by the universal axis, when the sieve machine does the rocking movement, the universal axis also follows the rotation, plays the role of buffering to the rotating power, damping, so that the whole sieve machine runs more smoothly.
The whole sieve box of the vibrating separator is connected by the universal axis, when the sieve machine does the rocking movement, the universal axis also follows the rotation, plays the role of buffering to the rotating power, damping, so that the whole sieve machine runs more smoothly.
FEATURES AT A GLANCE
1, The screen mesh frame and the screen mesh and bouncing balls installation method adopt quick open design and easy to install,5-10 minutes to replace the screen mesh, can be performed from the feed of the machine. Reducing equipment downtime, Increasing production capacity.
2, Diameter 40 mm bouncing balls to clean sieve mesh .
3, Discharge port: The height can be customized .The color is optional.
2, Diameter 40 mm bouncing balls to clean sieve mesh .
3, Discharge port: The height can be customized .The color is optional.
PRODUCT SPECIFICATIONS
|
Model
|
Screen size
|
Screening area
|
Screen inclination
|
Layers
|
Power
|
Number of turns
|
Case travel
|
|
FYBS1536
|
1.5*3.5m
|
4.5-9 m2
|
5-8
|
1-10
|
5.5 KW
|
180-260
|
25-60 mm
|
|
FYBS2040
|
2.0*4.0m
|
8-9 m2
|
5-8
|
1-10
|
7.5 KW
|
180-260
|
25-60 mm
|
APPLICATION FIELD
Abrasive material and ceramic industry:
building sand, mica, alumina, abrasive, refractory material, etc.
Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, etc.
Metallurgy and mining industry: quartz sand,ceramite proppant, Petroleum proppant,ore, meteorite,garnet, etc.
Mechanical industry: casting sand, powder metallurgy, electromagnetic material andmetal powder, etc.
Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, etc.
Metallurgy and mining industry: quartz sand,ceramite proppant, Petroleum proppant,ore, meteorite,garnet, etc.
Mechanical industry: casting sand, powder metallurgy, electromagnetic material andmetal powder, etc.
