Quick Details
-
Flow rate:
-
(5~55) L/min
-
Accuracy:
-
±0.30%
-
Electronic calibration:
-
Available
-
Station management:
-
Available
-
Motor:
-
Single phase, 0.75KW, 220/110V
-
Pump:
-
Tatsuno type gear pump CTP5
-
Flow meter:
-
Tatsuno type Gear pump FM4B
-
Nozzle:
-
OPW type TD-20A, 3/4 inch
-
Ambient Temperature:
-
-35℃~+55℃
-
Humidity:
-
≤95%
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Bluesky
-
Model Number:
-
RT-WY222
-
Flow rate:
-
(5~55) L/min
-
Accuracy:
-
±0.30%
-
Electronic calibration:
-
Available
-
Station management:
-
Available
-
Motor:
-
Single phase, 0.75KW, 220/110V
-
Pump:
-
Tatsuno type gear pump CTP5
-
Flow meter:
-
Tatsuno type Gear pump FM4B
-
Nozzle:
-
OPW type TD-20A, 3/4 inch
-
Ambient Temperature:
-
-35℃~+55℃
-
Humidity:
-
≤95%

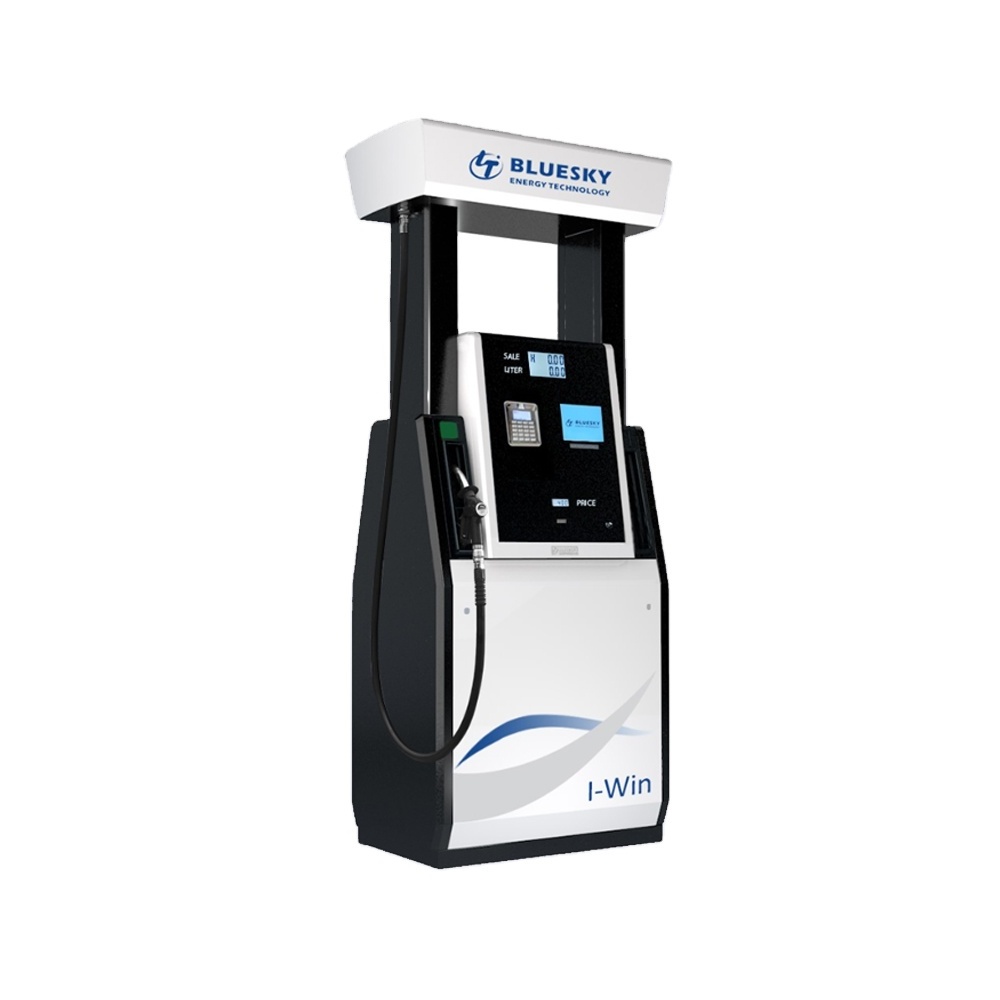

High Quality Gilbarco Type Fuel Dispenser Pump for Gas Station
Model available for 1 nozzle, 2 nozzle, 4 nozzle, 6 nozzle, 8 nozzle
Tatsuno type Pump / Tokheim type Pump / Bennett type Pump
Both suction and submersible
- 100% tested before shipping
- One year warranty and guarantee
- Certificate with MID,PCEC,etc
- Hot selling in South America
- Factory direct selling
One controller control 8 nozzle, support remote upgrading, available with Tatsuno POS, Postec POS and ITL POS
Flow Meter
4X volumic flow meter, tatsuno type with pulser covered on the top
|
Accuracy |
±0.30% |
||
|
Repeating Accuracy |
≤0.10% |
||
|
Flow range |
(5~55) L/min |
||
|
Maximum head |
5m |
||
|
Inlet Vacuum |
≥54kPa |
||
|
Outlet Vacuum |
≤0.3MPa |
||
|
Work pressure |
<300 kPa |
||
|
Noise |
≤70dB(A class) |
||
|
Unit price range |
0~9999, 0~999999 (changeable) |
||
| Single range | 1~9999.99,1~999999.99 (changeable) | ||
| Accumulative range | 0~9999999999.99 | ||
| Input hose diameter | 38mm | ||
| Oil hose diameter | 19mm | ||
| Explosin-Proof motor power | 750W(or 1000W) | ||
| Ambient Temperature | -35℃~+55℃ | ||
| Humidity | ≤95% | ||
| Atmospheric Pressure | 86kPa~106kPa | ||
| Power(optional) | AC110V±20%, AC220V±20% , AC380V±20% (50Hz) | ||
