Quick Details
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
900mmx 900mmx2900mm
-
Motor Power (kW):
-
15
-
Model Number:
-
JH21-160
-
Weight (T):
-
5
-
Warranty:
-
2 Years
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, United States, Philippines, Pakistan, Thailand, Kenya, Colombia, South Africa, Uzbekistan
-
Weight:
-
5
-
Certification:
-
CE ISO, CE
-
Product name:
-
Four Column Hydraulic Press
-
Keyword:
-
pneumatic press punching machine
-
Application:
-
Metal Sheet Stamping
-
Item:
-
JH21-45
-
Nominal Force:
-
200kn/300kn/500kn
-
Capacity:
-
20-25pcs/min(25-30mm Globular)
-
Power(W):
-
5.5kw
-
Nominal Force (kN):
-
450 kN
Quick Details
-
Slide Stroke (mm):
-
100
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
AOXUAN
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
900mmx 900mmx2900mm
-
Motor Power (kW):
-
15
-
Model Number:
-
JH21-160
-
Weight (T):
-
5
-
Warranty:
-
2 Years
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, United States, Philippines, Pakistan, Thailand, Kenya, Colombia, South Africa, Uzbekistan
-
Weight:
-
5
-
Certification:
-
CE ISO, CE
-
Product name:
-
Four Column Hydraulic Press
-
Keyword:
-
pneumatic press punching machine
-
Application:
-
Metal Sheet Stamping
-
Item:
-
JH21-45
-
Nominal Force:
-
200kn/300kn/500kn
-
Capacity:
-
20-25pcs/min(25-30mm Globular)
-
Power(W):
-
5.5kw
-
Nominal Force (kN):
-
450 kN

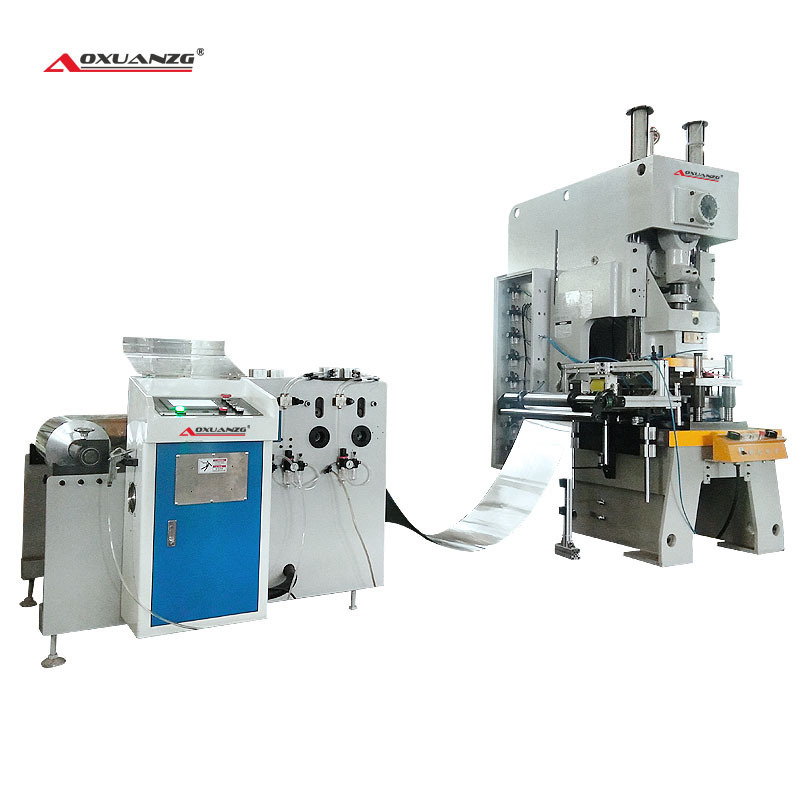

45 T pneumatic press machine Aluminum foil lunch box production line
Pneumatic press punching machine for aluminium profile
-
# Welded body with steel plate and high intensity.
# Main motor is made by Siemens.
# Adopts combined pneumatic friction clutch and brake.
# Cluster gear adopts the flooding oil lubrication.
# Six-face rectangle lengthen guide; JH21-315B/400B adopts eight-face lengthen guideway.
# Equipped with hydraulic overload protecting device.
# JH21-25/25B/45 adopts manual shut height adjustment, among these types JH21-25/45 adopts scale display and JH21-25B with digital display.JH21-63 and above type adopts electric shut height adjustment with digital display.
# JH21-45 can equip with die set height adjustment motor, the value will be displayed by digital.
# JH21-25B, JH21-45 and above type equipped with balance cylinder.
# Duplex valves imported.
# Electric compelling grease lubrication system.
# Balancing cylinder adopts manual lubrication system.
# One set of blowing device.
# Controlled by PLC with international brand.
# Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.
Standard Execution:
Heavy, one-piece welded steel frame is designed to resist deflection, providing more accurate stampings and longer die life.
Fast-response hydraulic overload relieves the pressure of a tonnage overload in milliseconds, stopping the press immediately and protecting press and dies from damage.
Wet clutch and brake provide long life, very low maintenance, and high performance even at high single-stroking rates.
•JIS I accuracy.v
•Steel welded frame with high rigidity.
•Motor with inverter.
•Combined wet friction clutch.
•Rectangular hexahedral lengthened guide; OCP-315/400 with octahedral lengthened guide.
•Hydraulic overload protector.
•Lifting balance cylinder.
•Imported dual solenoid valve.
•Elec.forced grease lubrication.
•Balance cylinder: manual oil lubrication.
•Integrated panel (elec.cam included).
•PLC control of international brand.
•Contactor and button of international brand.
•CE safety specifications
•Optional: air cushion, light curtain, automotive device..
ESTUN PLC CONTROLLER
DIGITAL DIE HEIGHT
CNP PUMP
High torque low noise wet clutch ,we use the best seals ,bearing friction discs ,the wet cultch features lower noise and longer service life
Air tank
Light curtain protection
ELECTRIC CABINET
OPERATION BUTTONS
Double valve / made in Japn
overload protection / made in Japan
Sandard packing or wooden box packing as customer request
We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.
And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.
2.What's your main product and what is your main foreign market?
Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.
Our main foreign market are Asia, North America, Europe, Africa.
3. what are the advantages of your machines?And how can i believe the quality of your product?
The main configuration is to import quality products, and Professional product quality inspection team ensure machine in
top-quality, precision and life.
For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.
Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.
4. And are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.
5. Can we be your agent?
Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical
problem or other after-sales problem, meanwhile ,you can get big discount and commission.
6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.
7.Are you provide product metal parts and provide us technical guidance?
Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go
abroad to provide you with technical guidance.
8. How long is your warranty?
12 months free warranty, life-long maintenance.
9.Do you accept customer Logo and customized ?
we accept kinds of customized ,including logo and machine .
