Quick Details
-
Brand Name:
-
WNK
-
Model Number:
-
WNKSPS
-
Max. Current:
-
1.0A
-
Max. Working Pressure:
-
60MPa
-
Pressure range:
-
-100KPa~60MPa
-
Output signal:
-
4-20mA, RS485
-
Accuracy:
-
0.5%F.S
-
Supply voltage:
-
12-30V DC
-
Switch type:
-
NO/NC
-
Applicable media:
-
Liquid, Gas, Steam
-
Pressure measurment:
-
Gauge Pressure, Absolute pressure
-
Keywords:
-
Digital Pressure Switch/ Adjustable Pressure Switch
-
Housing material:
-
304 stainless steel
-
Protection class:
-
IP65
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
30V DC
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WNK
-
Model Number:
-
WNKSPS
-
Max. Current:
-
1.0A
-
Max. Working Pressure:
-
60MPa
-
Pressure range:
-
-100KPa~60MPa
-
Output signal:
-
4-20mA, RS485
-
Accuracy:
-
0.5%F.S
-
Supply voltage:
-
12-30V DC
-
Switch type:
-
NO/NC
-
Applicable media:
-
Liquid, Gas, Steam
-
Pressure measurment:
-
Gauge Pressure, Absolute pressure
-
Keywords:
-
Digital Pressure Switch/ Adjustable Pressure Switch
-
Housing material:
-
304 stainless steel
-
Protection class:
-
IP65

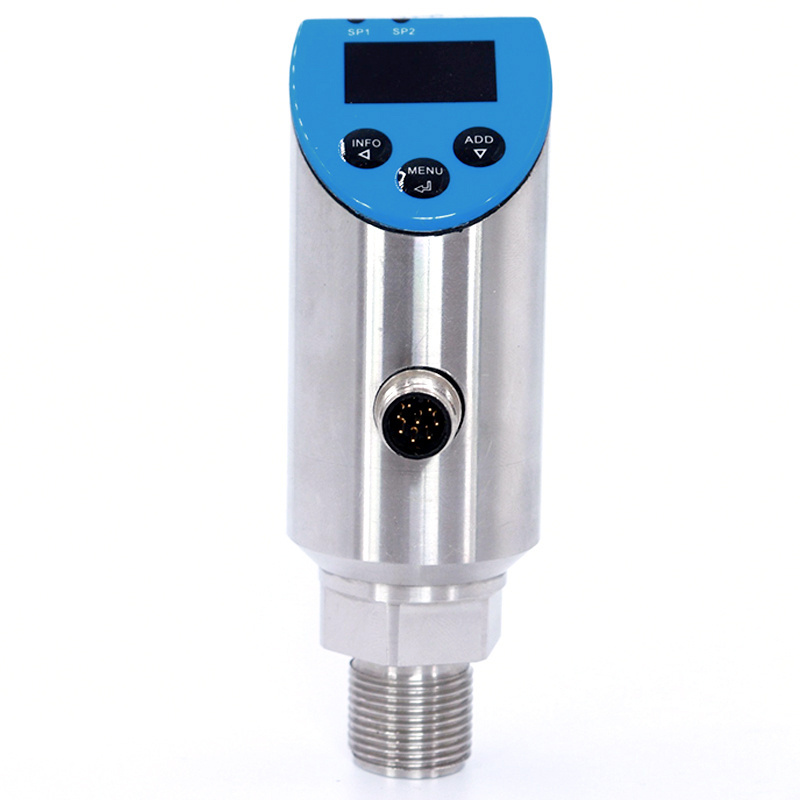

Introduction - Smart SST Electronic Pressure Switch for Water Pump, Compressor
The pressure switch SPS is designed for pressure monitoring and measure-ment in liquid and gaseous media. The SPS is suited for general industrial applications such as machine and plant engineering, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one and the same device. In its standard configuration it has two switching outputs (PNP or NPN). In addition, there are configurations available with an analog output signal (0...20mA| 420 mA or 0...5V| 010 V) as well as with RS485 Link.
Product Features - SPS Intelligent Electronic Pressure Switch with OLED Display
1
. Smart type, with PNP/NPN switching.
2. Swithing points settable, NO/NC availalbe
3. With OLED display, with 5 digit available.
4. Provide RS485 communication for option.
