Quick Details
-
Weight:
-
3400 kg
-
Dimension(L*W*H):
-
According request
-
Product name:
-
Concrete Mixer Truck Drum
-
Keywords:
-
Cement Mixing Machine
-
Type:
-
Loading Concrete Truck Drum Mixer
-
Power type:
-
Diesel Engine Gasoline Optional
-
Capacity:
-
1.5m3-12m3
-
Axis Inclination Angle:
-
15°
-
Charging Speed:
-
3m³/min
-
Discharging Speed:
-
2m³/min
-
Discharging Residual Rate:
-
≤0.5%
-
Color and LOGO:
-
As customer request
Quick Details
-
Marketing Type:
-
Popular Using Concrete Mixer Drum
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Spark
-
Weight:
-
3400 kg
-
Dimension(L*W*H):
-
According request
-
Product name:
-
Concrete Mixer Truck Drum
-
Keywords:
-
Cement Mixing Machine
-
Type:
-
Loading Concrete Truck Drum Mixer
-
Power type:
-
Diesel Engine Gasoline Optional
-
Capacity:
-
1.5m3-12m3
-
Axis Inclination Angle:
-
15°
-
Charging Speed:
-
3m³/min
-
Discharging Speed:
-
2m³/min
-
Discharging Residual Rate:
-
≤0.5%
-
Color and LOGO:
-
As customer request

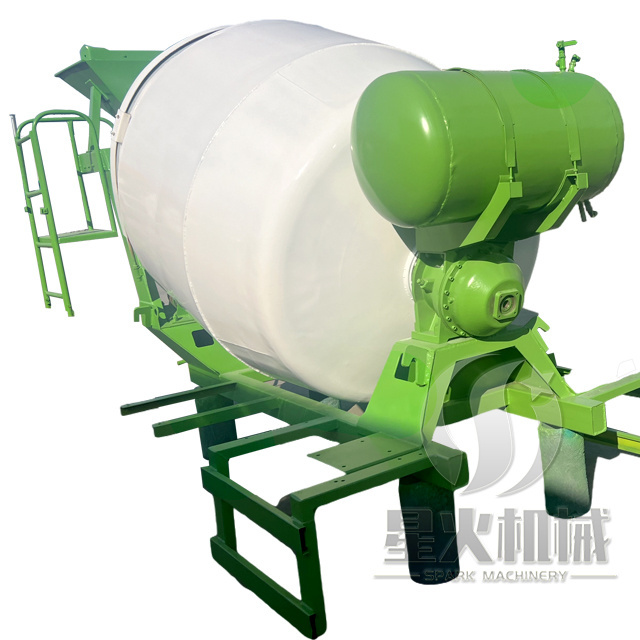

Product Overview
Gasoline engine, diesel engine concrete mixer drum design concrete truck mixer drum price long lifetime concrete mixer drum
The mixer drum is either driven by the truck engine or by a separate power take off device.
It mixes material by itself or be mounted on truck to use as a concrete mixer truck.When the concrete drum rotates clockwise, the concrete is stirred, and when it is rotated counterclockwise,the concrete is discharged.
PRODUCT SPECIFICATIONS
|
Model
|
2m3
|
3m3
|
4m3
|
5m3
|
6m3
|
8m3
|
10m3
|
|
Drum load volume
|
2m3
|
3m3
|
4m3
|
5m3
|
6m3
|
8m3
|
10m3
|
|
Filling ratio
|
67%
|
67%
|
67%
|
67%
|
67%
|
67%
|
67%
|
|
Surplus
|
1%
|
1%
|
1%
|
1%
|
1%
|
1%
|
1%
|
|
Drum speed
|
0-21rpm
|
0-21rpm
|
0-20 rpm
|
0-18 rpm
|
0-18 rpm
|
0-18 rpm
|
0-18 rpm
|
|
Drum inclination
|
15
|
15
|
15
|
15
|
15
|
14
|
13
|
|
Water tank volume
|
200L
|
300L
|
300L
|
400L
|
400L
|
500L
|
500L
|
|
Form of water supply
|
Pressure air
|
Pressure air
|
Pressure air
|
Pressure air
|
Pressure air
|
Pressure air
|
Pressure air
|
|
Radiator
|
18L
|
18L
|
18L
|
18L
|
18L
|
18L
|
18L
|
Equipped with Germany Rexroth reducer, quality assurance, stable function, It can meet the needs of motor and stirring speed. Long service life.
All Material of the steel we choose standard steel, with the certification and MTA, can ensure the material good quality and machine long life time.
Front cover of the mixer drum we using 8mm thickness steel, it have a long life time
Main Body of concrete mixer drum we using 6mm thickness steel, ensure it's long using
Feeding inlet and discharging outlet with reasonable design, fasterfeeding and discharging, easy operation.
Discharging hopper support device, a reasonable angle for concrete quickly and smoothly discharge.strong bearing capacity and great anti-knock effects.
18L hydraulic oil cooling system, ensure all the hydraulic oil at good situation working
High Pressure water for add to the concrete or to cleaning the machine
SIMILAR PRODUCTS
With Diesel/Gasoline Generator
With Diesel/Gasoline Engine
With Electric Motor
SUCCESSFUL PROJECT
FAQ
Q1: How about the price?
A: We are factory, not dealer, so we can give you a lower price than those trade companies can.
Q2: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-saleservice team to promptly and thoroughly solve your problems.
Q3: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation,adjustment, and operation training. All of our engineers have passports.
Q4: How long is your delivery time
A: Generally it is around 7 days if the goods in stock. lf there is no goods in stock. it will be about 20 days, subject to the quantity you ordered.
Q5: What is your acceptable payment terms.A: By T/T. 30% deposit in advance, balance to be paid before delivery. or By irrocable LC at Sight.
