Quick Details
-
Brand Name:
-
-
-
Model Number:
-
6J80T
-
Transmission model:
-
6J80T
-
Input Torque:
-
800 Nm
-
Input Power:
-
147 KW
-
Length:
-
722 mm
-
Center distance:
-
148mm
-
Oil capacity:
-
8L
-
Weight:
-
210kg
-
Manipulative form:
-
Single-lever and double-lever operation possible
-
Ratio:
-
0.83-8.03
Quick Details
-
OE NO.:
-
6J80T
-
Size:
-
100*65*70 cm
-
Place of Origin:
-
China
-
Brand Name:
-
-
-
Model Number:
-
6J80T
-
Transmission model:
-
6J80T
-
Input Torque:
-
800 Nm
-
Input Power:
-
147 KW
-
Length:
-
722 mm
-
Center distance:
-
148mm
-
Oil capacity:
-
8L
-
Weight:
-
210kg
-
Manipulative form:
-
Single-lever and double-lever operation possible
-
Ratio:
-
0.83-8.03
Click the Figure Below to Start Consultation
Products Description

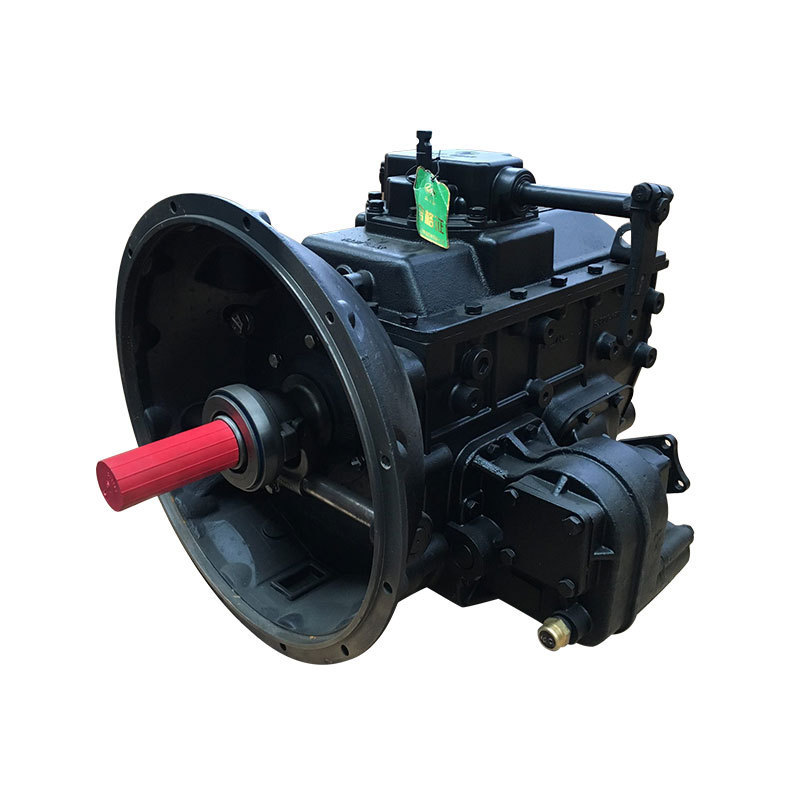

FAST 6J80T
transmission has 6 forward gears, the gear ratio steps are arranged reasonably, and has very outstanding fuel economy performance.
With mechanical structure design and integrated with a synchronizer, the input power of the 6J80T transmission can reach up to
136KW to 155KW
, and the maximum input speed is
2600RPM
. The length of the 6J80T transmission is
721.5mm
.
The 6J80T manual transmission has 6 gears, and each gear has a different reduction ratio. The reduction ratio of 1st gear is 8.050, 2nd gear is 4.532, 3rd gear is 2.644, 4th gear is 1.668, 5th gear is 1.000, 6th gear is 0.831, and the reverse gear ratio is 8.060. The 6J80T manual transmission has an input torque range of
750 to 850N.m
.
FAST 6-speed MT series
transmission have different models, with code J in the model name means mechanical transmission, with code T in the model name means transmission integrated with synchronizer.
|
Transmission Model
|
6J80T
|
|
Input Torque
|
800 Nm
|
|
Input Power
|
147 KW
|
|
Rated Input Rotation
|
2600 RPM
|
|
Length
|
722 mm
|
|
Center distance
|
148mm
|
|
Oil capacity
|
8L
|
|
Weight
|
210kg
|
|
Head gear ratio
|
8.05
|
|
2 gear ratio
|
4.52
|
|
3 gear ratio
|
2.66
|
|
4 gear ratio
|
1.66
|
|
5 gear ratio
|
1
|
|
6 gear ratio
|
0.83
|
|
Reverse gear 1 transmission ratio
|
8.05
|
|
Manipulative form
|
Single-lever and double-lever operation possible
|
|
Applicable vehicle models
|
Applicable to various types of trucks, passenger cars, special vehicles, etc.
|
Fast Transmission Manipulate advantage:
1.
Single counter shaft, full synchronizer structure;
2.
The 1/2 gear and the 3/4 gear adopt double cone synchronizer, which has a large synchronization capacity and is flexible and light in gear shifting;
3.
Helical gear transmission, large bearing capacity, low noise and long service life;
4
. Small center distance, small size and light weight;
5.
It can be equipped with side power take-off to meet the needs of vehicle modification.
Recommend Products
Gearbox & Truck parts
Yongliwei Sale Gearboxes No.
The following are some models, which are constantly being updated. If the required model is not in the table, please consult us. Transmission, retarder, power take-off, booster, transfer case and its parts are also sold.
FAQ
Q1: Are your products will be same which I receive compare with your photos on Alibaba?
A: For most products YES; but for some products, it will be changed without notice when factory changes its design, the mark, product origin, even the part number.
So please be known it is possible if you receive the goods with different part number or package. All the parts are sold referring to the part number.
The picture on ALIBABA is only for your reference.
Q2: What is your terms of payment? How about your delivery time?
A: For stocked products in our warehouse, T/T 100% as deposit;
Delivery time: about 2-7 days. For unstocked products, T/T 30% deposit, the balance 70% before delivery;
Delivery time: around 45-60 days. For some special parts ,we may increase the deposit.
Q3: What is your terms of delivery?
A: EXW, FOB more for us, any terms are acceptable if you have special requirement.
Q4: Which gearboxes assembly and parts do you working on?
A: Gearboxes assembly and its parts, gears, synchronizer, PTO, gearbox housing, bearings, main shaft, input shaft, top cover, sensors, wireness, repair kits, switches ...
Q5: Which series gearbox parts are your advantages?
A: Gearboxes assembly and gearboxes parts covers:
5S 5HP 6S 6AP 6AS 6HP S6 9S 9AS 12AS 12TX 16S, ETA, 6DS 9JS, TV211, VT2214, DT, DF6S, QJS6, DC,, HC, CA5, CA6, 5T, HW907
...
Q6: How can I find the parts that I need?
A: Please provide us photo of your needed gearbox parts or tell us parts number of gearbox part.
