Quick Details
-
Model Number:
-
ESKO knife BLD-SR6310
-
Product Name:
-

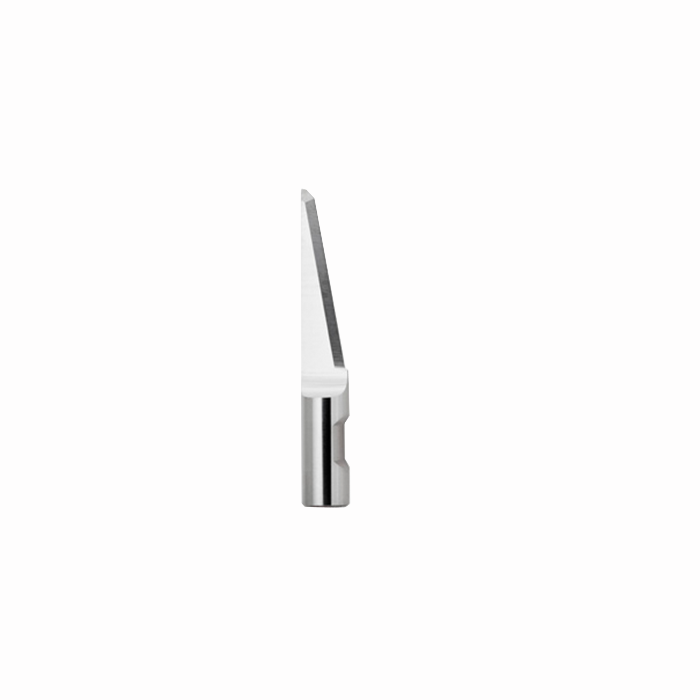

ESKO CUTTER BLADE BLD-SR6310
-
Material:
-
Tungsten Carbide
-
Grade:
-
YG10X
-
Hardness:
-
HRA89-HRA92.9
-
Size:
-
D6*39MM
-
Edge:
-
Single
-
Application:
-
Carpet materials, rubber backing, Corrugated plastic
-
Feature:
-
Loger lifetime
-
Other models:
-
BLD-SR6303, BLD-DR8180 etc.
-
Shipping:
-
TNT/DHL/UPS/FEDEX etc.
Quick Details
-
Warranty:
-
3 months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KENNY
-
Model Number:
-
ESKO knife BLD-SR6310
-
Product Name:
-
ESKO CUTTER BLADE BLD-SR6310
-
Material:
-
Tungsten Carbide
-
Grade:
-
YG10X
-
Hardness:
-
HRA89-HRA92.9
-
Size:
-
D6*39MM
-
Edge:
-
Single
-
Application:
-
Carpet materials, rubber backing, Corrugated plastic
-
Feature:
-
Loger lifetime
-
Other models:
-
BLD-SR6303, BLD-DR8180 etc.
-
Shipping:
-
TNT/DHL/UPS/FEDEX etc.
KENNY OEM ODM ESKO Kongsberg BLD-SR6212 6310 8160 Different Gasket Materials Cutter For Forex And Solid Carton Board knife blade
The material the blades are made from tungsten carbide.Carbide blades have a significantly higher life expectancy than high speed steel blades. Greater productivity thanks to fewer blade changes.And better cutting quality thanks to the blade‘s precision finish and very high stability.
Our blade advantages:
*An excellent cutting result
*Low levels of waste/scrap
*Higher capacity utilization and shorter order times thanks to fewer blade changes
*We use only high performance materials
* Our quality remains constant
We can make tungsten carbide rotary blade,drag blades, oscillating blades to cut Leather,
Nylon,Felt,Nonwoven,Fabric,Textile,Foam,Fibre.....
Recommended use:Tungsten carbide blade for thinner flexible or rigid materials such as solid carton, vinyl, plastics. 2x30* cutting angle. Spear-headed shape
| Material | Sub Category | Thickness | Method |
| Adhesive (decal) vinyl | Adhesive (decal) vinyl | Standard thickness | Through |
| Corrugated plastic | Corrugated plastic | < 5mm | Static |
| Flexible plastic sheet | Flexible plastic sheet | < 2mm | Static |
| Foam board soft (PUR) | Foam board soft (PUR) | < 5mm | Static |
| Foamed PVC / PS | Foamed PVC / PS (Forex®, Sintra®) | < 5mm | Static |
| Folding carton | Folding carton | Folding carton | Static |
| Lenticular display panels | Lenticular display panels | < 5mm | Static |
| Magnetic foil | Magnetic foil | Magnetic foil | Static |
| Solid board | Display board | 3mm | Static |
| Specifications |
D Shank diameter 6mm
C Maximum cutting thickness 5mm - 3/16" |
||
| Dimensions | 0.6 x 0.6 x 2.5 cm | ||
| Weight | 0.007 kg | ||
Nanjing Kenny Machine Blade Co. Ltd is located in Nanjing Jiangsu province, concentrates on the production of high quality industrial knives more than 15 years. The company mainly produces square, round, irregular blades, minimum thickness is 0.08mm, those blades are mainly used in industries of film, printing, textile, fabric, chemical fiber, fibreglass, packaging, corrugated paper, lithium batteries separator ,clothing, leather, foil, foam, cigarette filter, tobacco etc. 40% of the products are exported to all over the world, those are favored and welcomed by equipment manufacturers and distributors from Germany, Japan, the United States and etc.We can make blades according to your requirements, such as the material, the size and tolerances (parallelism, flatness, concentricity). Welcome to send us your inquiry or visit us directly.
Q1:Can I get samples before my order ?
A:We provide free samples to every customer. But, we need to freight collect or freight prepaid.
Q2:How long it will be to get samples?
A:For stocked blades, it only one day for sending your sample. For customized blade drawing, it may be within 15-25 days.
Q3:What is the delivery time if I place my order?
A:It depends on the complexity of the blade, or the quantity you ordered.
If it is our standard project, we will only need 3-5 working days to send out your goods.
If you have an urgent deadline, we will see what we can do.
Q4:Can I put my LOGO on the product?
A:Yes, you can. Your LOGO can be put on the product by laser marking.
Q5:Is it possible to get my customized packaging?
A:Yes, of course. Please feel free to let us know your specific requirements.
